• Model NO.：ZSW420*110
• Color：Cream
• Transport Package：Rustproof and Moisture Proof
• Specification：4392*2519*2003mm
• Trademark：ATAIRAC
• Origin：China
• Production Capacity：60sets,Manth

Basic Info.

Model NO. ZSW420*110 Color Cream Transport Package Rustproof and Moisture Proof Specification 4392*2519*2003mm Trademark ATAIRAC Origin China Production Capacity 60sets/Manth

Product Description

Widely used in delivering all the hard material and corrosive material evenly to the crusher.



Product Description

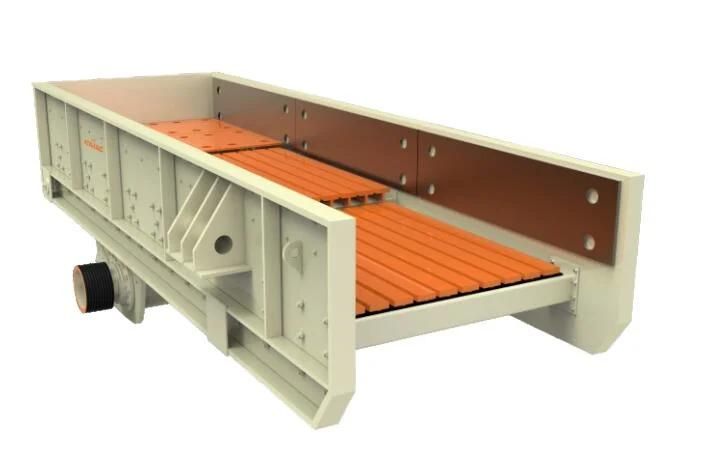

ZSW series vibrating feeder is designed based on principle that spinning of eccentric shaft producing vibrating force. It is a preferred device for the fixed and movable project owing to the performance of high feeding capacity, high screen capacity and strong frame.
Product Features
1. Feeder body and bearing are designed and manufactured to the heavy duty operation requirement. Features in high feeding capacity, impact resistance, wear resistance and high efficiency.
2. Universal joint direct-driver character in a normal operation speed between 960 and 980r/min which is with a wider range frequency conversion for various applications.
3. Isolation of lubrication between gear and bearing.
4. Adopt steel spring support and vibration isolation, smooth operation and start-stop, low noise, long life, can withstand greater impact loads.
5. Adjustable-speed motor is optional which can control the feeding capacity without frequently starting motor.
6.Various feeding screen are available, such as bar feeding, horseshoe feeding, steel with hole feeding, and second screen deck is optional.

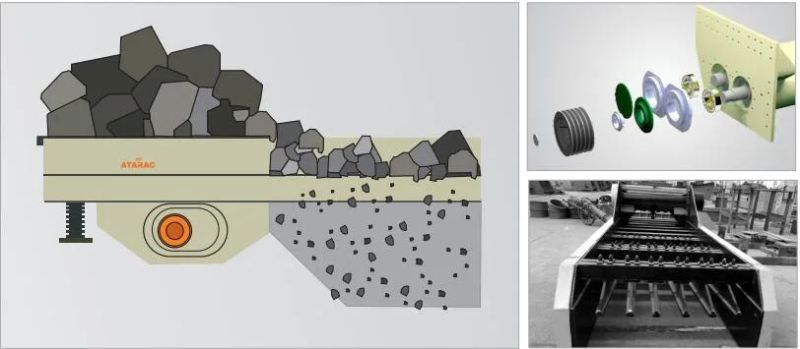

Remarks: Pictures above showing up and down

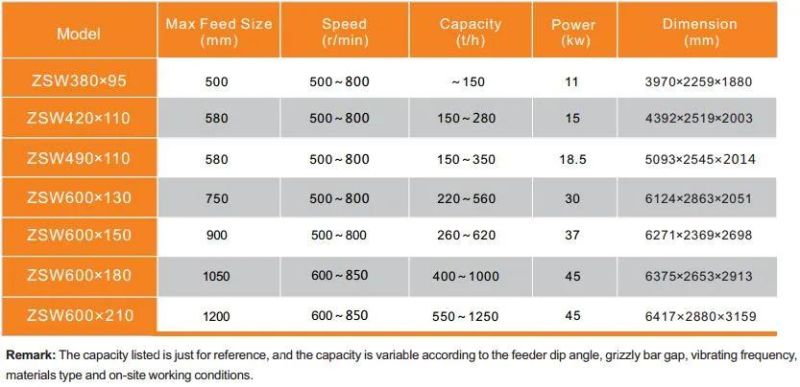

Technical Parameter



Company Introduction


Training and Service:



Warranty
100% brand new when leaving the factory. The seller guarantee quality of the machines  (excluding wearing parts)for a period of one year from the date of trial run finish under our technician's guidence, but not exceed 15 months from date on which machine leaves the factory.
