• Certification：CE
• Transport Package：Wooden Package or Nude Package
• Trademark：BESTLINK
• Origin：Fujian
• Production Capacity：80 Sets,Month

Basic Info.

Certification CE Transport Package Wooden Package or Nude Package Trademark BESTLINK Origin Fujian Production Capacity 80 Sets/Month

Product Description

Quarry Cutting Machine, Double Blade Cutter, Granite Double Blade Cutting Machinery, Marble Double Cutting Equipment, Stone Quarrying Machine, Mining Machine with High Efficiency

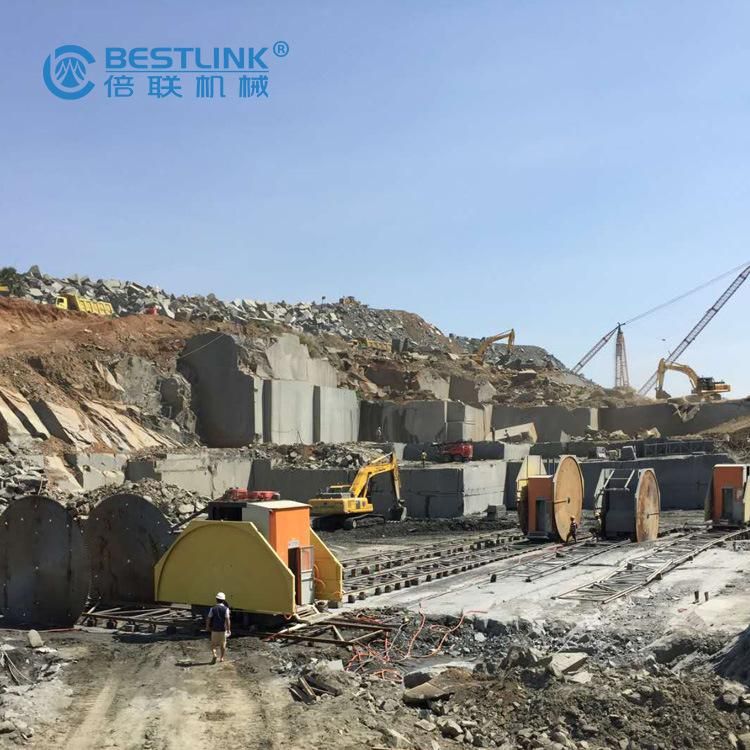

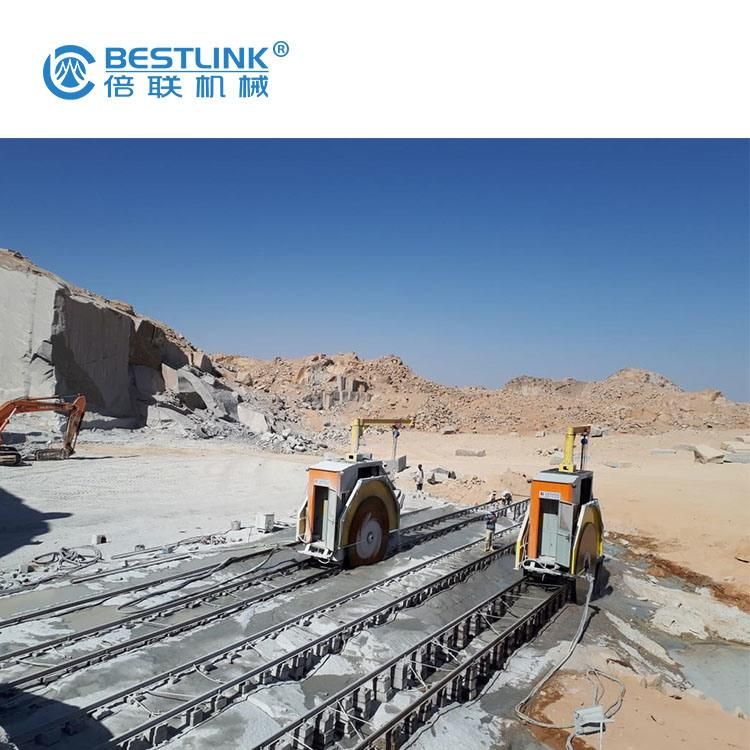

This kind of saw machine is special for over-sized quarrying which materials are quality and uniform, it's the most economical method to extract the dimensional blocks from quarry, suitable for granite, marble and sand stone quarries. Advantage: stable performance, convenient operation, better shape, less quarrying dust and waste stock debris, safety, protect environment, high efficiency, save mining cost, increase output and recovery.

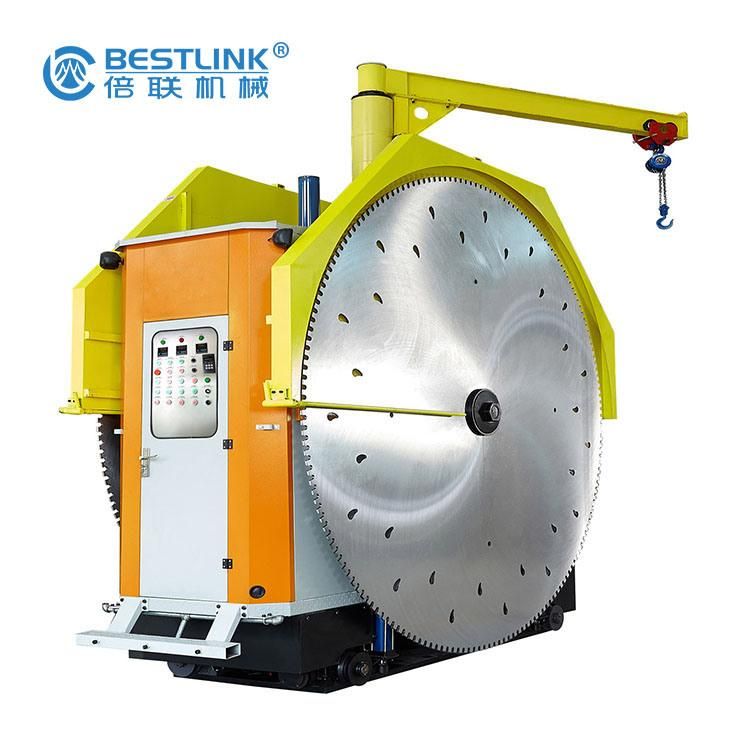

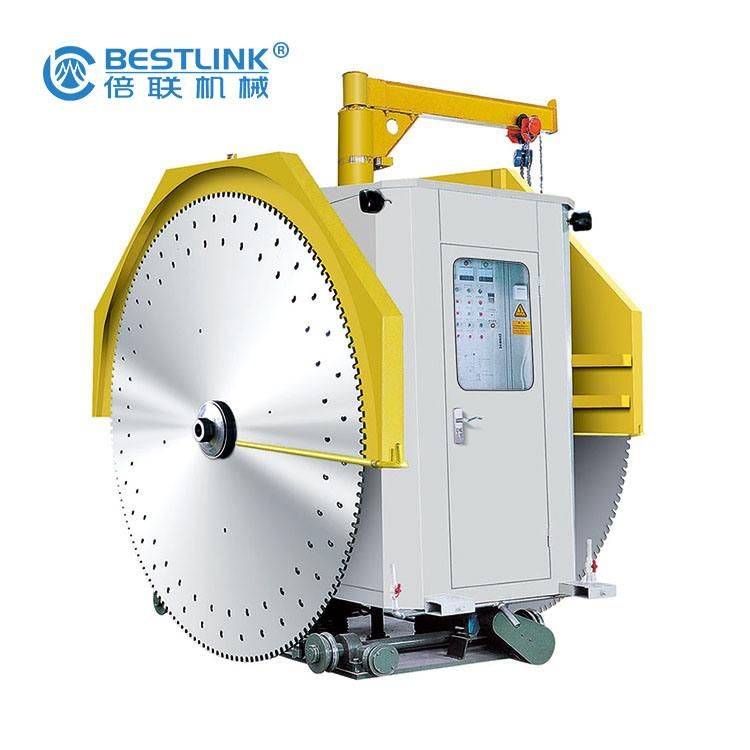

Double-blade Mining Machine (Essentials model)

Structure Characteristics:



1.It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.

2.The cylindrical guide rail is fully sealed to ensure that the guide rail id pollution-free and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.

3.Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer service life.

4.Equipped with supergiant saw blades, it can be used for the processing of ultra-large rocks and blocks to improve outturn percentage of the mine and make full use of the mineral resource.

5.Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.

Technical Date:	unit	SCE-1360/1900	SCE-1500/2000	SCE-1950/2450	SCE-2600/3100
Diameter of blade	mm	Φ2200*2-Φ3600*2	Φ2200*2-Φ3600*2	Φ2200*2-Φ4800*2	Φ2200*2-Φ4800*2
scope of cutting depth	mm	850-1550	850-1550	1050-2250	1050-2250
Scope of cutting width	mm	1360-1900	1500-2000	1950-2450	2600-3100
Water consumption	m3/h	5	5	5	5
Power of main-drive	kw	45*2	45*2	45*2/55*2	45*2/55*2
Total power	kw	98.5	98.5	98.5/118.5	98.5/118.5
Center distance of rail	mm	1140	1290	1670	2200
Overall dimension(L*w*H)	mm	3550*1450*2850	3550*1600*2850	5200*2100*3600	5200*2700*3600
Approximate weight	kg	7500-8500	7500-8500	10000-110000	11000-12000



Double-blade Mining Machine (with all-wheel-drive walking system)

Structure Characteristics:



1.This machine adopts the new all-wheel-drive walking mechanism, don't need daily maintenance.

2.Solve the chain rupture problem of the traditional chain drive.

3.Sharply reduce the cost of the cutting segments, reduce the power consumption.

4.The spindle box directly connect with the motor instead of a belt connection ,Play to maximize the effective power of the motor.

5.With technology of Siemens, tracking automatically by Microcomputer, Automatic deceleration when motor overload or the cutting blade is nipped, prevent burning the main motor, improve the main motor's life and production.



Technical Date:	unit	SCL-1360/1900	SCL-1500/2000	SCL-1950/2450	SCL-2600/3100
Diameter of blade	mm	Φ2200*2-Φ3600*2	Φ2200*2-Φ3600*2	Φ2200*2-Φ4800*2	Φ2200*2-Φ4800*2
scope of cutting depth	mm	850-1550	850-1550	1050-2250	1050-2250
Scope of cutting width	mm	1360-1900	1500-2000	1950-2450	2600-3100
Water consumption	m3/h	5	5	5	5
Power of main-drive	kw	55*2	55*2	55*2	55*2
Total power	kw	118.5	118.5	118.5	118.5
Center distance of rail	mm	1140	1290	1670	2200
Overall dimension(L*w*H)	mm	3550*1450*3100	3550*1600*3100	5200*2100*3600	5200*2700*3600
Approximate weight	kg	8000-10000	8000-10000	10500-11500	11500-12500
