• Model NO.：DNFX-1300,1400
• Control：PLC
• Certification：API, ISO, CE
• Blade Diameter：300-600
• Max Lifting Travel of Cutting Frame：700
• Worktable Dimension：3000*1300
• Gross Motro：18kw
• Outline Dimension：5500*2300*1800
• Gross Weight：5000
• Water Consumption：6m3,H
• Transport Package：Plastic Package
• Specification：4300*2500*3400
• Trademark：Xianda
• Origin：Fujian, China (Mainland)
• HS Code：84641080
• Production Capacity：1000set Per Year

Basic Info.

Model NO. DNFX-1300/1400 Control PLC Certification API, ISO, CE Blade Diameter 300-600 Max Lifting Travel of Cutting Frame 700 Worktable Dimension 3000*1300 Gross Motro 18kw Outline Dimension 5500*2300*1800 Gross Weight 5000 Water Consumption 6m3/H Transport Package Plastic Package Specification 4300*2500*3400 Trademark Xianda Origin Fujian, China (Mainland) HS Code 84641080 Production Capacity 1000set Per Year

Product Description

Description:

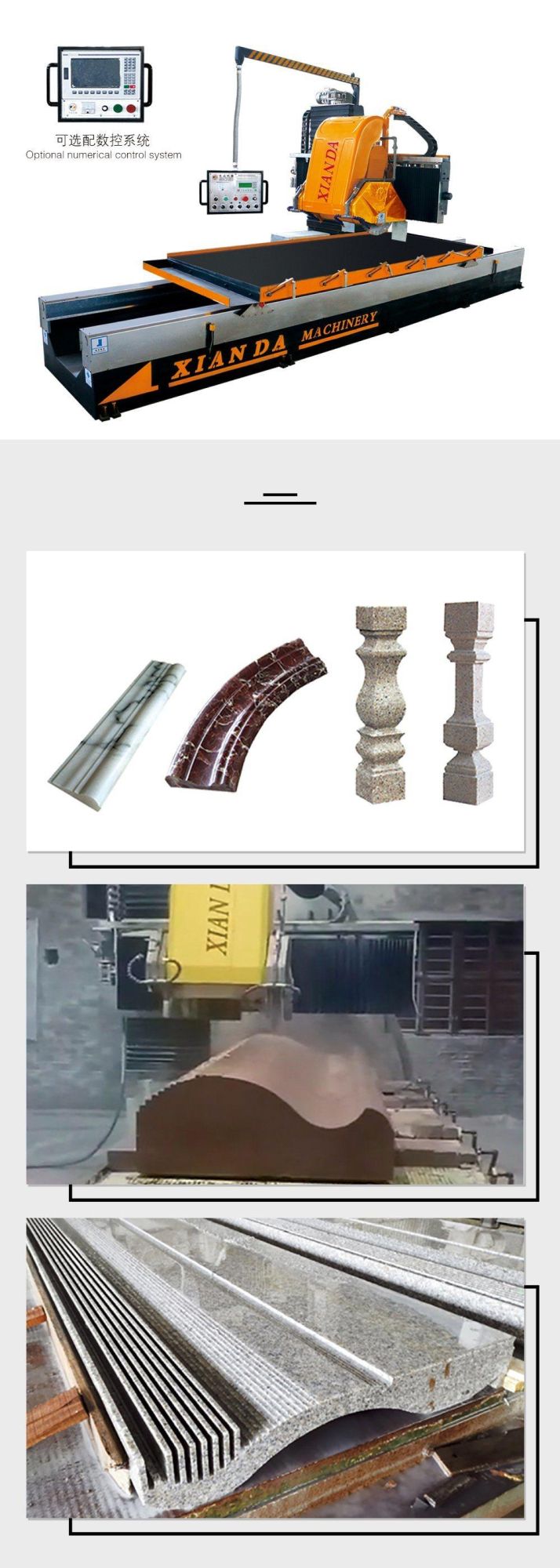

DNFX-1400 XIANDA MARBLE GRANITE EDGE PROFILING MACHINE adopts PLC system profiling lines, cutting with double blades, which is specially used for cutting profiling lines, roman column, big column slab and so on for the heterotype stones.




Technical Parameter

Parameter	Unit	DNFX-1300	DNFX-1400
Blade diameter	mm	φ300-φ600	φ300-φ600
Max lifting travel of cutting frame	mm	800	800
Dimension of worktable	mm	3000*1300	3500*1400
Main motor	kw	15	15
Gross motor	kw	18	18
Outline dimension	mm	5500*2300*1800	6000*2400*1800
Gross weight	kg	5000	5500
Water consumption	m³/h	6	6

Xianda machinery


Fujian Xianda Machinery Co. Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine, wire saw stone cutting machine, block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company, we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.



Exhibition

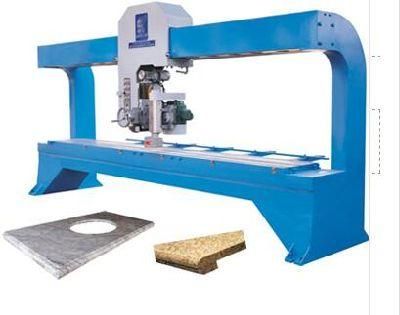

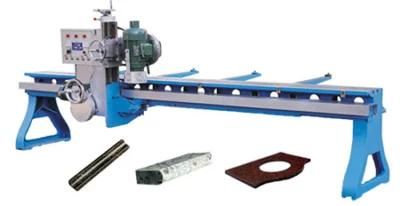

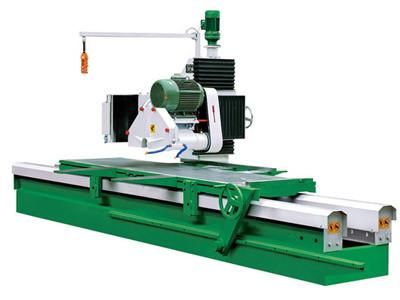

Other stone cutting machines we produce:
       Diamond Wire Saw Machine for Trimming/Cutting/Squaring/Profiling,
       Bridge Cutting Machine for Block/Slab/Strip/Tiles,
       Stone Profiling Machine for Linear/Baluster/Pillar/Vase,
       Column Slab Processing Machine.

FAQ

1. Manufacturer Profiles

We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.

We are a company which is specially for producing stone machines for exporting.

2. Quality Control

We have our own experienced QC.
Our machine will be strictly inspected.
We will provide a Testing Video for each machines before shipping out if required by customer.

3. Delivery time

Based on order quantity, normally three weeks against payment.

4. Warranty

All the machines have one year warranty.

5. After Services

Our marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.

6. Contact





Add: Anqi Road, Wuli Industrial Park, Jinjiang City, Fujian, China.
