• Model NO.：XZQQ625A
• Control：CNC
• Certification：ISO, CE
• Max Cut Size(L*W)：3200*2000 mm
• Table Rotation：0-360 Degree
• Table Size：3200*2000 mm
• Max Blade Size：625mm
• Payment：T,T
• Table Tilting：0-85 Degree
• Transport Package：Plastic Packing
• Specification：blade tilting 0-45 degree
• Trademark：AGA
• Origin：China
• HS Code：84641010
• Production Capacity：300sets,Month

Basic Info.

Model NO. XZQQ625A Control CNC Certification ISO, CE Max Cut Size(L*W) 3200*2000 mm Table Rotation 0-360 Degree Table Size 3200*2000 mm Max Blade Size 625mm Payment T/T Table Tilting 0-85 Degree Transport Package Plastic Packing Specification blade tilting 0-45 degree Trademark AGA Origin China HS Code 84641010 Production Capacity 300sets/Month

Product Description

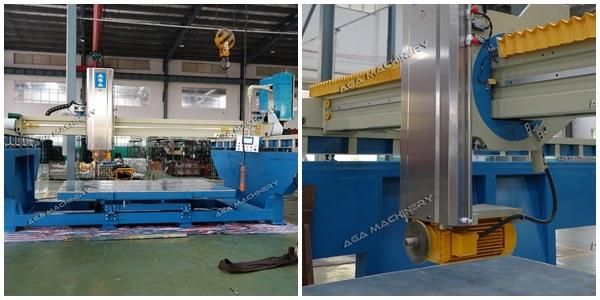

Bridge Cutting Machine Introdduction:
The machine is a popular bridge saw that widely used in trimming and fabricating slab, tile, countertops, etc. It is able to cut 3200mm length and 2000mm width and 175mm thick (126"×78" ×7").
The mechanical body is made of very strong cast iron for stability and long lifetime. It also provides covered oil bath for the movements of bridge rails.

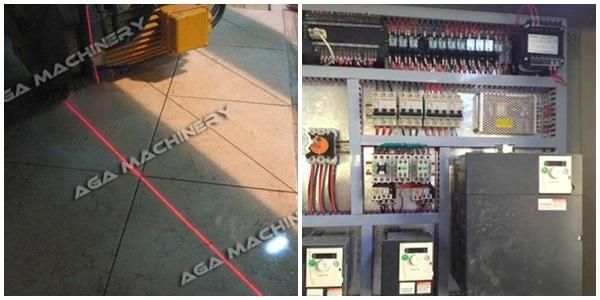

The laser guide and eletric system gives high accuracy for the machining tolerance.

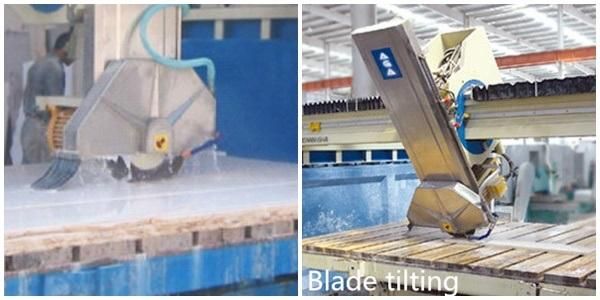

The blade travels on the beam and it also provides power tilting 0 - 45 degree for mitre edge trim

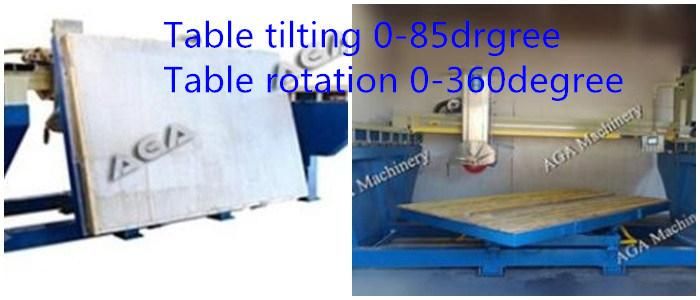

The table turns 0 - 360 degree automatically and it also tilts 0 - 85 degree hydraulic for easy load and unload of the material.

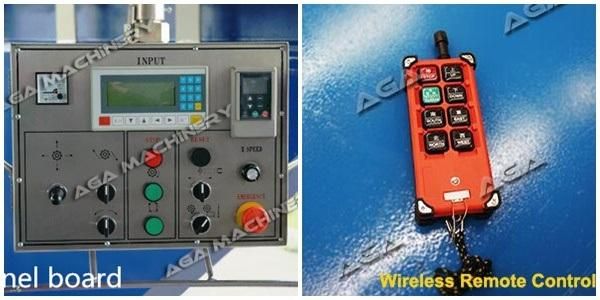

This monobloc bridge saw machine is computer control.It is PLC control and able to program for up to 99 repeat cuts automatically.All functions are operated on the color touch screen control panel with live datas. Besides, wireless remote provides easy control of the saw making its usrs very friendly


Bridge Cutting Machine Specification:

Blade size	400-625mm  16"-25"
Cut length	3200mm   126"
Cut width	2000mm   78"
Cut thick	170mm      7"
Blade tilt	0 - 45°
Table rotate	0 - 360°
Table tilt	0 - 85°
Spindle motor	15kW     20HP
Size (L×W×H)	6×3×2.6 m
Weight	7200 Kh

Bridge Cutting Machine Features:
1.Computer control operation
2.Cutting slabs into tiles and cut to size
3.Blade tilting: 45°
4.Table tilting: 0-85°
5.table rotation: 0-360° (stopping at each 45°)
6.Laser guide with wireless remote
7.Spindle Motor:15Kw (20HP)
8.Movements of bridge rails
9.Automatic water control
10.Warranty: one yea
11.Longevity:15 years

FAQ:
1, How to pay to you ?
 T/T in advance. We accept 30% deposit , 70% before shipment
2, How long is the delivery time?
For standard machines, it would be 2-5 weeks
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
4,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release
5, How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package

Company Introduction:

AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable service. The products include bridge saw,block cutter,polishing machine as well as equipments for other construction stones.The equipments have been successfully exported to world stone market in U.S.A.,Canada, Europe, Mid East, Egypt, India,etc.

AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers  in their pursuit of a true competitive advantage. our philosophy is all about  professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately

Products of AGA:
Stone cutting machine, multi blades block cutter, automatic bridge cutting machine, bridge saw, edge cutting machine, edge polishing machine, profile cutting machine, arm polisher machine, splitting machine, pressing machine, stone crusher.

Keyword:
Stone Bridge Cutter,Bridge saw,Cutting machine,Marble saw,Granite saw,Bridge cutting machine,
