• Model NO.：BRT Series
• Control：Artificial
• Certification：CE
• Style：Open Frame or Bridge Frame
• Suitable Material：All Kind of Stone
• Power：Electric Driven
• Systerm：Hydraulic
• Pressure：20t - 320t
• Transport Package：Exported Standard Wooden Case
• Specification：CE
• Trademark：BESTLINK
• Origin：Xiamen, China
• HS Code：84791090
• Production Capacity：5000 PCS , Month

Basic Info.

Model NO. BRT Series Control Artificial Certification CE Style Open Frame or Bridge Frame Suitable Material All Kind of Stone Power Electric Driven Systerm Hydraulic Pressure 20t - 320t Transport Package Exported Standard Wooden Case Specification CE Trademark BESTLINK Origin Xiamen, China HS Code 84791090 Production Capacity 5000 PCS / Month

Product Description

Open Frame Hydraulic Kerb Stone Cutting Machine for Splitting Granite/Marble/Basalt/Quartz

Products features:

Hydraulic stone cutting machine is suitable for cutting or splitting all types of natural and artificial stones, into cube stone, wall stone, block stone, tiles, paving stone, countertops, vanity tops.
This BRT series stone cutting machine have many model with open frame, and every cutting machine can be integrated in a production line.
It could be especially designed according to your equirements. Customized availabe!

Specification:


Model No.	BRT320-1200*800-M	BRT160T-500*550	BRT70T-400*350	BRT40T-240*320	BRT20T-160*180
Splitting pressure	320T	160T	70T	40T	20T
Max.splitting width	1200mm	500mm	400mm	240mm	160mm
Max.splitting height	800mm	550mm	350mm	320mm	180mm
Floating Teeth Adaptation	36*20mm	30*15mm	20*10mm	15*10	10*7mm
Power Supply	22KW	15KW	11KW	11KW	7.5KW
Rated voltage	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Electric current	42.5A	30A	22.6A	22.6A	15A
Main oil cylinder data	Φ400/Φ280-850	Φ280/Φ200-600	Φ200/Φ140-360	Φ160/Φ110-340	Φ110/Φ80-200
Cylinder advanced speed	40mm/s	76.6mm/s	108mm/s	167mm/s	96mm/s
Overall size(L*W*H)(MM)	2370*1500*3840	1970*1200*3300	1500*1200*2520	1260*1000*2300	1145*1000*2030
Weight	10000KG	5300KG	3200KG	2900KG	2300KG

Online Video Show:

Our Stone cutting machine has high efficiency on cutting/splitting rough rock,
here are the videos of Hydraulic stone cutting machine on the factory testing, and client feedback:

https://youtu.be/iW-oLpDBWEI
https://youtu.be/kBl88hJHPKU
https://youtu.be/5WbQOyh1fqY

Advantages:

1. The electrical control cabinet adopt the French Schneider, with internal layout reasonable and neat, and through the senor switch to facilitate rapid signal to make the movements of the machine consecutive and accurate.
2. The hydraulic system adopts from German Bosch Rexroth, providing sustainable, stable and sufficient power to the machine.
3. With intelligent gear cutting head, it could adjust itself according to the smooth condition of the stone surface.
4. We can design a perfect stone cutting line from blocks to paving stone, wall stone, mosaic, cobble stone, etc, upon the demand of customers.

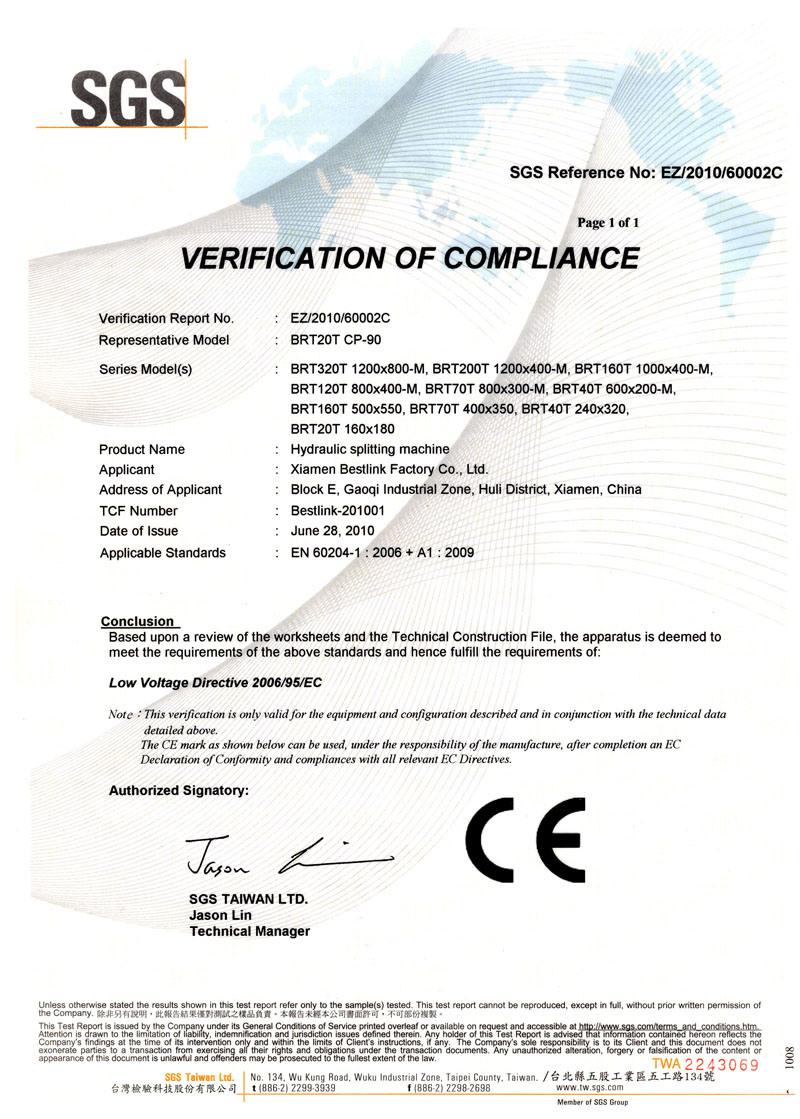

CE certification:

Our BRT series stone cutting machine has the CE certificate, reliable quality, stable performance and with a lot of great feedback.

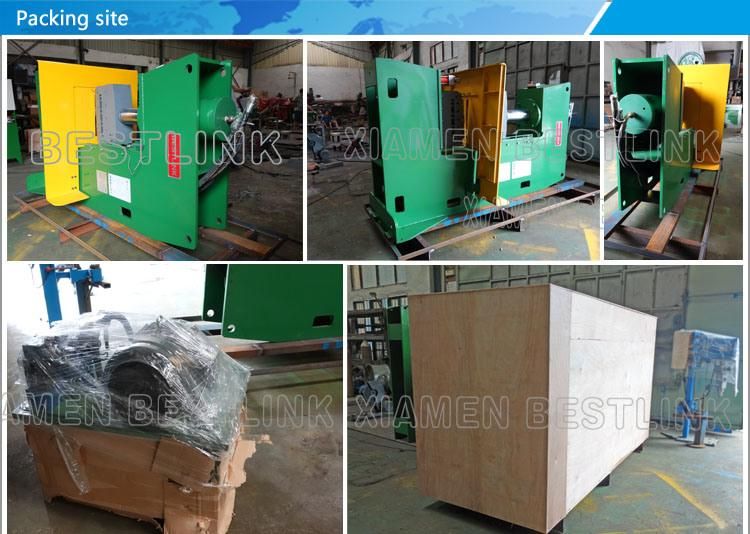

Packing details for your reference:

This stone cutting machine will be packing into the exported standard plywood case, or according to your special requirement.


Stone Effect and Project case:

This stone cutting machine is great efficiency spliting the stone block: Mosaic, cubes of paving, rusticated ashlars of walks, kerb stone, rectangular tiles with split edges for paving and convering, binders, small strip of slabs, steps and all the operations of blocks splitting of big size and so on.
