• Model NO.：BRT40T-200x600-M
• Control：CNC
• Certification：CE
• Warranty：1 Year
• Suitable Stone：Granite, Marble, Sandstone, Limestone, Concrete
• Voltage：as Per Client′s Request
• Capacity：800 PCS Per Hour
• Transport Package：Plywood Box or Naked Packing
• Specification：as per machine model
• Trademark：BESTLINK
• Origin：Fujian, China
• HS Code：84791090
• Production Capacity：20sets Per Month

Basic Info.

Model NO. BRT40T-200x600-M Control CNC Certification CE Warranty 1 Year Suitable Stone Granite, Marble, Sandstone, Limestone, Concrete Voltage as Per Client′s Request Capacity 800 PCS Per Hour Transport Package Plywood Box or Naked Packing Specification as per machine model Trademark BESTLINK Origin Fujian, China HS Code 84791090 Production Capacity 20sets Per Month

Product Description

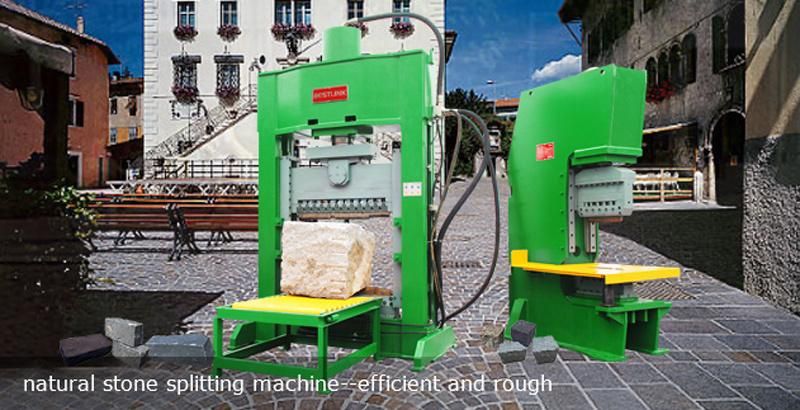

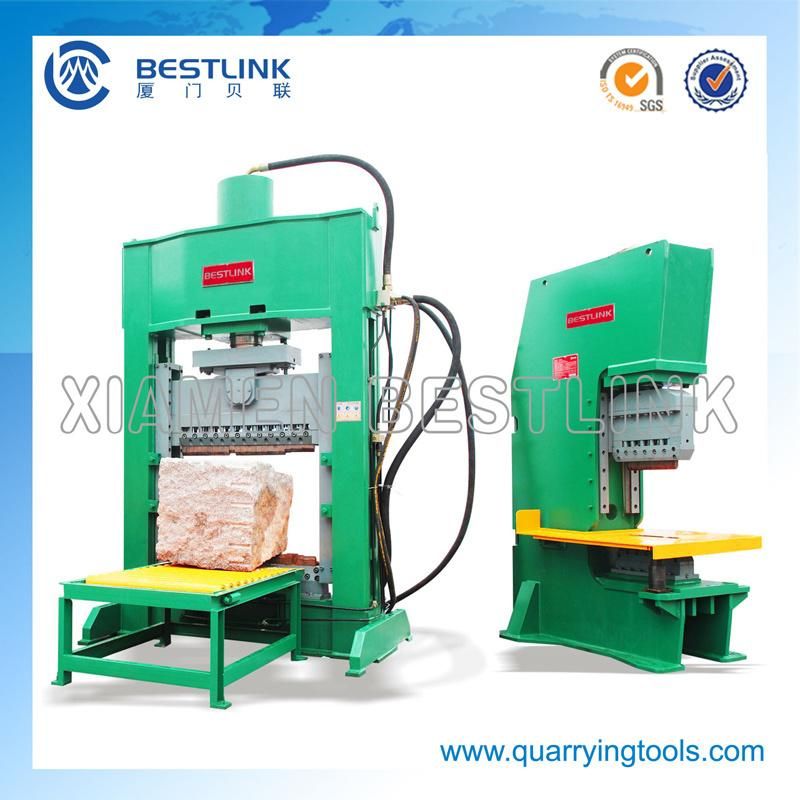

Hydraulic Natural Stone Splitting machine
It suitable for splitting all types of natural and artifical stones, used for the production of large and small materials for mosaic and stone flooring. And characterized by high reliability and easy handling, every splitting machine can be integrated in a production line, especially designed according to your needs.

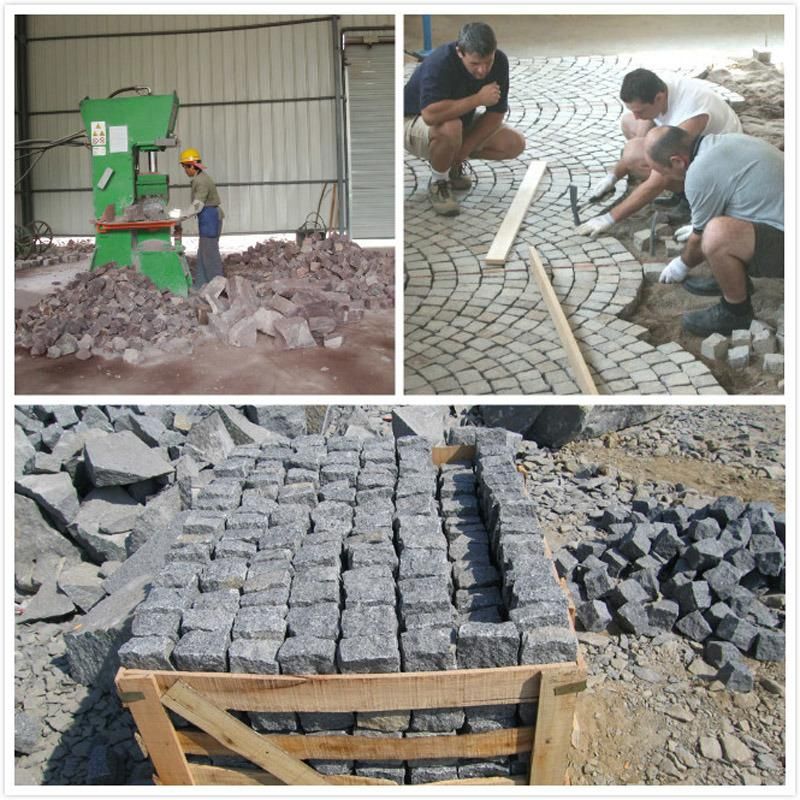

Using our splitting machines you could produce a wide range of products like: Cobble stones, Paving stones, Tiles for paving and cladding, Wall stones and Kerb stones, etc. Our machines are known also as splitters, hydraulic splitting machines, stone splitter or stone cutter (for rustic products).
The hydraulic system of our machines mainly uses the hydraulic components of German Bosch Rexroth with stable performance, no oil leakage, low noise and long service life and so on.
Electrical system of our machines is safe, reliable, convenient and flexible and the components are from the brands ofSchneider and Omron.
The machines can be operated automatically or manually and move continuously or single-step. Equipped with a separate control cabinet, the electric control part can be operated by a total station and a button box. The start-up and operation is very convenient.
The character of the machine is of intelligent gear cutting head, can adjust itself according to the condition of the stone face, and then, generate hydraulic power to split the stone down in a spot. Therefore it is of high speed, good quality, low consumption and so on, which can improve products quality and production efficiency in a high degree.

Our Advantage:

1. Complete full series with different models for choice
2. International brand-name core components
German Bosch Rexroth
Omron and Schneider
Siemens Motor
3. Blade adaptation system with floating teeth
4. Design according to client's request available
5. Combination of production line with suitable conveyor available
6. CE certificate

There are 6 normal model:
BRT20T BRT40T BRT70T BRT160T BRT200T BRT320T

Model No.	BRT40T-600*200-M
splitting force	40
max.splitting width	600
max.splitting height	200
Single blade size	160*40*25
Blade QTY.	32
Adaptation of upper/lower blade	20*10
Power supply	7.5
main oil cylinder data	Φ180/Φ120-200
Bench height	900
machine overall size(L*W*H)	1390*1140*2300
machine weight	2200
Hydraulic unit size	800*650*1100
Hydraulic unit weight	310
