Automatic Stone Cutting Machine Slab Cutting Machine Tile Cutter Machine (HQ400-600-700)

Xiamen Aga Import and Export Co., Ltd.
  • After-sales Service：24 Hours on Line Services
  • Warranty：1 Year Warranty
  • Type：CNC Cutting Machine
  • Usage：Granite, Marble, Quartz Sandstone Limestone Other Engineered Stones
  • Application：Machinery & Hardware, Construction, Stone Industry
  • Source Voltage：380V

Base Info

  • Model NO.：HQ400-600-700
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Control：CNC
  • Certification：ISO, CE
  • Blade Size：300-450mm
  • Table Size：3200mm*2000
  • Table Rotation：0-90,0-360
  • Table Turnover：0-85
  • Max.Cut Size：3200*2000*110mm
  • Spindle Motor：15kw 20Hz
  • Weight：6300kg
  • Transport Package：Plastic Packing
  • Specification：6*4.8*2.9m
  • Trademark：AGA Machinery
  • Origin：Xiamen China
  • HS Code：84641090
  • Production Capacity：200sets,Month

Description

ModelHQ700HQ600HQ400 Laser Guide DeviceYesYesYesBlade tilting 45° (Angle Cut Mitered)YesN/AN/ATable Rotation 90°YesYesYesTable Rotation 0-360°
(stopping at each 45°)YesOptionalOptionalTable tilting 0 - 85°YesYesYesPower Of Spindle Motor18.5kw / 25 HP18.5kw / 25 HP15kw / 20 HPMax Length of Cutting: (Table Size)3200 x 2000mm 126"x78"3200 x 2000mm 126"x78"3200 x 2000mm
126"x78"Max Thick of Cutting:230 mm 9"180 mm 7"110 mm 4"Steel Walls IncludedYesOptionalOptional

Stone cutting machine information:

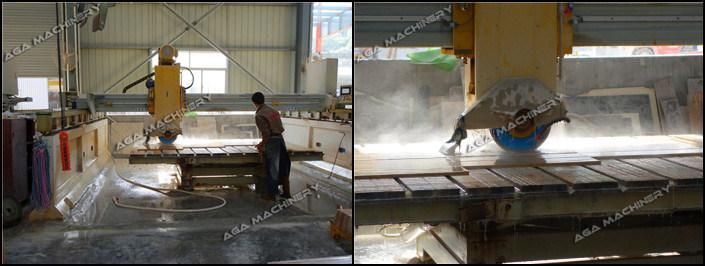

-  Automatic machine to cut slab and tile of granite, marble, sandstone and other stone materials.

-  The machine is microcomputer control and works automatically by program.

-  The blade goes left and right, up and down, the bridge beam moves forward and backward.

-  Table tilts up to 85 degree to load the big slabs easily and it also rotates 90 / 360 degree to change the cutting position.

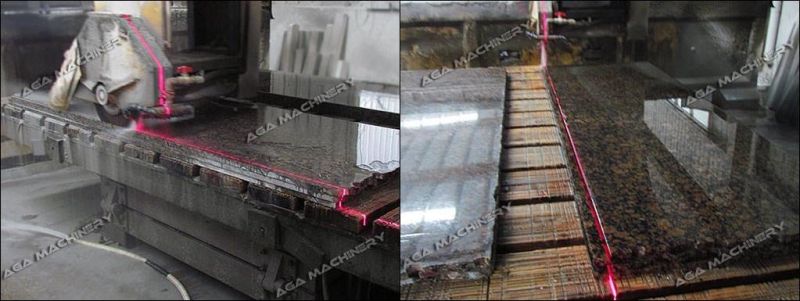

-  Touch screen operation is simple and Laser guide shows the cutting position that makes the cutting easier.

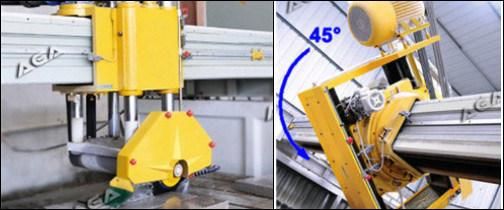

-  Blade tilt 45 degree for mitered cuts available for model HQ700

-  Four pistons head optional.



Advantages of the stone cutting machine:

-  Main structures made of strong cast iron and stainless steel for protection

-  Electric parts from Japan ensuring stable performance

-  Computer control automatic work and stable performance

-  Flexible movements in X, Y, Z axis by screw

-  Precise cut +/-0.2mm

-  Touch screen easy operation
Automatic Stone Cutting Machine Slab Cutting Machine Tile Cutter Machine (HQ400-600-700)Automatic Stone Cutting Machine Slab Cutting Machine Tile Cutter Machine (HQ400-600-700)Automatic Stone Cutting Machine Slab Cutting Machine Tile Cutter Machine (HQ400-600-700)Automatic Stone Cutting Machine Slab Cutting Machine Tile Cutter Machine (HQ400-600-700)

FAQ:
1) Payment:
T/T in advance, we accept 30% deposit and 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
