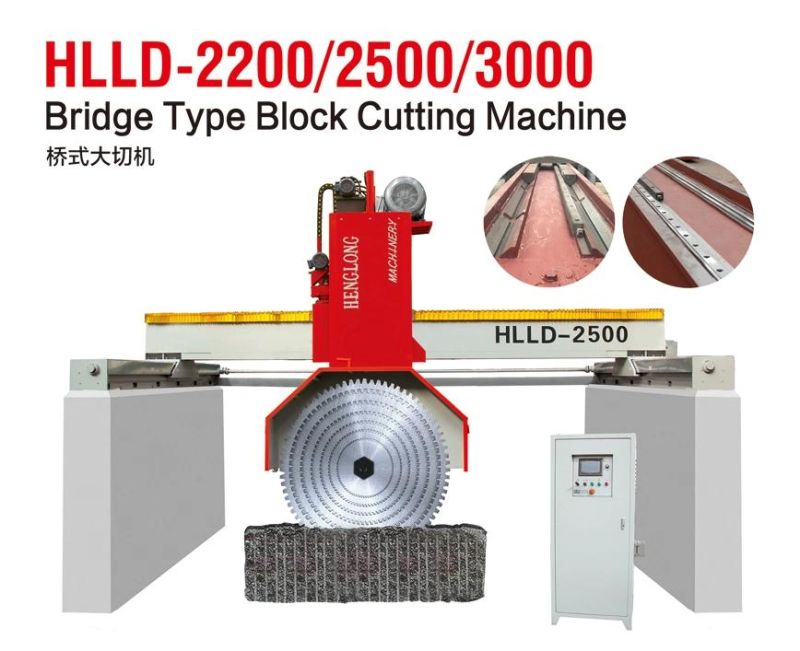

Henglong High Speed Bridge Block Stone Cutting Machine Hydraulic Cutter
FUJIAN NAN'AN HENGLONG MACHINERY CO.,LTD.- Type:Hydraulic Cutting Machine
- Usage:Granite, Marble
- Application:Stone Industry
- Source Voltage:380V
- Automation:Automatic
- Cutting Ability:High Speed

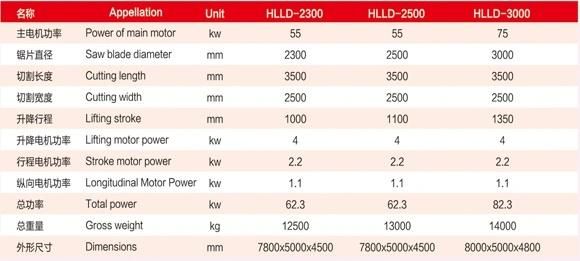

Base Info
- Model NO.:HLLD-2200,2500,3000
- Certification:SONCAP, ISO, CE
- Power of Main Motor:55kw
- Saw Blade Diameter:2500mm
- Cutting Length:3500mm
- Cutting Width:2300mm
- Lifting Stroke:1350mm
- Lifting Motor Power:4kw
- Stroke Motor Power:3kw
- Longitudinal Motor Power:3kw
- Total Power:67kw
- Gross Weight:13000kg
- Transport Package:Standard Export Packaging
- Specification:7800*4500*4500mm
- HS Code:84641090
- Production Capacity:30~50 Sets,Month
Description
Basic Info.
Model NO. HLLD-2200/2500/3000 Certification SONCAP, ISO, CE Power of Main Motor 55kw Saw Blade Diameter 2500mm Cutting Length 3500mm Cutting Width 2300mm Lifting Stroke 1350mm Lifting Motor Power 4kw Stroke Motor Power 3kw Longitudinal Motor Power 3kw Total Power 67kw Gross Weight 13000kg Transport Package Standard Export Packaging Specification 7800*4500*4500mm HS Code 84641090 Production Capacity 30~50 Sets/MonthProduct Description







Product description

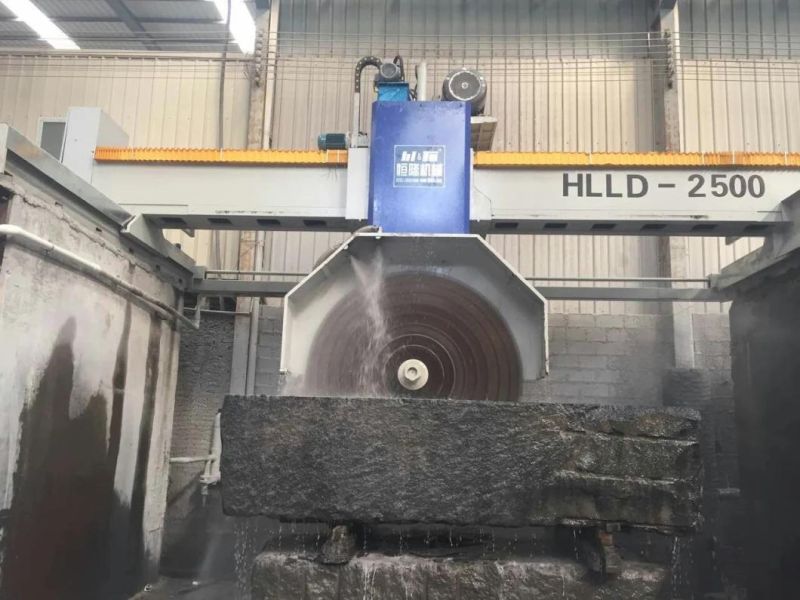

This machine uses inverter to control left-right feeding ,adjusts speed according to the stone material. It uses hydraulic lifting system,combination of Chrome-plated guide pin and wear guide bush ,with small gap,wearable,beautiful structure,and Guide Sleeve with multi-layer seals.with waterproof,dustproof,anti-spill,improving the service life. Forward - backward slicing uses high-precision screw nut driving ,automatic slicing ,main spare parts adopt imported good-quality materials;the block can be placed on the ground directly to economize the worktable and its maintenance costs .Thus the whole machine is featured with high cutting effciency ,high slicing precision ,flatness of plate after cutting ,high stability,easy-operating to suit granite and marble block with high value.

More information please contact us
