• Model NO.：PEW250x1200, PEW400x600, PEW760, PEW860
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• After-Sale Service：for Whole Using Life
• Test&Installation：Engineer Assigned
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. PEW250x1200, PEW400x600, PEW760, PEW860 Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year After-Sale Service for Whole Using Life Test&Installation Engineer Assigned Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

2019 Hot sale new design rock jaw crusher

1. Introductions of rock jaw crusher
 rock jaw crusher has the features of high crushing and even product size ratio.  It can be used to crush material, whose compression strength is not more than 320Mpa. PE Series is used in primary crushing, while PEW series is used in secondary crushing and fine crushing.And the rock jaw crusher can be used in the field of mining, metallurgy, building material, highway, railway, water conservancy and chemical, etc.

 2. Features of rock jaw crusher1) Advanced structure 2) High performance 3) High crushing ratio 4) High capacity 5) Overloading protection 6) Long-span life 7) More than 40 years experience manufacturer

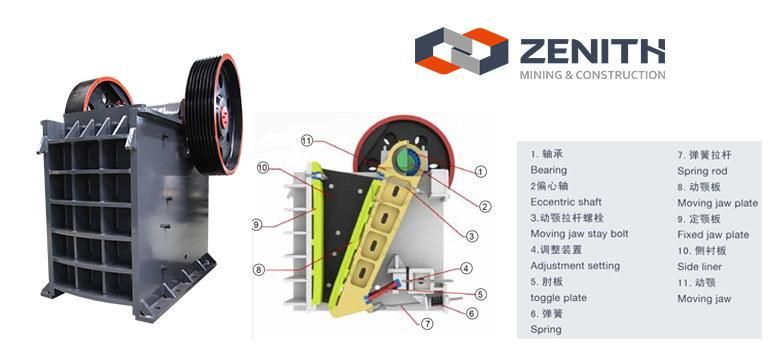

 3. Work principles of rock jaw crusherrock jaw crusher are ideally primary and secondary crushing, with low power consumption and easy maintenance, each PE Jaw Crusher has been carefully designed and manufactured to provide superior quality and performance. The optimal designed crushing chamber makes large reduction ratio and high efficiency. And the high rotating speed of the swing jaw and curve-designed haw plate results in a high capacity. PE Jaw Crusher can achieve 4-6 crushing ratio and make the final ore in a even shape and it is widely applied to crush high hardness, medium hardness and soft rocks and ores. However, PE Jaw Crusher can be used in Mining, Metallurgical industry, Construction and road building, Chemistry etc.

 4. After-Sale Service of rock jaw crusher
 Erection and CommissioningOperator TrainingSpare Parts SupplyWarranty Terms: 1 year Delivery Time: 25~30 days after receiving advanced paymentProducts Certificate: ISO9001:2008 5. Main specifications of rock jaw crusher

Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PE200×350	200×350	170	20-50	2-6	220	6-7.5	Y160M-6/7.5
PE250×400	250×400	210	20-60	5-20	310	6-15	Y180L-6/15	1450×1315×1296
PE250×750	250×750	210	20-60	8-22	320	6-30	Y225M-6/30
PE500×750	500×750	425	50-100	45-100	275	6-55	Y280M-6/55	1890×1916×1870
PE600×900	600×900	500	65-160	70-120	250	6-75	Y315S-6/75	2520×1840×2303
PE750×1060	750×1060	630	80-140	130-260	250	8-90	Y315L1-8/90	2620×2302×3110
PE900×1200	900×1200	750	95-165	220-380	200	8-130	JR127-8/130	3789×2826×3025
PE1000×1200	1000×1200	850	195-265	230-380	200	8-130	JR127-8/130	3889×2826×3025
PE1200×1500	1200×1500	1020	150-300	400-800	220	8-200	YR355M4-8/200	4930×3150×3700
