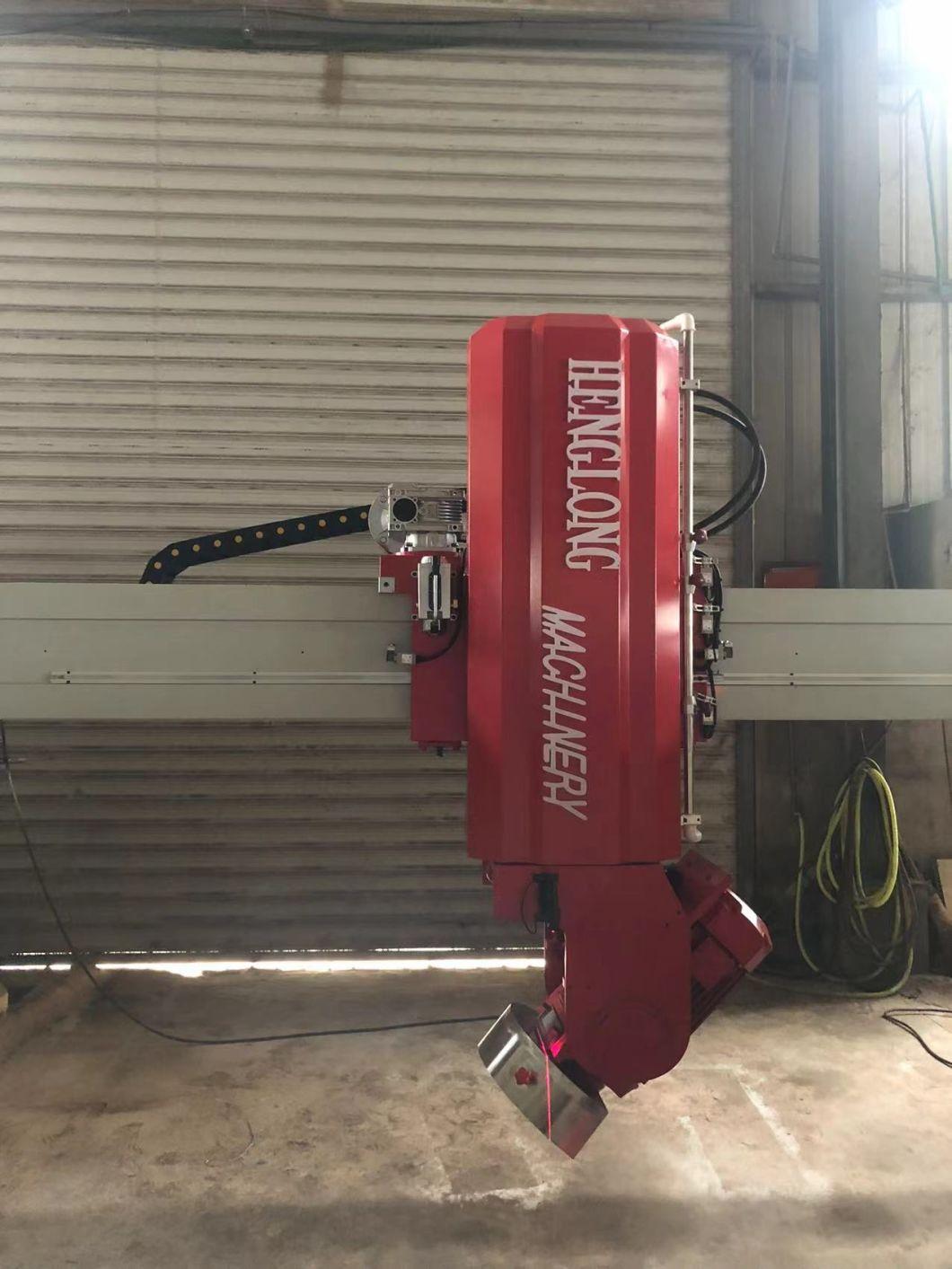

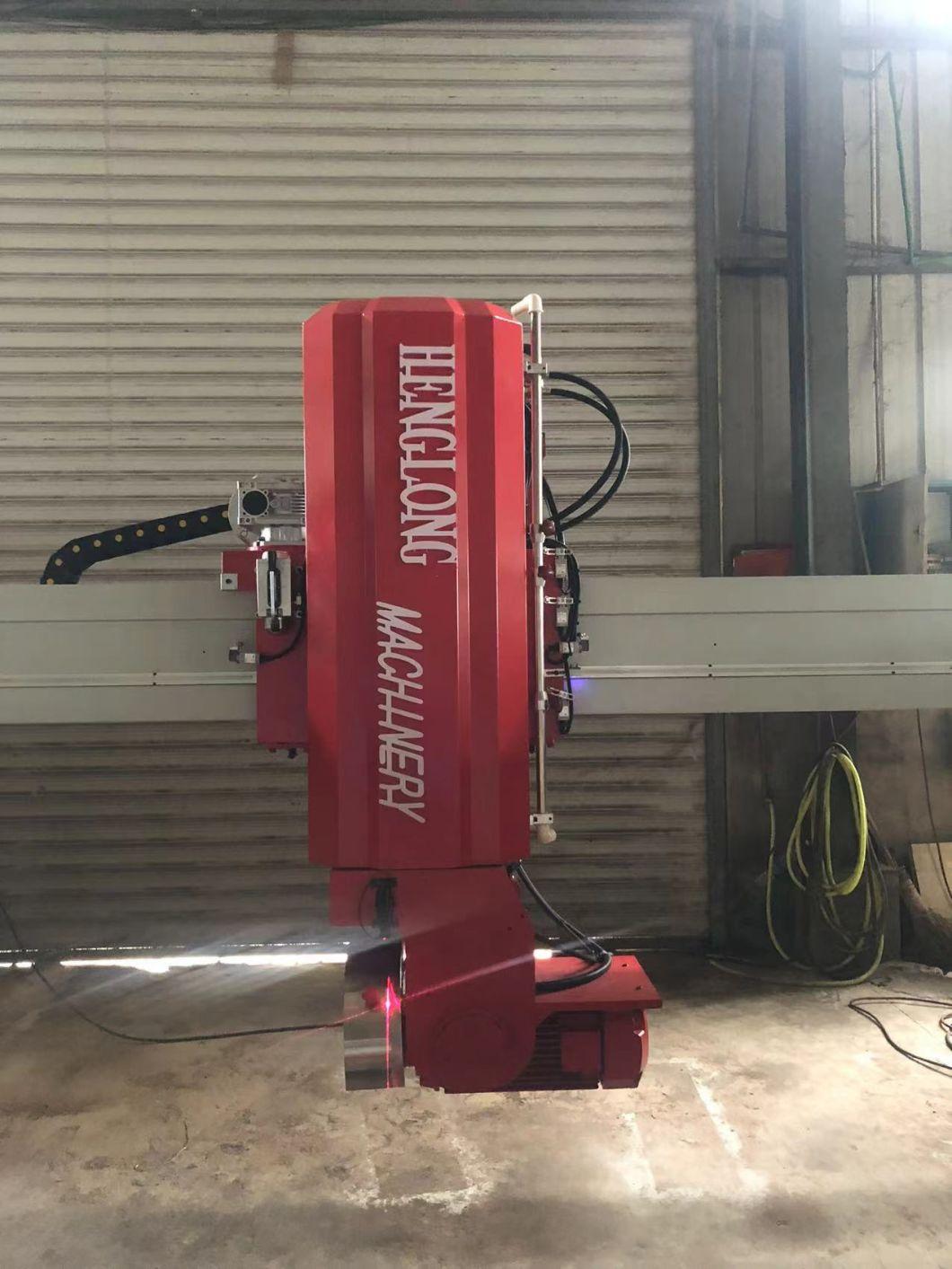

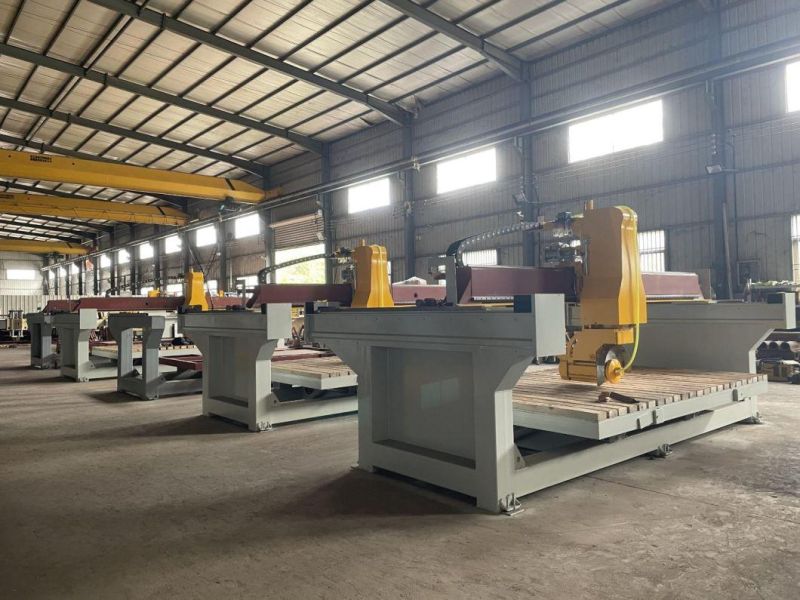

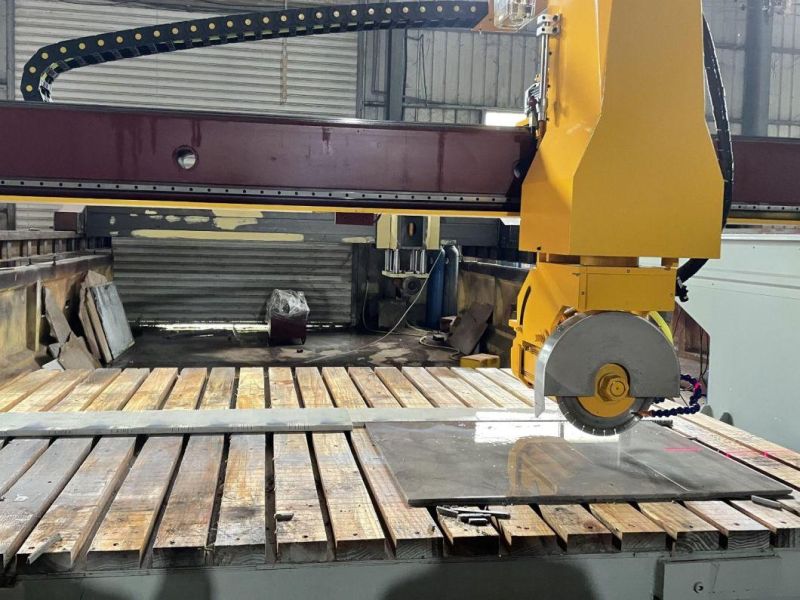

3 Axis Infrared Bridge Saw Tile Cutter Granite Marble Quartz Slab Laser CNC Stone Cutting Machine
FUJIAN NAN'AN HENGLONG MACHINERY CO.,LTD.- After-sales Service：Provide
- Warranty：1 Year
- Type：CNC Cutting Machine
- Usage：Ceramics, Cement Brick, Concrete Curb, Granite, Marble
- Application：Machinery & Hardware, Construction, Mineral Industry, Stone Industry
- Source Voltage：380V
Base Info
- Model NO.：HLYT-400
- Automation：Automatic
- Cutting Ability：High Speed
- Control：CNC
- Certification：SONCAP, ISO, CE
- Transport Package：Standard
- Specification：5100x2800x2600mm
- Trademark：Henglong
- Origin：Fujian, China
- HS Code：8464109000
- Production Capacity：20sets ,Month
Description
Machine details
| Max blade diameter | Φ400 MM |
| Working table size(L*W) | 3200*2000 MM |
| Max. working dimension(L*W*H) | 3200*2000*80MM |
| Working table tilting degree | 85° |
| Cutting head tilting degree | 45° |
| Cutting head rotating degree | 0°-90° |
| Main motor power | 11 KW |
| Water consumption | 4 m³/h |
| Weight | 3500 KG |
| Dimension(L*W*H) | 5100*2800*2600 MM |
