• Model NO.：GJH3216
• Usage：Ceramics, Glass, Fire Brick, Red Brick, Cement Brick, Concrete Curb, Granite, Marble
• Application：Machinery & Hardware, Art & Craft, Construction, Stone Industry, Decoration Industry
• Source Voltage：380V
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE, SGS
• Transport Package：Wooden Case
• Specification：3016
• Trademark：GJH
• Origin：Shandong China
• HS Code：845655000
• Production Capacity：50 Sets Per Month
• Package size per unit product：4900.00cm * 3600.00cm * 2800.00cm
• Gross weight per unit product：3000.000kg

Basic Info.

Model NO. GJH3216 Usage Ceramics, Glass, Fire Brick, Red Brick, Cement Brick, Concrete Curb, Granite, Marble Application Machinery & Hardware, Art & Craft, Construction, Stone Industry, Decoration Industry Source Voltage 380V Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE, SGS Transport Package Wooden Case Specification 3016 Trademark GJH Origin Shandong China HS Code 845655000 Production Capacity 50 Sets Per Month

Packaging & Delivery

Package size per unit product 4900.00cm * 3600.00cm * 2800.00cm Gross weight per unit product 3000.000kg

Product Description

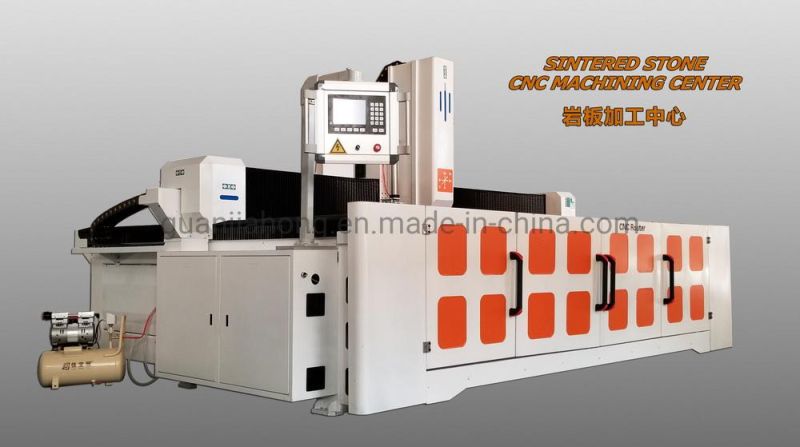

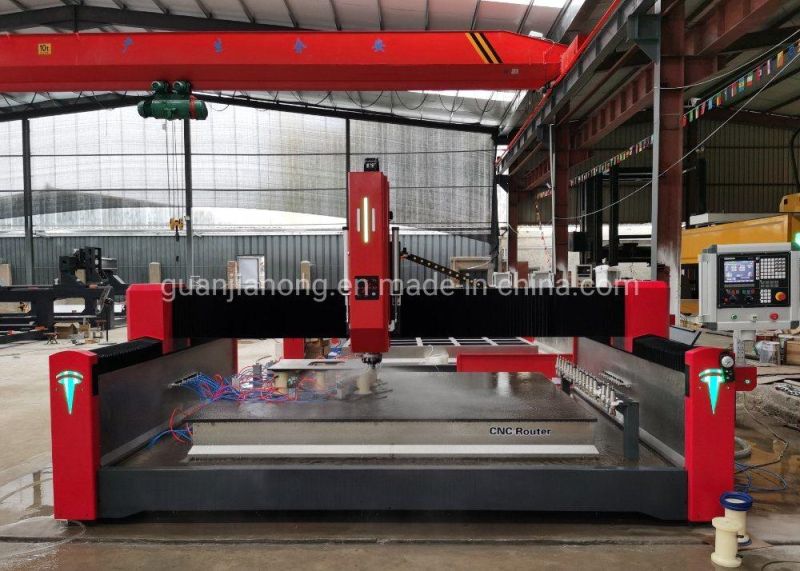

Professional CNC Router
Sintered Stone/ Artificial stone Slab Kitchen Countertop cutting machine
CNC machining center
for Stone, Marble, Granite, Quartzite, Quartz stone, Artificial stone, Glass
Model: 3216, or custmized size
From professional CNC machine manufacturer

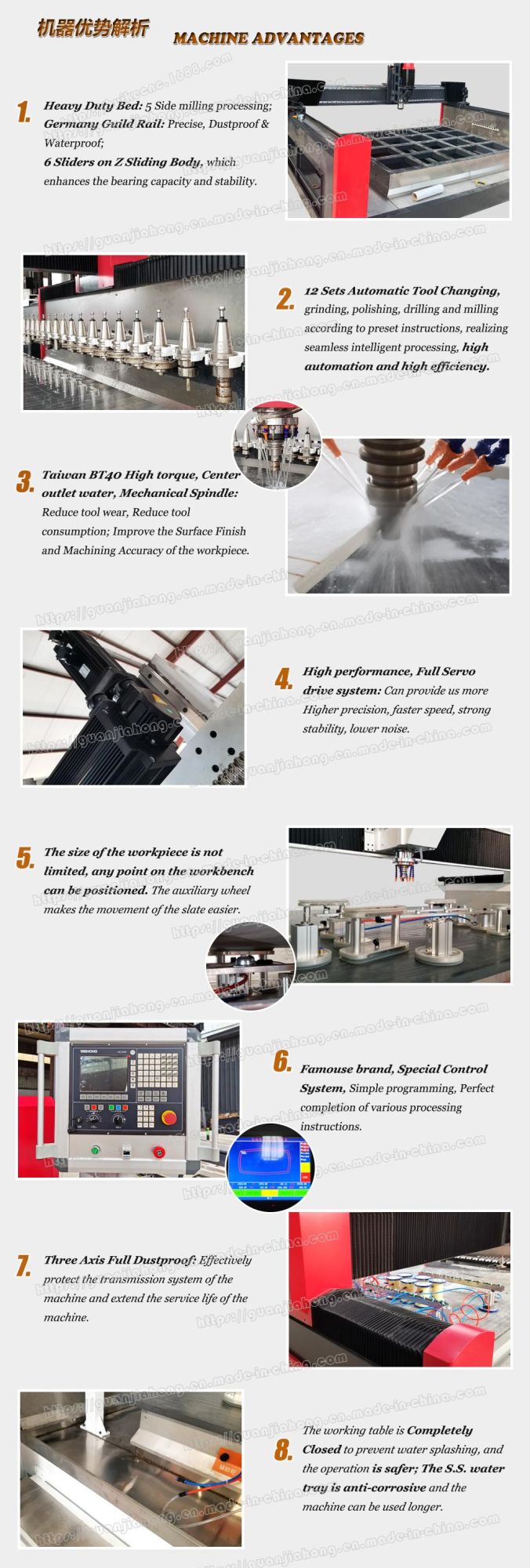

Feature:
1) Powered by CNC and interfaced with our CAD / CAM software, milling, carving, honing and polishing slabs continuously and automatically in one go.
2) Full servo driver. Fine cutting without serrated ripple, smooth bottom plane, clear outline.
3) Crossbeam and carling adopt LSM linear guide from Germany, which ensure high precision of cutting and long life.

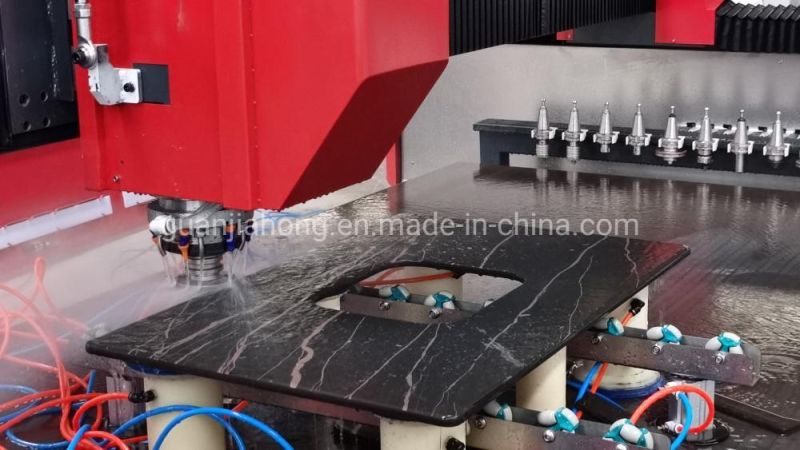

4) With Positioning cylinder & Vacuum sucker, double fixing the working pieces, avoiding even little displacement.
5) High torque, Center outlet water, Mechanical spindle, reduce tool wear,improve workpiece edge fine.
6) High speed and low noise.
7) High efficiency and low processing cost.


Working time:


Application:

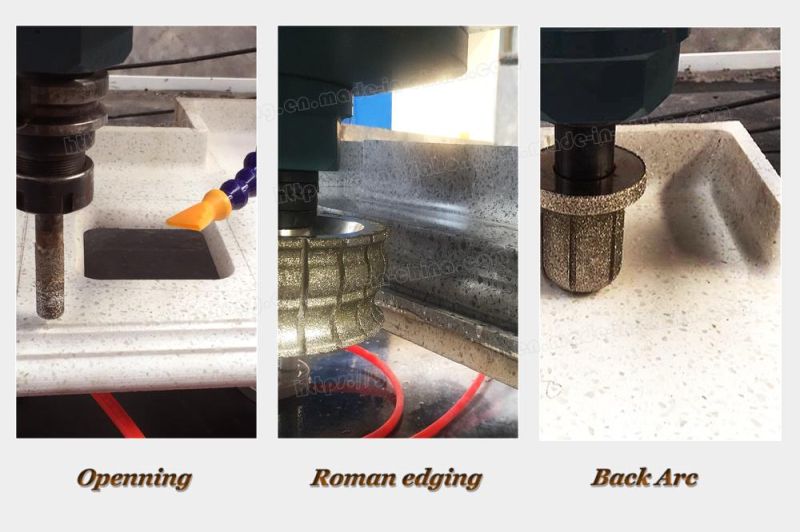

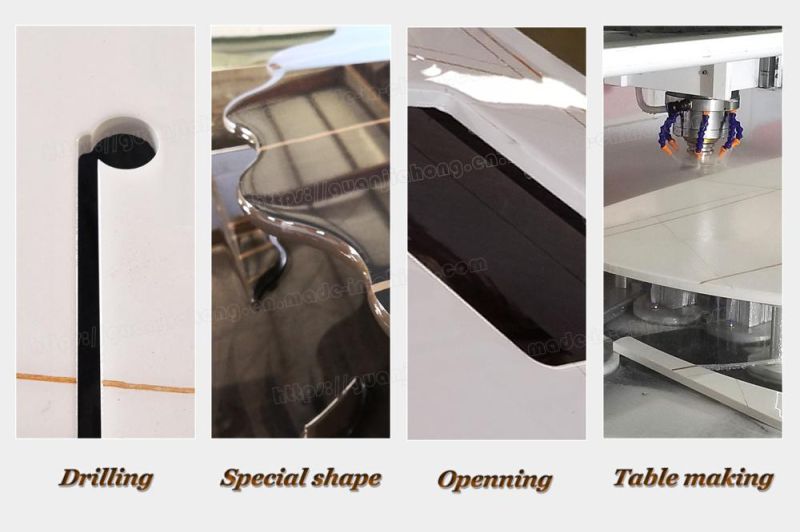

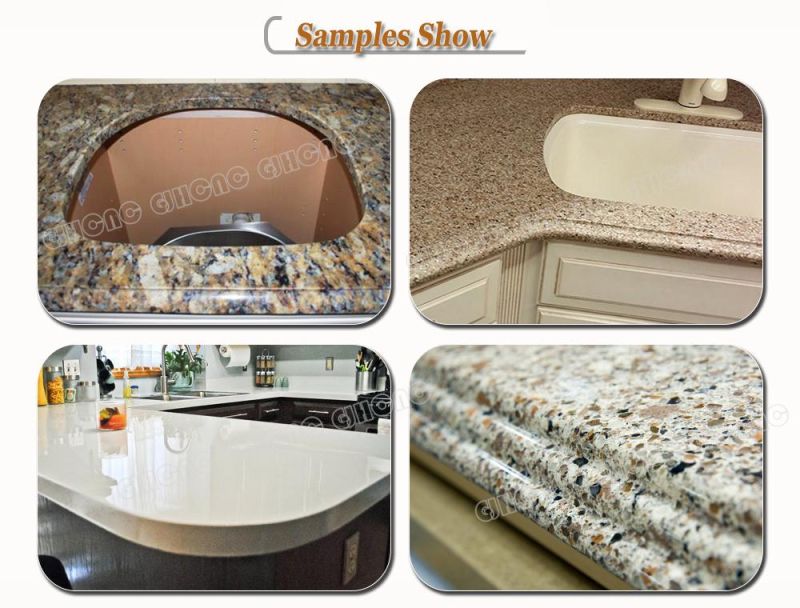

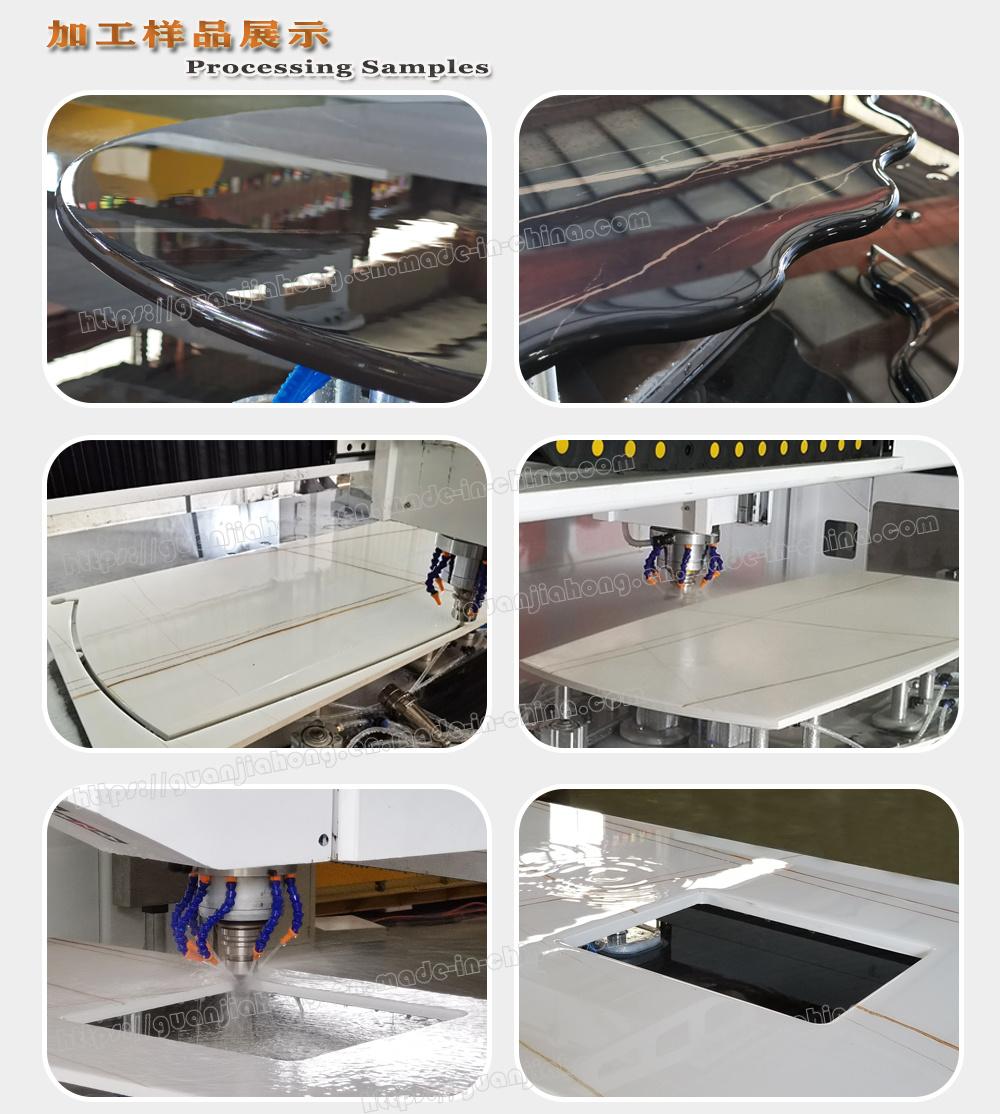

Suitable for cabinets artificial stone, quartz stone countertops and sink, tea tray carving, European style edging, and other heterosexual stone, ceramics, glass and ceramic stone drilling, sanding, edge down, carving.


Technical Parameter:

NO	PERFORMANCE INDEX	PERFORMANCE INDEX	PARAMETERS
1	Working area	X axis	3300mm
		Y axis	1700mm
		Z axis	300mm
2	Accuracy	Working accuracy	0.05mm
		Positioning accuracy	0.03mm
3	Transmission mode	X axis	Helical rack and gear
		Y axis	Helical rack and gear
		Z axis	Ball screws
4	Speed	Max travel speed	50000mm/min
		Max working speed	0-15000mm/min
5	Spindle (air cooling)	Spindle power	5.5KW
		Spindle speed	0-8000r/min
6	Driving mode		Servo
7	Working voltage		AC380-50HZ
8	Working pressure		0.6MPA
9	Control system		NcStudio
10	Machine size		4900*3600*2800mm
11	Machine weight		3000Kgs

If  you have specific requirement  for this Stone/ Marble/ Granite CNC machine, customized is available.




Sincerely waiting for your any inquiry, and trust that we can provide you professional suggestions.


Guarantee & After-sale service
1.One year warranty under normal use and we supply lifelong maintenance.
2.24 hours technical support by Phone, Email, Skype, Msn, or romote.
3.Free training to make sure you master the operation of the cnc router.
OEM Service Available
1.Usually, we will manufacturer the machine as our regular design.
2.X Y Z Working Area could be custmer-oriented designing.
3.Special configuration could be customer-oriented designing.
