Automatic Natural Face Cubic Stone Brick Splitting Machine for Granite

Xiamen Bestlink Factory Co., Ltd.
  • Usage：Granite, Marble
  • Application：Stone Industry

Base Info

  • Model NO.：C-20C
  • Source Voltage：380V
  • Automation：Semi-automatic
  • Cutting Ability：Low Speed
  • Control：Artificial
  • Certification：CE
  • Cutting Material：All Kind of Stone
  • System：Hydraulic
  • Finished Stone：Cubic Stone
  • Cutting Size：Adjustable 5-15mm
  • Transport Package：Wooden Package
  • Specification：1300*1350*1600mm
  • Trademark：BESTLINK
  • Origin：China
  • HS Code：84791090
  • Production Capacity：1000 PCS Per Month

Description

Basic Info.

Model NO. C-20C Source Voltage 380V Automation Semi-automatic Cutting Ability Low Speed Control Artificial Certification CE Cutting Material All Kind of Stone System Hydraulic Finished Stone Cubic Stone Cutting Size Adjustable 5-15mm Transport Package Wooden Package Specification 1300*1350*1600mm Trademark BESTLINK Origin China HS Code 84791090 Production Capacity 1000 PCS Per Month

Product Description

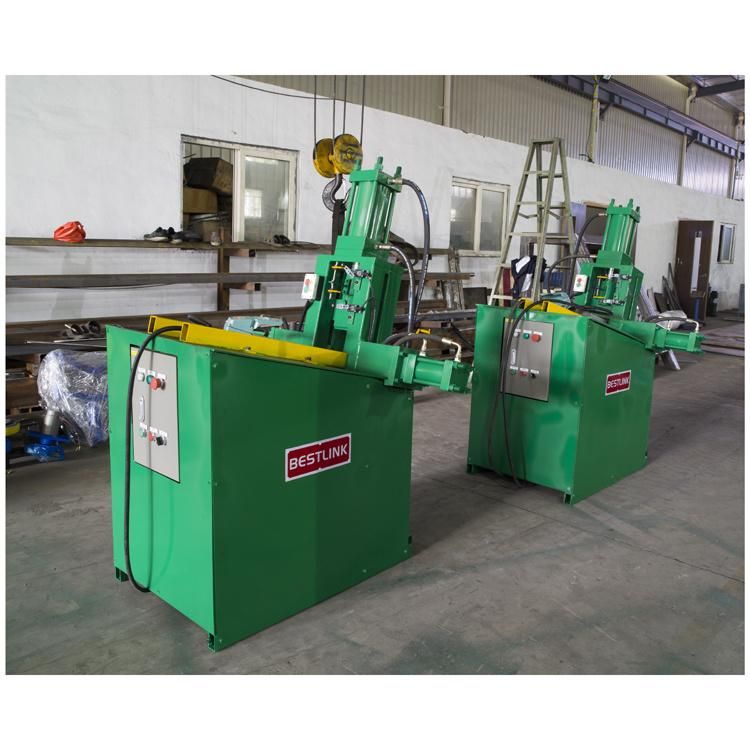

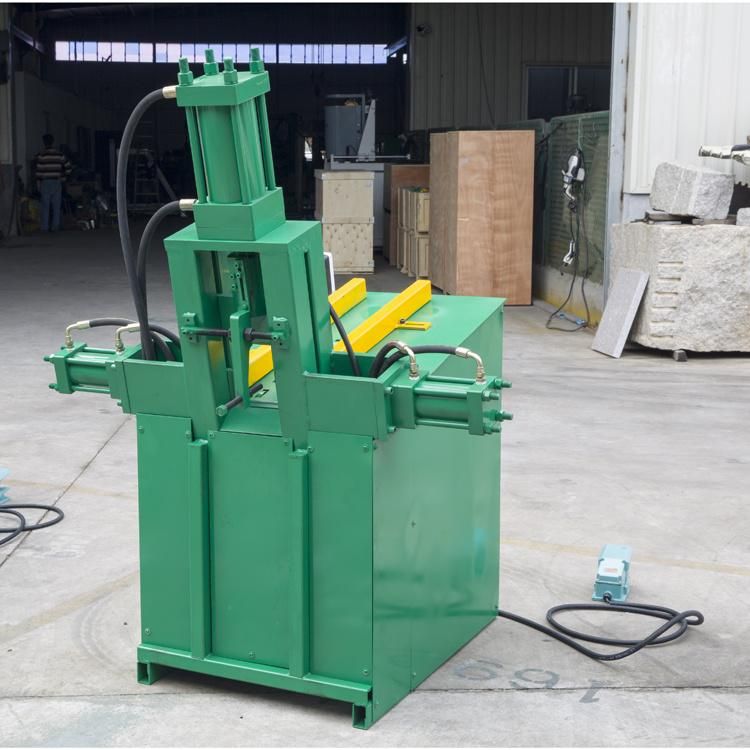

Automatic Natural Face Cubic Stone Brick Splitting Machine for Granite

Features:

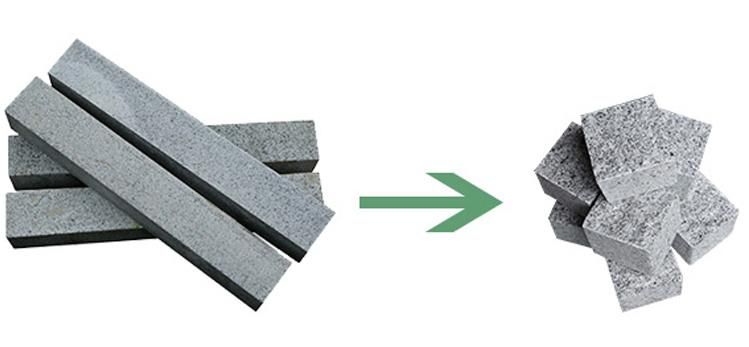

This stone guilotine for splitting long stone strips into rustic finished wall stone, bricks, with gravity feeding system
to make automatic operation.

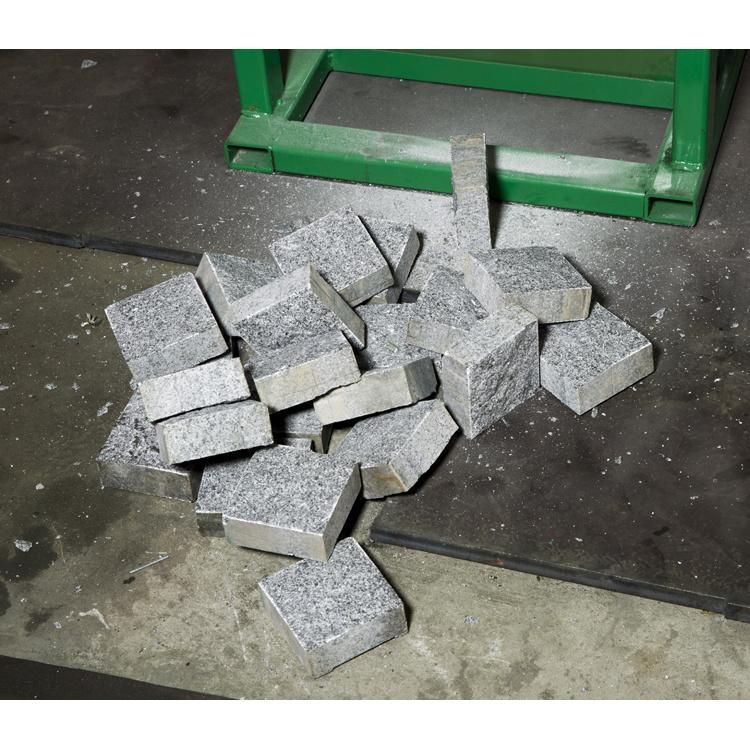

This machine is special for making rustic cubic stone from oblong shape stone pillar with the help of the principle of its own gravity automatic feeding, equidistance to split the pillar into cubic stone bricks uninterruptedly, the machine is suitable for 10-15 cm width, free length of stone pillars, it's the most rapid and economic small square cubic stone splitting machine

Automatic Natural Face Cubic Stone Brick Splitting Machine for Granite

Advantage:

1. The electrical control cabinet adopt the French Schneider, with internal layout reasonable and neat, and through the senor switch to facilitate rapid signal to make the movements of the machine consecutive and accurate.

2.The hydraulic system adopts from German Bosch Rexroth, providing sustainable,stable and sufficient power to the machine.

3.The motor is Siemens motor.

4.With intelligent gear cutting head, itcould adjust itself according to the smooth condition of the stone surface.

5. We can design a perfect stone cutting line from blocks to paving stone, wall stone, mosaic, cobble stone, etc, upon the demand of customers.


Specification:

ModelCube 20C
Splitting force (tons)10
Max splitting width (mm)150
Max splitting height (mm)100
Hydraulic pressure (Mpa)20
Hydraulic oil flux (L/min.)31
Oil Tank (L)100
Overall Size (mm)1600*1000*1300
Net Weight (kg)400
ApplicationStone guillotine splitting long stone strips into rustic finished wall stone, gravity feeding, automatic

Automatic Natural Face Cubic Stone Brick Splitting Machine for Granite
Automatic Natural Face Cubic Stone Brick Splitting Machine for Granite
Automatic Natural Face Cubic Stone Brick Splitting Machine for Granite


Online working videos:
You can check the video to see how this machine making cubic stone on Youtube:
https://youtu.be/iwDapXxmC5k

Recommend:
BESTLINK HYDRAULIC STONE SPLITTING MACHINE
Bestlink's BRT series hydraulic stone splitting machine is suitable for splitting all types of natural and artificial stones, cube stone/curb stone/wall stone/blockstone/tiles/pavingstone/countertops/vanity tops.
Every splitting machine can be integrated in a production line. It could be especially designed according to your equirements.
