• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Cut Size (Lxw)：3200X2000 mm
• Max. Cut Thick：170 mm
• Table Tilting：0-85°
• Table Rotation：0-360°
• Blade Tilting：0-45°
• Max. Blade Size：625mm
• Spindle Motor：15 Kw
• Weight：7200kg
• Transport Package：Plastic Packing
• Specification：Dimention: 6x5x3 m
• Trademark：AGA
• Origin：Xiamen, Fujian, China
• HS Code：84641010
• Production Capacity：100sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Cut Size (Lxw) 3200X2000 mm Max. Cut Thick 170 mm Table Tilting 0-85° Table Rotation 0-360° Blade Tilting 0-45° Max. Blade Size 625mm Spindle Motor 15 Kw Weight 7200kg Transport Package Plastic Packing Specification Dimention: 6x5x3 m Trademark AGA Origin Xiamen, Fujian, China HS Code 84641010 Production Capacity 100sets/Month

Product Description

CNC Stone Granite Bridge Saw Machine for Countertop Tile Saw
-Model NO. : XZQQ625A

Automatic Bridge Saw for cutting granite, marble, quartz and engineered stones.
A robust bridge saw monoblock applicable for cutting and fabricating slab, counter tops, vanity top, etc.
USA Standard Made with a powerful motor 20 HP and able to cut 3200 mm length, 2000 mm width and 170 mm thick (126"×78"×6.7" L / W / H).

Advantages

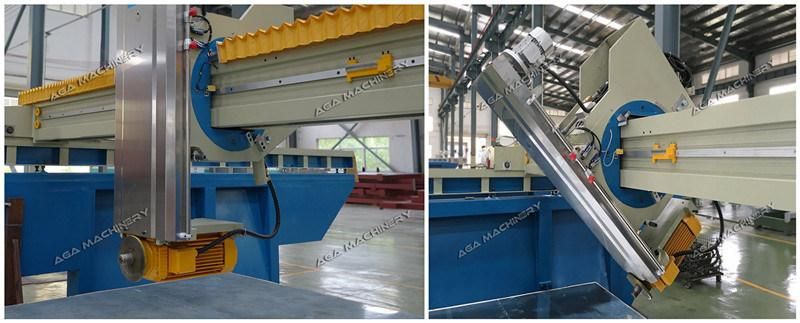

-  Blade travels on the bridge and it also provides automatic power tilting 0 - 45 degree for Miter cuts.
-  Table turns 0 - 360 degree automatically stopped any position and also tilts 0 - 85 degree Hydraulic for easy load of material.
-  This mono block bridge saw machine is computer control and with color Display Touch Screen.
-  It is able to do multiple programs for up to 99 repeat cuts automatically and also capable of manual operation.
-  Wireless remote provides ease control of the saw.
-  Laser guide and sensors give precision cuts every time.
-  Automatic water control saving every drop.
-  Movements of bridge rails are in covered oil bath ensuring smooth movements and reduced wear.
-  Main structures are made of very strong cast iron for stable running and stainless steel for protection.
-  All functions are operated on the control panel that make it very user friendly.
-  Operating Language in English and Input Sizes unit in Inch or mm.


Spesification:

Blade size	400-625mm   16"-25"
Cut length	3200mm         126"
Cut width	2000mm         78"
Cut thick	170mm            7"
Blade tilt	0 - 45°
Table rotate	0 - 360°
Table tilt	0 - 85°
Spindle motor	15kw              20HP
Size (L×W×H)	6×5×3 m
Weight	7200kg       16000lbs

Keywords:
Bridge Saw, Stone Tile Saw, Granite Marble Tile Cutter, Kitchentop Countertop Tile Saw, CNC Tile Saw, Bridge Type Tile Saw


Related machine
We are professional in making marble granite machine, such as Polishing Machine XMJ1050-16C, ZDMJ-16C,  Bridge Saw XZQQ625A, HQ400/600/700, HQ1200, Block Cutter DQ2200/2500/2800,DS1600,DL2200/2500/3000, CNC Wire Saw WS2000, Balustrade Cutting Machine DYF600, Column Cutting Maching SYF1800, Edge Polishing Machine MB3000, MB3000L, Splitting Machine P90/95, P240, Pressing Machine P72/ 80, P74, Stone Crusher PS22... ect, please visit our website for more machine pictures: agastonemachine.en.made-in-china.com .


Guarantee & After Sale Service
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.


FAQ:
1, How to pay to you ?
 T/T in advance We accept 30% deposit , 70% before shipment
2, How long is the delivery time?
For standard machines, it would be 2-5 weeks; For non-standard machines and customized machines according to client s specific requirements, it would be 10 days longer.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
4,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, What is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package
Save space as much as possible for container loading


About us:
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. The equipments have been successfully exported to world stone market in USA, Canada, Europe, MID east, Egypt, India, etc.


For more details information, please visit our website: agastonemachine.en.made-in-china.com or agastonemachine.en.made-in-china.com , thanks !
