Wanlong Automatic Continus Calibration Machine Customized Stone
Fujian Wanlong Diamond Tool Co., Ltd.- Warranty：12 Months
- Type：Stone Grinding Machine
- Control：CNC
- Automation：Automatic
- Precision：High Precision
- Application：Ceramics, Glass, Jadestone, Cement Brick, Concrete Curb, Granite, Marble, Accurate Calibration Machine
Base Info
- Model NO.：LSD LMD-1350
- Type for Grinding Machine：Disc Grinding Machine
- Grinding Machine Type：Vibration Polishing Machine
- Grinding Method：Wet Grind
- Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, Automatic Calibrating Machine
- Condition：New
- Main Motor Power：18.5,22kw
- Voltage：220,380,415V
- After Sales Service Provide：Engineer Available Service Machinery Overseas
- Max. Processing Size：850mm
- Max. Heads No.：1,2,4 Heads
- Water Consumption：10 M3,H
- Approximate Weight：4 Tons
- Transport Package：Seaworthy Wooden Case for Automatic Cutting Machin
- Specification：3750x1570x1900mm
- Trademark：Wanlong
- Origin：China
- HS Code：84649000
- Production Capacity：5000sets Per Year
Description
Basic Info.
Model NO. LSD LMD-1350 Type for Grinding Machine Disc Grinding Machine Grinding Machine Type Vibration Polishing Machine Grinding Method Wet Grind Certification API, CCC, UL, SONCAP, GOST, ISO, CE, Automatic Calibrating Machine Condition New Main Motor Power 18.5/22kw Voltage 220/380/415V After Sales Service Provide Engineer Available Service Machinery Overseas Max. Processing Size 850mm Max. Heads No. 1/2/4 Heads Water Consumption 10 M3/H Approximate Weight 4 Tons Transport Package Seaworthy Wooden Case for Automatic Cutting Machin Specification 3750x1570x1900mm Trademark Wanlong Origin China HS Code 84649000 Production Capacity 5000sets Per YearProduct Description

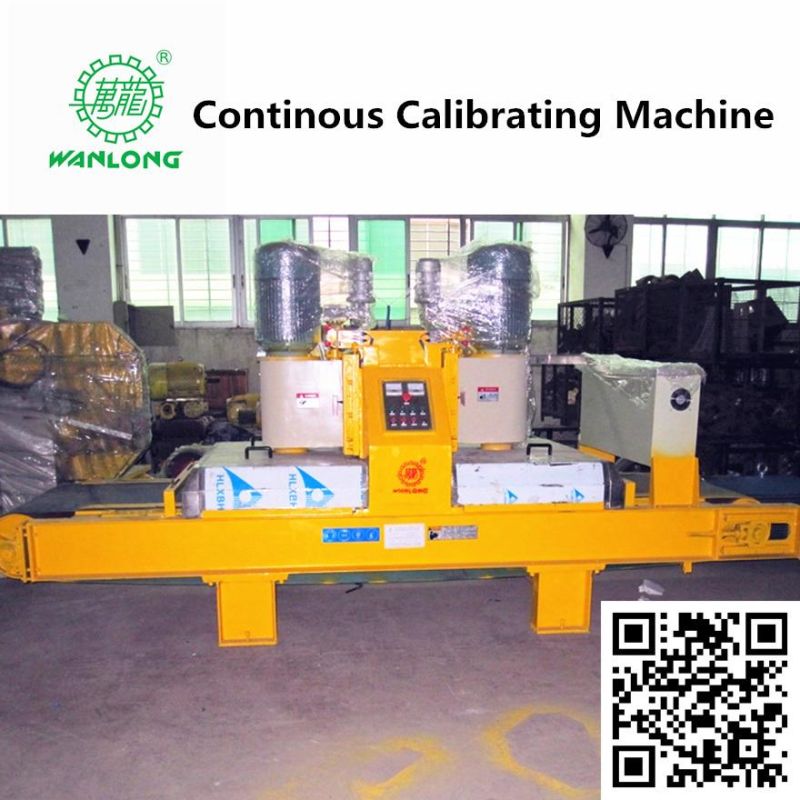

This machine is used in the production line for slab calibrating, four head can work simultaneously and each head can be adjustable respectively.Feature
1. Multi-head combination to improve polishing quality & quantity

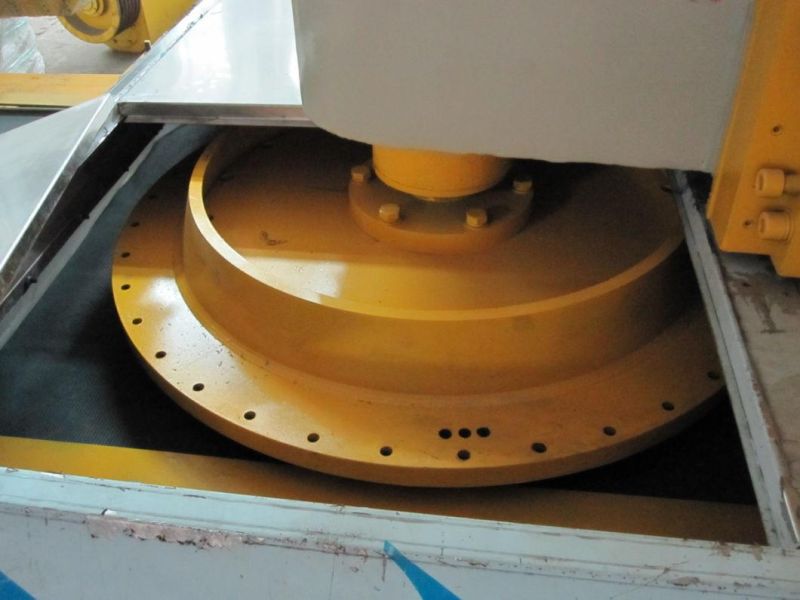

2. High speed grinding discs work separately to ensure the uniform thickness of slabs
3. Grinding feed easily adjustable
4. Solid roller base, low vibration & distortion
5. More than 2 heads available upon request.
Technical Parameter
| LSD08/4 | LSD08/2 | |
| Work thickness (mm) | 15-80 | 15-50 |
| Work width (mm) | 320-850 | 320-850 |
| Power of head motor (kw) | 18.5 | 11 |
| Water consumption (m3/hour) | 10 | 10 |
| Overall dimension/mm (LxWxH) | 6500x1400x1800 | 3750x1400x1800 |
| Appro. Weight (kgs) | 6000 | 4000 |
