• Model NO.：JCS1530HL
• Certification：CE, BV, TUV, SGS
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry, Buliding Decoration
• Customized：Customized
• Model：Large 4 Axis CNC Marble Granite Stone Cutting Mach
• Applications：Marble, Stone, Granite, Glass, Wood, Plastics...
• Working Size：800mm Diameter,1700mm Length
• Table：T-Slot with Clamps with Water Tank
• Spindle Power：7.5,11kw
• Driving：Servo Motor and Driver
• Inverter：Delta
• Control System：Syntec
• Cooling System：Water Cooling
• Oil System：Automatic
• Weight：7550kg
• Voltage：AC380V, 3phase, 50-60Hz
• Option 1：Rotary Device
• Option 2：Vacuum Cup
• Option 3：3D Scanner
• Transport Package：Protected by Film and Fastened with Metal Wires
• Specification：4 Axis
• Trademark：CHAODA
• Origin：Shandong, China
• HS Code：8465990000
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. JCS1530HL Certification CE, BV, TUV, SGS Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry, Buliding Decoration Customized Customized Model Large 4 Axis CNC Marble Granite Stone Cutting Mach Applications Marble, Stone, Granite, Glass, Wood, Plastics... Working Size 800mm Diameter,1700mm Length Table T-Slot with Clamps with Water Tank Spindle Power 7.5/11kw Driving Servo Motor and Driver Inverter Delta Control System Syntec Cooling System Water Cooling Oil System Automatic Weight 7550kg Voltage AC380V, 3phase, 50-60Hz Option 1 Rotary Device Option 2 Vacuum Cup Option 3 3D Scanner Transport Package Protected by Film and Fastened with Metal Wires Specification 4 Axis Trademark CHAODA Origin Shandong, China HS Code 8465990000 Production Capacity 100 Sets / Month

Product Description

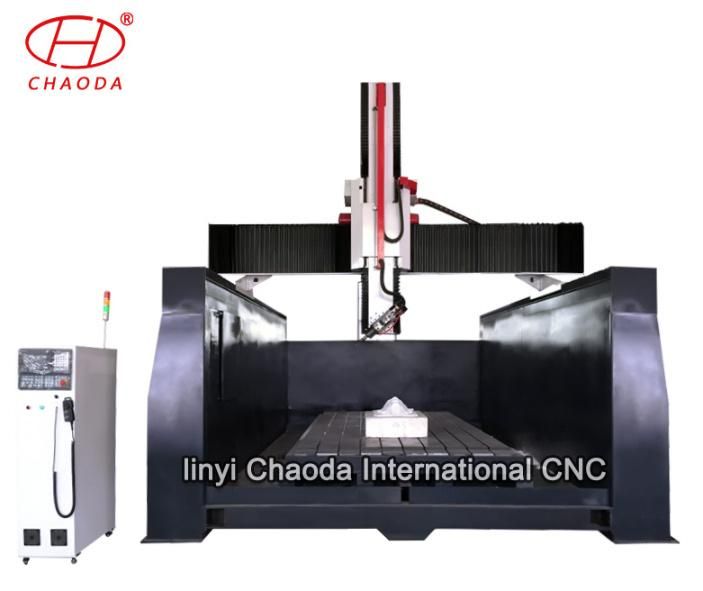

Large 4 Axis CNC Marble Granite Stone Cutting Machine With Rotating Spindle

• All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability.
• Heavy duty steel structure, keep machine with very good stability.
• big power spindle,good at engraving,cutting,polishing,drilling and milling.
• Spindle of the machine rotate ±90 degree,can make engraving on different angles,like arc-surface milling,bending surface machining...
• Adopt linear type automatic tool changer with 8 tools magazine, spindle change tools automatically,no need manual work.
• Water proof,dust proof.

Working size	1500*3000*1000mm*±90 degree  (working size could be customized)
Lathe bed structure	heavy duty steel wall structure
Table	T-slot with clamps,with water tank
X structure	Rack and pinion, linear square rail
Y structure	Rack and pinion, linear square rail
Z structure	Ball screw, linear square rail
Resolution	0.001mm
Max. travelling speed	0-55000mm/min
Max. working speed	0-20000mm/min
Spindle power	11KW water cooling ATC spindle (option: 7.5kw )
Tool magazine	Linear type auto tool changer,8 tools ability
Working mode	Japan YASKAWA servo motor and driver
Operating system	4 axis Syntec with handwheel
Command code	G code(*uoo,*nc,*mmg, *plt)
Working voltage	3 phase AC380V 50Hz
Running circumustance	Temperature: 0°C~45°C relative humidity: 30%~75%

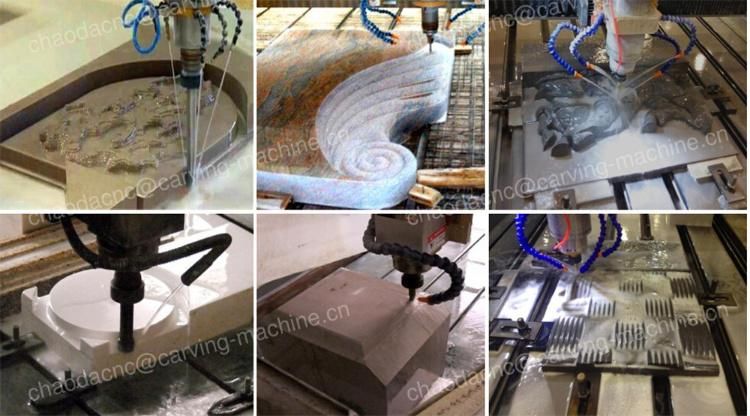

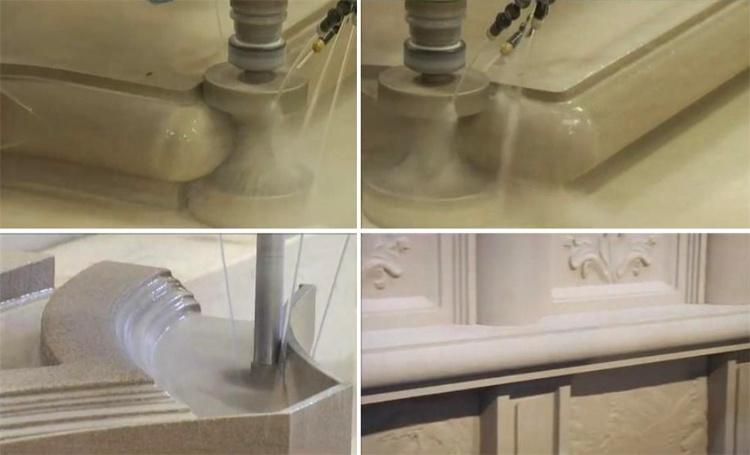

It can process many materials, like  Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone, Travertine,
uartzite, Slate, Grindstone ,Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam, Aluminum composite panel,
Aluminum block, Copper.,etc.






1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
