• Suction Pad：Round Shape, Silicone Material
• Pad Number：6 , 8 PCS, 250,300mm Diameter
• Performance：Motorized Tilting or,and Motorized Rotation
• Transport Package：Plywood Case
• Trademark：SHENGHENG
• Origin：China
• HS Code：842890
• Production Capacity：200 Sets,Year

Basic Info.

Suction Pad Round Shape, Silicone Material Pad Number 6 / 8 PCS, 250/300mm Diameter Performance Motorized Tilting or/and Motorized Rotation Transport Package Plywood Case Trademark SHENGHENG Origin China HS Code 842890 Production Capacity 200 Sets/Year

Product Description

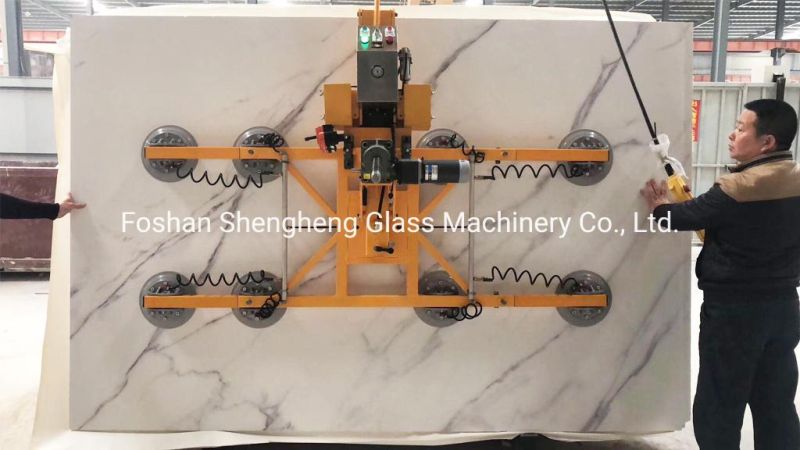

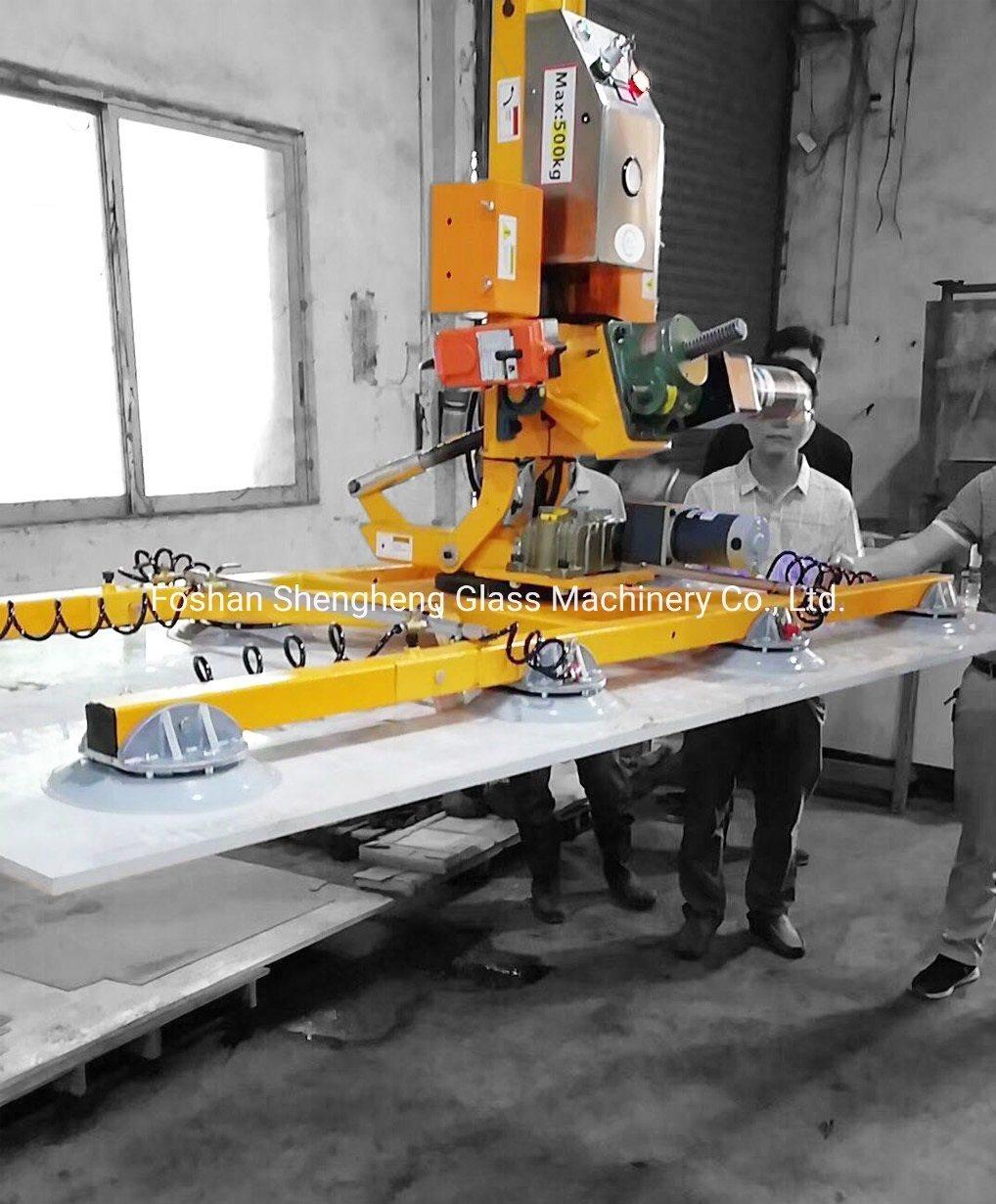

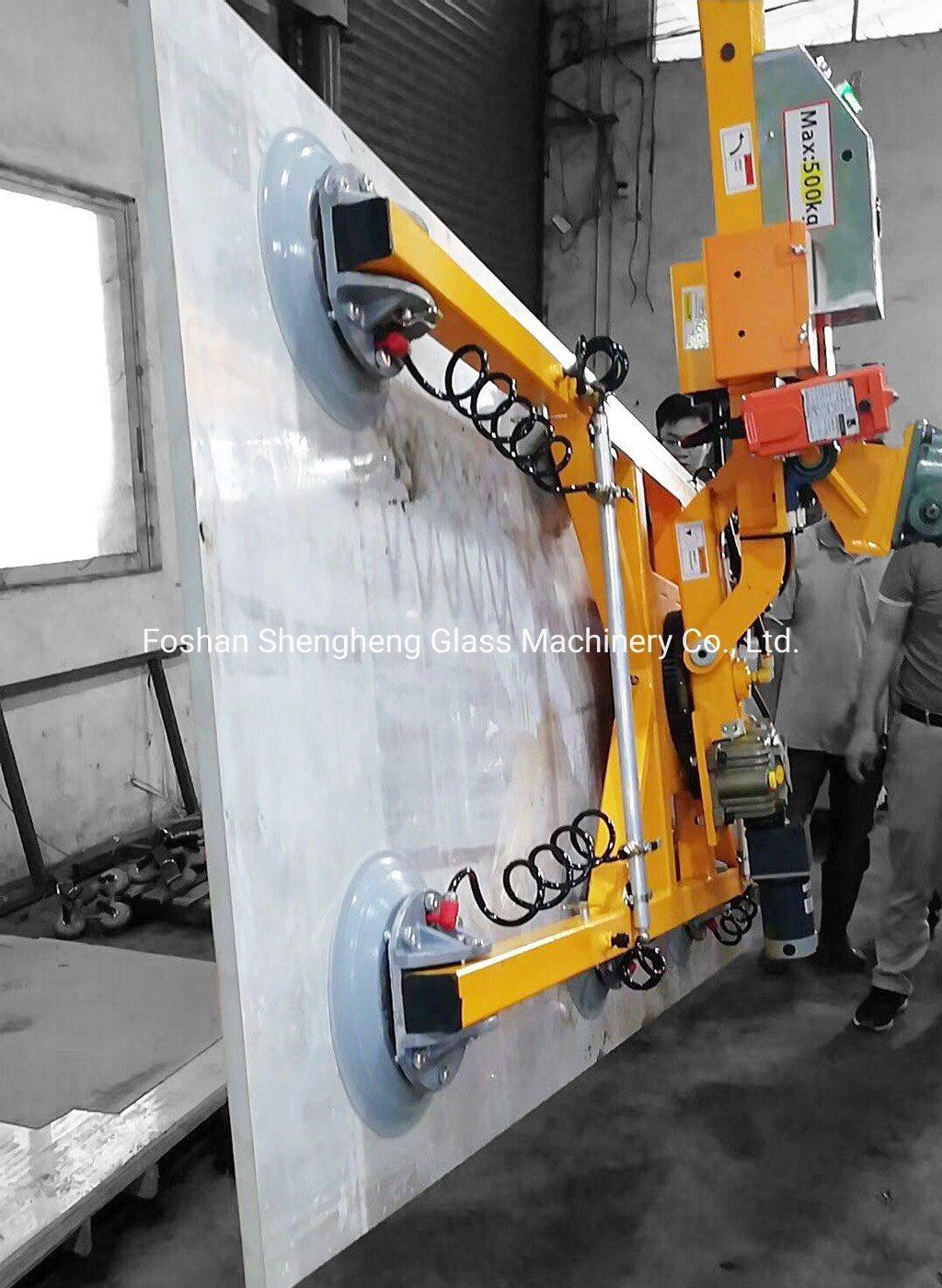

A good device for handling and moving large sizes of ceramic tiles / porcelain tiles onto the processing machine or packing crates.

Hanged and moved under the overhead crane or gantry.

ABOUT US
SHENGHENG Company is located in Foshan China, where a hub for ceramic tiles and the world's capital of tiles, we provide and serve many ceramic tile producers and wholesalers.

Our company is specializing in researching and manufacturing various kinds of lifting equipment, such as electric vacuum lifters, pneumatic vacuum lifters, robot manipulators and lightweight cranes, which widely used and applied in the processing and production of stone and ceramic industries.


MAIN FEATURES

1. A good choice for handling and transporting stone slabs and porcelain tiles from storage to the cutting table, or other processing machines.
2. A good helper for transporting and stacking marble slabs and ceramic tiles actively and orderly.
3. Hanged on the chain hoist or wire-rope hoist of the overhead cranes, X-Y lightweight cranes and slewing cranes.
4. As per the actual working application and usage habit, several kinds of energy sources including D.C battery power and A.C. electric power can be used or combined for vacuum generation and handling the loads.
5. A variety of suction frames are provided to match up with different slab/tile dimensions and loads.
6. Based on the handling requirements, different movements can be chosen and combined to effect manually or electrically.
7. Customized lifting equipment solution can be mounted or attached on the forklift.

TECHNICAL DATASHEET

Max. panel sizes	Depending on the dimension of the suction frame and panel thickness, suggested up to 3,600 x 2,400 mm
Stone type	Marble/granite/ceramic slabs & tiles
Load Capacity	500 kg Other loads are customized
Hoist Device	Chain hoist, wire-rope hoist or forklift (customer provided)
Hoist movement	Crane hook 360°manually or fork motions
Suction frame movements	Rotating 360°, manually / electrically  Tilting  0-90°, manually / electrically
Suction frame	Rectangular or X-shaped with/without telescopic extensions
Vacuum generation	D.C vacuum pump or A.C vacuum pump
Energy supply	D.C power 12V / 24V battery  A.C power 220~240V, 380-400V, others
Parts Options	Optical / acoustical warning Radio remote control Dual power Vacuum reservoir Telescopic extensions / beams Crane hook Attachment for forklift or cranes

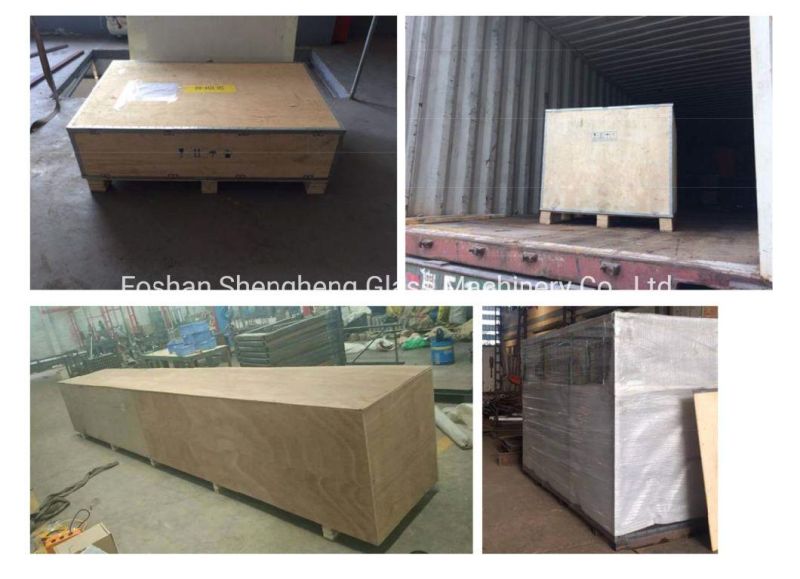

EXPORT PACKING
