CNC Router Machine Woodworking Machine Carbinet CNC Engraving Machine

Jinan Allwin CNC Machinery Co., Ltd.
  • Function:Hollow out, Cutting, Line Engraving, Lettering
  • Application Material:Wood
  • Automation:Automatic or Manual for Opitional
  • Control:CNC
  • Motor Power:High Power
  • Engraving Head Speed Adjustability:Wide Adjustable Range

Base Info

  • Model NO.:1530
  • Certification:CE, ISO, API
  • Current:AC
  • Application:Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
  • Customized:Customized
  • Service:Offering Oversea Service
  • Vo:220,380V
  • Voltage:AC380V,50Hz
  • Rotary Axis:Optional
  • Motor and Drive:Stepper 3.5kw
  • Software:Type 3 or Artcam
  • Controller System:Weihong or DSP
  • Table:Vacuumm or Aluminum
  • After-Sales Service:Engineers Available to Service Machinery Overseas
  • Spindle:Hqd Spindle
  • Transport Package:Woodencase
  • Specification:1500X3000X200
  • Trademark:ALLWIN
  • Origin:Jinan, Shandong
  • HS Code:8465990000

Description

NO.

Description

Parameter

1

X,Y,Z Working Area

1500x3000x200mm

2

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

3

X,Y,Z Repositioning Accuracy

±0.03mm

4

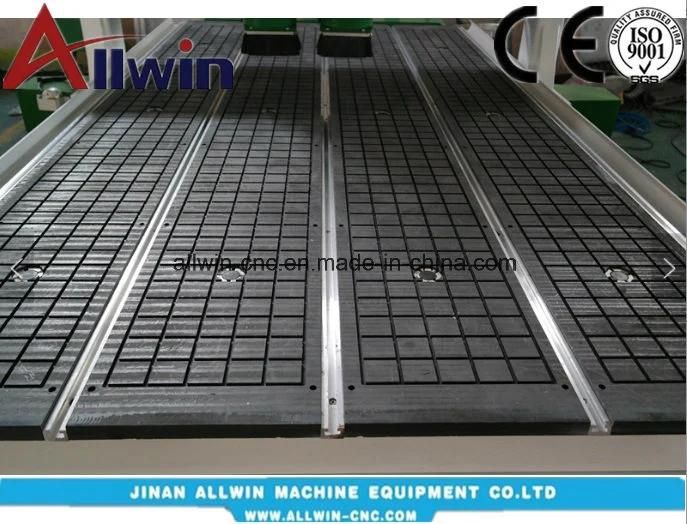

Table Surface

Vacuum or T-slot Table

5

Frame

Welded Structure

6

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Guide

7

Z Structure

Hiwin Rail Linear Guide and TBI Ball Screw

8

Max. Power Consumption

(Without Spindle)  2.5kw~3Kw

9

Max. Rapid Travel Rate

25000mm/min

10

Max. Working Speed

18000mm/min

11

Spindle Power

3KW water cooling spindle

12

Spindle Speed

0-24000RPM

13

Drive Motors

Stepper Motor

14

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V)

15

Command Language

G Code

16

Operating System

DSP System (Options: Ncstudio/Mach3 PC Software)

17

Computer Interface

USB

18

Flash Memory

128M(U Disk)

19

Collet

ER25

20

X,Y Resolution

<0.01mm

21

Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

22

Running Environment  Temperature

0 - 45 Centigrade

23

Relative Humidity

30% - 75%

24

Inverter

Delta/Fuling

25

Electrical components

Schneider

26

Limit switch

OMRON

27

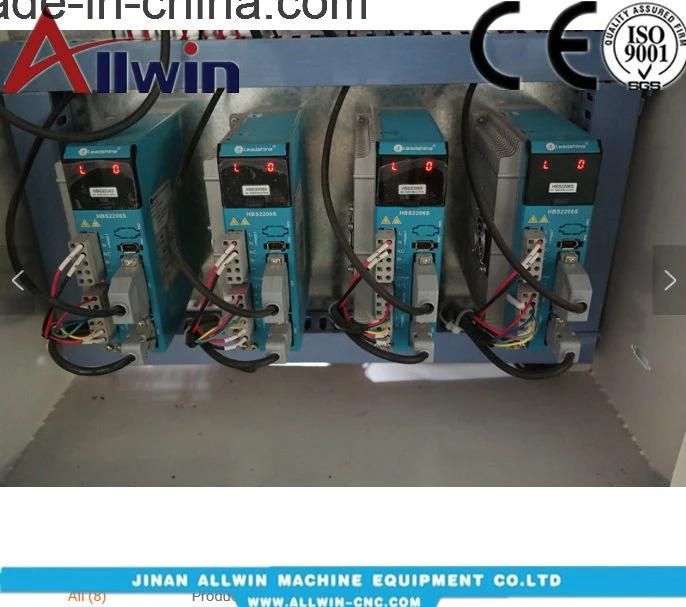

Driver

Leadshine or Yako

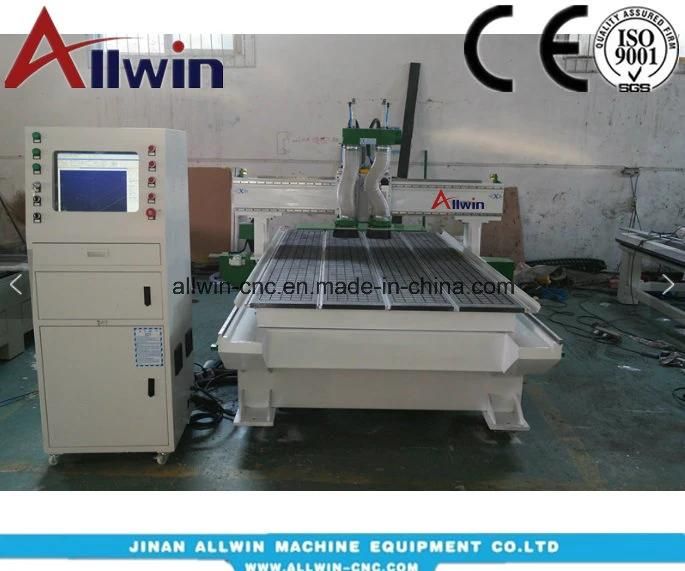

 CNC Router Machine Woodworking Machine Carbinet CNC Engraving Machine

CNC Router Machine Woodworking Machine Carbinet CNC Engraving Machine
CNC Router Machine Woodworking Machine Carbinet CNC Engraving Machine

Advantages:

1. Free samples(I can help you process samples for free.)

2.Advertising/artwork/woodworking

3.CE, SGS,ISO

4.Customized:Yes

5.High sensitivity

6.High efficiency

7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support

Application Industry and Materials:

Advertising industury:Cnc router can engrave all kinds of signage,logo  products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards

(drilling and engraving),Double color boards,acrylic etc.

Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,

MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside

cabinets,folding screen etc.

Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
CNC Router Machine Woodworking Machine Carbinet CNC Engraving Machine

Packing & shipment :

Save space as much as possible for container loading.

  • Inside:Water-proof Plastic Film Package With Foam Protection
  • Outside:Solid Seaworthy Wood Box Package
  • Below: Steel Tube
CNC Router Machine Woodworking Machine Carbinet CNC Engraving Machine
FAQ:
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents
