• Model NO.：PEX250*1000
• Finished Surface：Thread Process
• Certification：CE, ISO, SGS
• Condition：New
• Color：Yellow
• After-Sale Service：Training, Technical Support, etc.
• Qapplication：Ore
• Certificate：ISO9001: 2000
• Warrenty：1 Year
• Installation：Under The Guidance of Engineer
• Delivery Time：7-15 Working Days
• Price Advantage：Own Factory Can Offer Low Factory Price
• Product Condition：New
• Transport Package：International Packing Standard
• Specification：CE, ISO, SGS
• Trademark：TYM
• Origin：Zhengzhou City, Henan Province, China.
• HS Code：8474209000
• Production Capacity：60 Sets,Month

Basic Info.

Model NO. PEX250*1000 Finished Surface Thread Process Certification CE, ISO, SGS Condition New Color Yellow After-Sale Service Training, Technical Support, etc. Qapplication Ore Certificate ISO9001: 2000 Warrenty 1 Year Installation Under The Guidance of Engineer Delivery Time 7-15 Working Days Price Advantage Own Factory Can Offer Low Factory Price Product Condition New Transport Package International Packing Standard Specification CE, ISO, SGS Trademark TYM Origin Zhengzhou City, Henan Province, China. HS Code 8474209000 Production Capacity 60 Sets/Month

Product Description

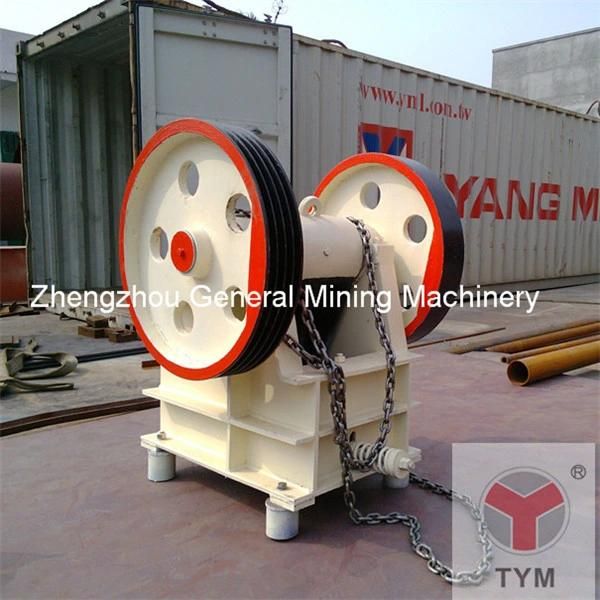

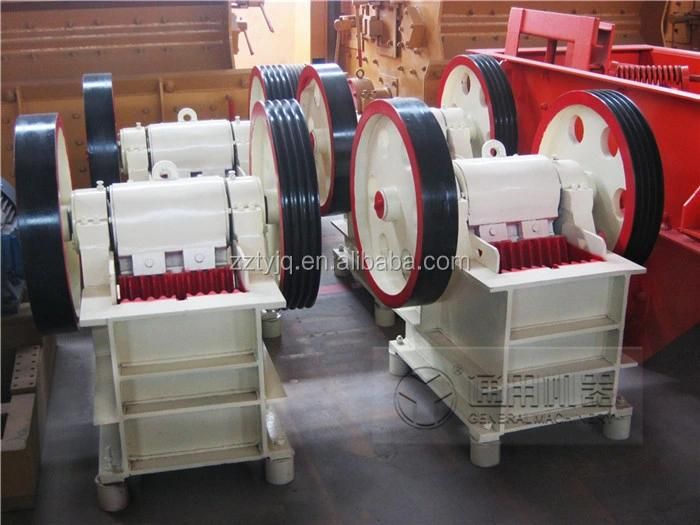

 Jaw Crusher 1.The application of Jaw Crusher:
Jaw crusher widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc.

2.Working Principle of Jaw Crusher:The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves away from fixed jaw by the pulling of rod and spring, the products such as stone after crushing will be discharged from the outlet. 3.Characteristics of Jaw Crusher:
a. High ratio of crushing
b. Homogeneous final grain size
c. Simple structure
d. Reliable working condition
e. Easy maintenance
f. Low operating cost

4.technical parameter :

Model	Size of Feeder Opening (mm)	Max. Feeding Size (mm)	Capacity (t/h)	Motor Power (KW)	Overall Dimensions (mm)	Weight   (t)
PE150× 250	150× 250	125	1-3	5.5	896× 745× 935	0.8
PE250× 400	250× 400	200	5-20	15	1430× 1310× 1340	3
PE400× 600	400× 600	350	15-60	30--37	1700× 1732× 1653	7
PE500× 750	500× 750	425	50-100	45--55	2035× 1921× 2000	12
PE600× 900	600× 900	480	60-130	55--75	2290× 2206× 2370	17
PE750× 1060	750× 1060	630	80-180	90--110	2655× 2302× 3110	29
PE900× 1200	900× 1200	750	140-260	110-132	3789× 2826× 3025	58
PEX250× 750	250× 750	210	10-40	22--30	1667× 1545× 1020	5
PEX250× 1000	250× 1000	210	15-50	30--37	1550× 1964× 1380	7
PEX250× 1200	250× 1200	210	20-60	37--45	2192× 1900× 1950	8.5


Pre-sale services:
(1) device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) Training technical personnel for clients.
(4) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the  best processes and program

Sales tracking :
(1) product acceptance.
(2) to help customers develop construction programs.

After-sale services :
(1) free to assign a dedicated service personnel, arriving at the scene and guiding  customers' installation.
(2) equipment installation.
(3) on-site training of operators.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction
