• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Cut Length：3200mm
• Cut Width：2000mm
• Cut Thick：170mm
• Table Tilting：0-85 Degree Vertically
• Table Rotation：0-360 Degree Stopped Any Postion
• Blade Tilting：0-45 Degree for Miter Cuts
• Transport Package：Water-Proof Package
• Specification：Dimention: 6*5*2.6m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641090
• Production Capacity：200sets,Mon

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Cut Length 3200mm Cut Width 2000mm Cut Thick 170mm Table Tilting 0-85 Degree Vertically Table Rotation 0-360 Degree Stopped Any Postion Blade Tilting 0-45 Degree for Miter Cuts Transport Package Water-Proof Package Specification Dimention: 6*5*2.6m Trademark AGA Origin Xiamen, China HS Code 84641090 Production Capacity 200sets/Mon

Product Description

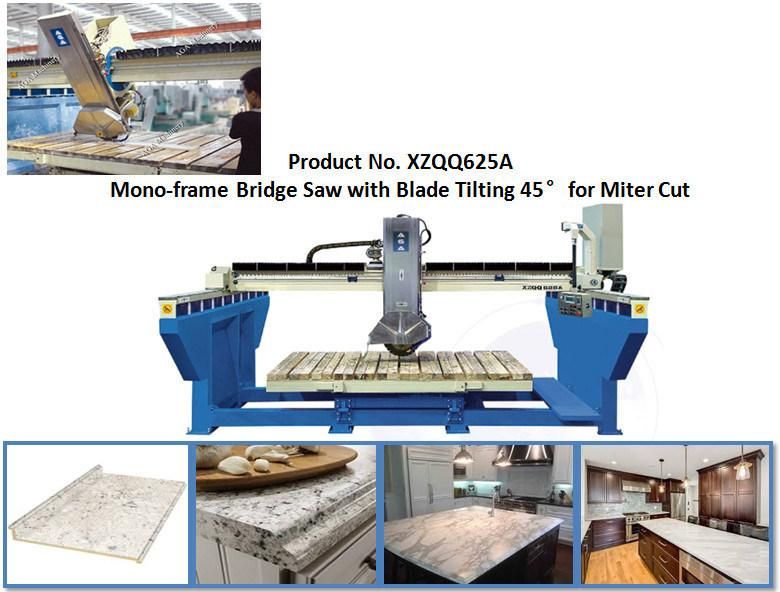

Auto CNC Machine Stone Bridge Saw Cutting Granite Marble
Model:XZQQ625A
Stone bridge saw XZQQ625A is made with a power motor 20HP, full of options including mono frame, blade tilting, table tilting and rotating, pendant control panel, touch screen, wireless remote, laser guide, hydraulic pump, etc.This bridge saw is PLC control most preferable for cutting granite, marble, quartz and other engineered stones. We send it a lot to granite marble fabricators in cutting and fabricating slabs, tiles, counter tops, bench tops, vanity tops, etc.

Stone bridge saw features:

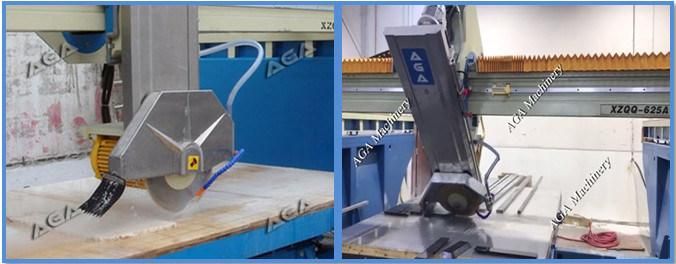

1) Blade tilting 0-45 degree for miter cut:
The blade of the bridge saw goes left and right, up and down, the bridge beam moves forward and backward. This saw moves flexible movements in X, Y, Z axis by screw. It is able to tilt 0-45 degree automatic for miter cut, very excellent performance in cutting and fabricating slabs and countertops.

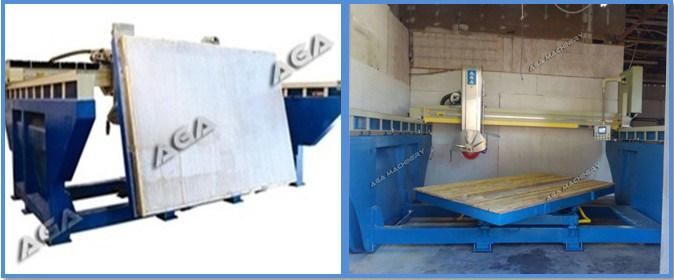

2) Table tilts0-85 degree and rotates 0-360 degree stopped any position:
Motorized saw table can be locked in any position 0-360 degree and it also tilts 0-85 degree hydraulic for easy load of stone materials.

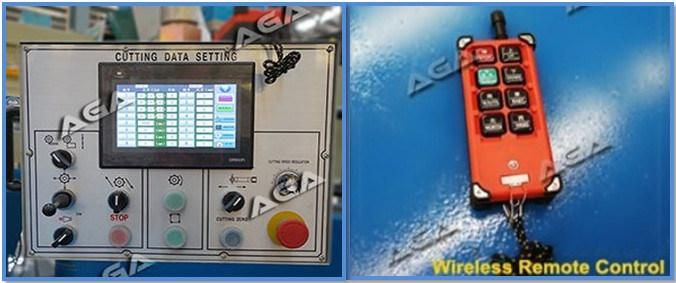

3) PLC system for easy operation, color touch screen provides live datas:
The bridge saw is made with PLC control, electric system is simple and easy to operate. Color touch screen provides live datas and all functions are operated on it that makes its users very friendly.
4)Laser cutting and wireless remote control:
This bridge saw is a laser cutting machine with a laser guide, which gives precision cuts every time and makes precise cut in +/-0.2mm.  Wireless remote provides easy control of machine.
5)Easy loading and installed:
Full saw can be loaded 20 GP container. Easy to load, transport and install thanks to its monoblock structural frame.


Laser stone bridge saw technical parameters:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

FAQ:1) Payment:
T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.


AGA Machinery:
AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test. The equipment have been successfully exported to world market in U.S.A, Canada, Europe, Mid East, Egypt, India,etc.


Key words:
Stone bridge saw, granite bridge saw, marble bridge saw, slab saw, granite saw, marble saw, stone saw, stone cutting machine, bridge cutting machine, stone bridge cutting machine, marble cutting machine, granite cutting machine, tile cutting machine, slab cutting machine, cnc cutting machine, cnc machine, tile cutter, etc.



If you have any questions please feel free to inform us, we're more than happy to serve you!
