• Model NO.：PE150*250
• Finished Surface：Cut Off Tool
• Certification：CE, ISO, SGS
• Condition：New
• Color：Iron Grey
• Size of Feeder Opening：150*250mm
• Max. Feeding Size：125mm
• Size of Output：10-40mm
• Capacity：1-3t,H
• Motor Power：5.5kw
• Overall Dimension：896*745*935
• Weight：0.8t
• Installation：Under The Guidance of Engineer
• After-Sale Service：Training, Technical Support, etc.
• Warrenty：1 Year
• Transport Package：International Packing Standard
• Specification：ISO, CE, SGS Certificate.
• Trademark：TYM
• Origin：China
• HS Code：8474201000
• Production Capacity：60 Sets,Month

Basic Info.

Model NO. PE150*250 Finished Surface Cut Off Tool Certification CE, ISO, SGS Condition New Color Iron Grey Size of Feeder Opening 150*250mm Max. Feeding Size 125mm Size of Output 10-40mm Capacity 1-3t/H Motor Power 5.5kw Overall Dimension 896*745*935 Weight 0.8t Installation Under The Guidance of Engineer After-Sale Service Training, Technical Support, etc. Warrenty 1 Year Transport Package International Packing Standard Specification ISO, CE, SGS Certificate. Trademark TYM Origin China HS Code 8474201000 Production Capacity 60 Sets/Month

Product Description

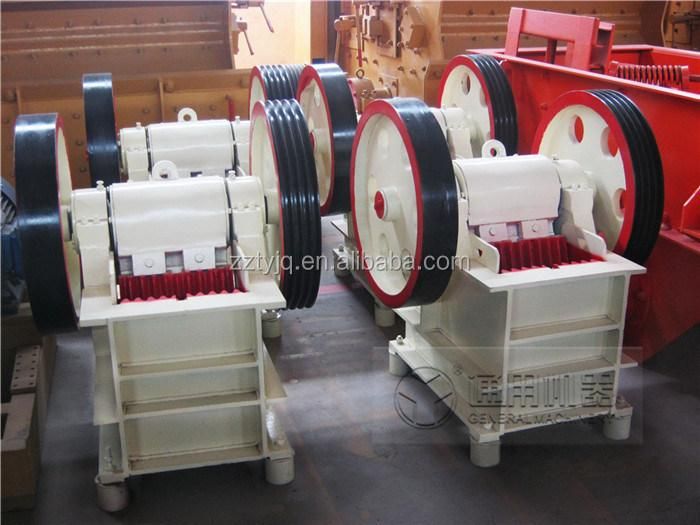

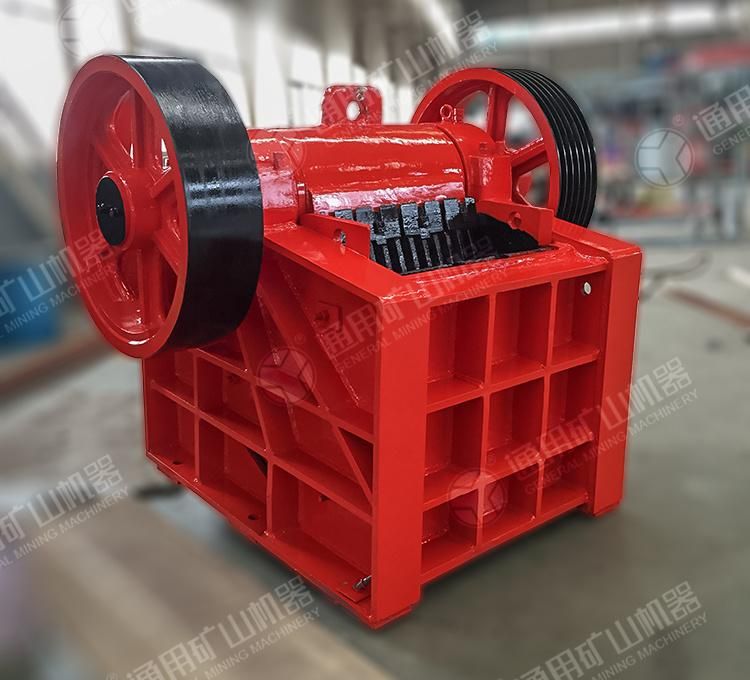

 Hot sale Jaw Crusher/Mining Machine/Cone Crusher/Limestone Crusher  1.The application of Jaw Crusher:
Jaw crusher widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc.

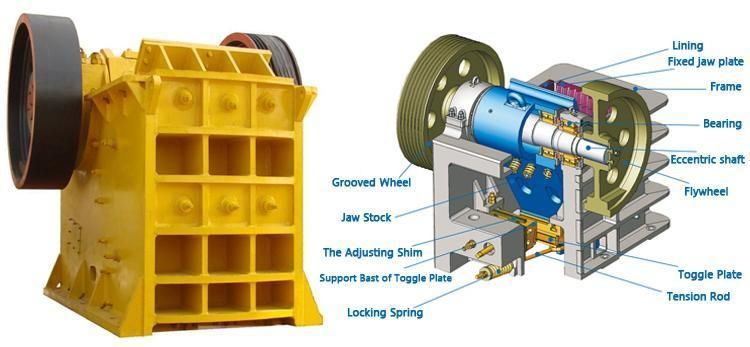

2.Working Principle of Jaw Crusher:
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves away from fixed jaw by the pulling of rod and spring, the products such as stone after crushing will be discharged from the outlet.

3.Characteristics of Jaw Crusher:
a. High ratio of crushing
b. Homogeneous final grain size
c. Simple structure
d. Reliable working condition
e. Easy maintenance
f. Low operating cost

4.Technical parameter

Model	Size of Feeder Opening (mm)	Max. Feeding Size (mm)	Capacity(t/h)	Motor Power (KW)	Overall Dimensions (mm)	Weight   (t)
PE150× 250	150× 250	125	1-3	5.5	896× 745× 935	0.8
PE250× 400	250× 400	200	5-20	15	1430× 1310× 1340	3
PE400× 600	400× 600	350	15-60	30--37	1700× 1732× 1653	7
PE500× 750	500× 750	425	50-100	45--55	2035× 1921× 2000	12
PE600× 900	600× 900	480	60-130	55--75	2290× 2206× 2370	17
PE750× 1060	750× 1060	630	80-180	90--110	2655× 2302× 3110	29
PE900× 1200	900× 1200	750	140-260	110-132	3789× 2826× 3025	58
PEX250× 750	250× 750	210	10-40	22--30	1667× 1545× 1020	5
PEX250× 1000	250× 1000	210	15-50	30--37	1550× 1964× 1380	7
PEX250× 1200	250× 1200	210	20-60	37--45	2192× 1900× 1950	8.5

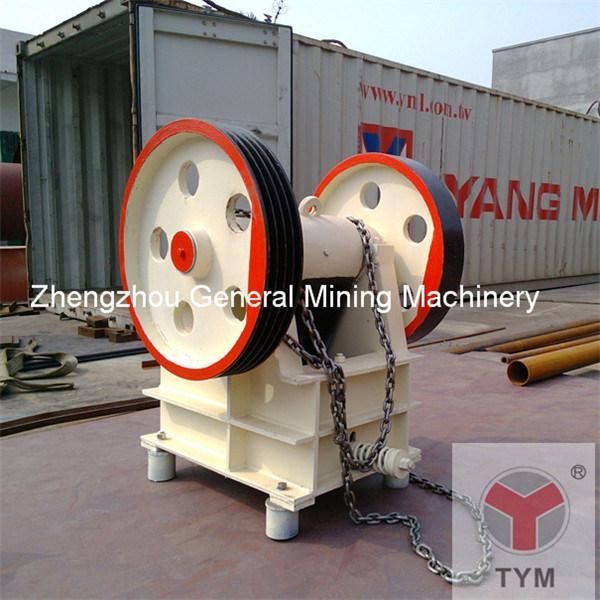

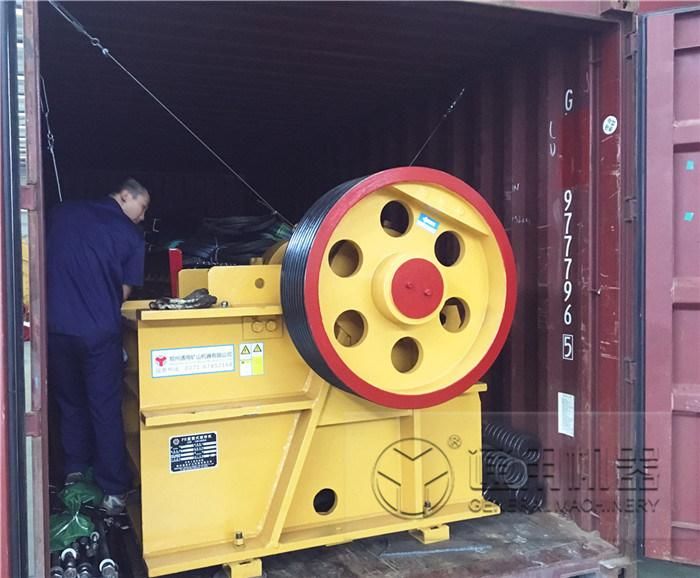

Packing and shipping
Standard parts are packed in the wooden boxes, and the big parts are packed with plastic membrane.The whole machine is loaded in the container.We can also pack them according to your requirement.
