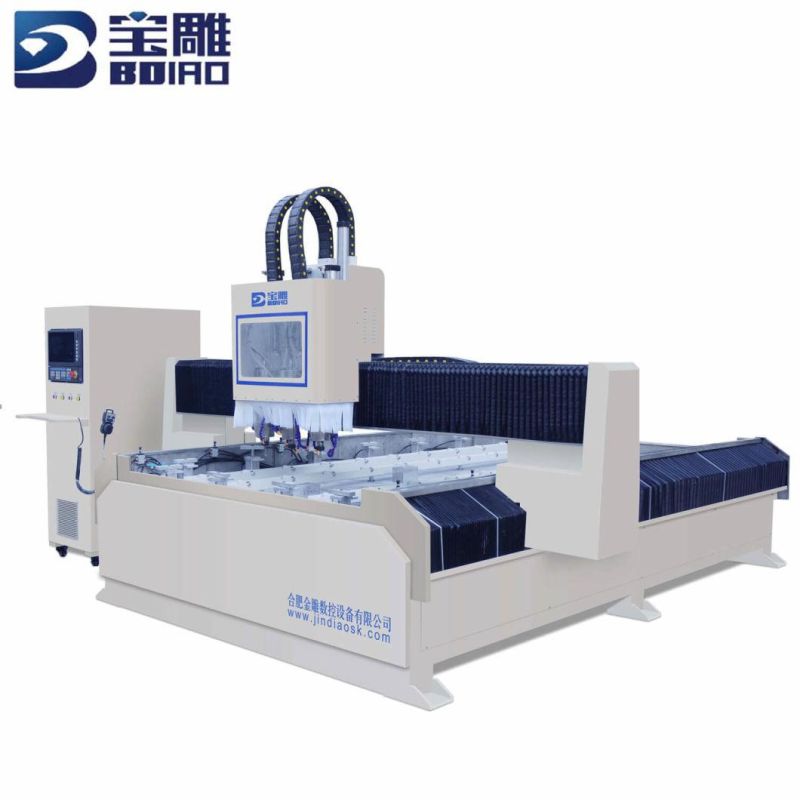

Atc CNC Engraving Machining Center/Stone CNC Router Drilling Machine
Hefei Aquila CNC Equipment Co., Ltd.- Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
- Application Material：Marble
- Automation：Automatic
- Control：CNC
- Motor Power：High Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
Base Info
- Model NO.：BD1630
- Certification：CE, ISO, GOST, SONCAP, UL, CCC, API
- Current：AC
- Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
- Customized：Customized
- Driver Motor：Servo Motor
- Configuration：5.5kw Air Cooling Spindle
- Performance Classification：High-End CNC Machine Tools
- Suction Cup：6PCS
- Transport Package：Plywood Case
- Specification：1300*2500*300mm
- Trademark：Boiro
- Origin：Cn
- HS Code：8464909000
- Production Capacity：300sets,Month
Description
Basic Info.
Model NO. BD1630 Certification CE, ISO, GOST, SONCAP, UL, CCC, API Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Driver Motor Servo Motor Configuration 5.5kw Air Cooling Spindle Performance Classification High-End CNC Machine Tools Suction Cup 6PCS Transport Package Plywood Case Specification 1300*2500*300mm Trademark Boiro Origin Cn HS Code 8464909000 Production Capacity 300sets/MonthProduct Description
ATC CNC Engraving Machining Center/Stone CNC Router Drilling MachineKeywords: 15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brands: Mars, Golden Eagle, Boiro
Technicist who go abroad to offer after-sale service
Products Parameter
| Model | BD1630 Double Processes Stone CNC Router |
| Working area | 1600mm*300mm*300mm |
| Machine size | 3300mm* 3680mm*200 |
| Working accuracy | ±0.08mm |
| Re-positioning accuracy | ±0.05mm |
| Spindle Motor Power | 5.5KW water cooled |
| Spindle Rotational Speed | 8000-10000r/min |
| Oil System | Automatic Oil system |
| Suction Cup | 6 pcs |
| Table | Aviation aluminum plate + engineering plastic table top |
| Vacuum Pump | 7.5kw |
| Electric Appliance | Germany Schneider |
| Reducer | Planetary reducer |
| Hand Wheel | Electronics Hand Wheel |
| Guide Rail | Taiwan imported linear guide rail PMI |
| Drive System | X/Y axis helical rack & pinion, Z axis Taiwan ball screw |
| Drive Motor | Stepper motor (Servo motor is optional) |
| Inverter | Fuling/ Zoncn |
| Dictate Format | G-Code / HPGL |
| Working Voltage | AC380V 3PH 50HZ |

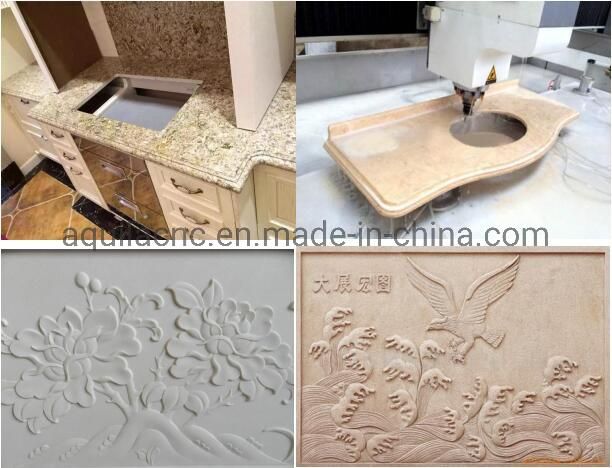

Application

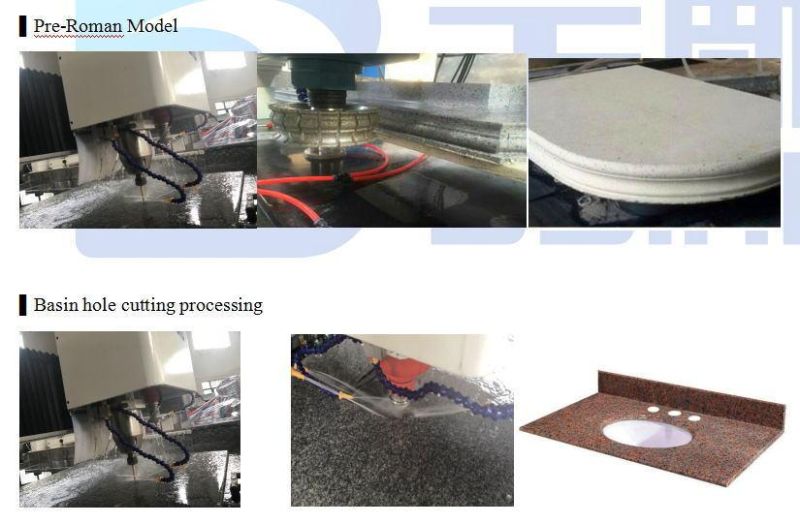

Widely used in quartz stone, marble, granite and other materials made of countertop, wash basin, shaped lines, grinding and cutting process.
