Stone Tombstone Marble Granite CNC Engraving Machine/Wood CNC Router Carving Router Machine

Jinan Zhongke CNC Equipment Co., Ltd.
  • After-sales Service：24 Hours Service
  • Warranty：1 Year
  • Function：Line Engraving, Lettering, Carving
  • Application Material：Marble
  • Automation：Automatic
  • Control：CNC

Base Info

  • Model NO.：1325
  • Motor Power：High Power
  • Engraving Head Speed Adjustability：Wide Adjustable Range
  • Certification：CE
  • Current：AC
  • Application：Glass, Stone Industry
  • Customized：Customized
  • Working Area：1300*2500*300mm
  • Spindle：Water Cooling Spindle
  • Spindle Speed：0-24000rpm
  • Table：Aluminum T-Slot Table
  • Transmission：Helical Rack
  • Motors：Stepper Motor
  • Control System：Ncstudio Control System or DSP
  • Inverter：Best Brand
  • Delivery Time：15 Working Days
  • Guide Rail：Taiwan Hiwin Square Guide Rails 25mm
  • Collects：3 Pieces
  • Cutters：15 Pieces
  • Water Pump：2 Pieces
  • Water Tank Table：Included
  • Transport Package：Exporting Plywood Package
  • Specification：CE
  • Trademark：ZHONGKE
  • Origin：China
  • HS Code：8465990000
  • Production Capacity：100 Sets,Month

Description

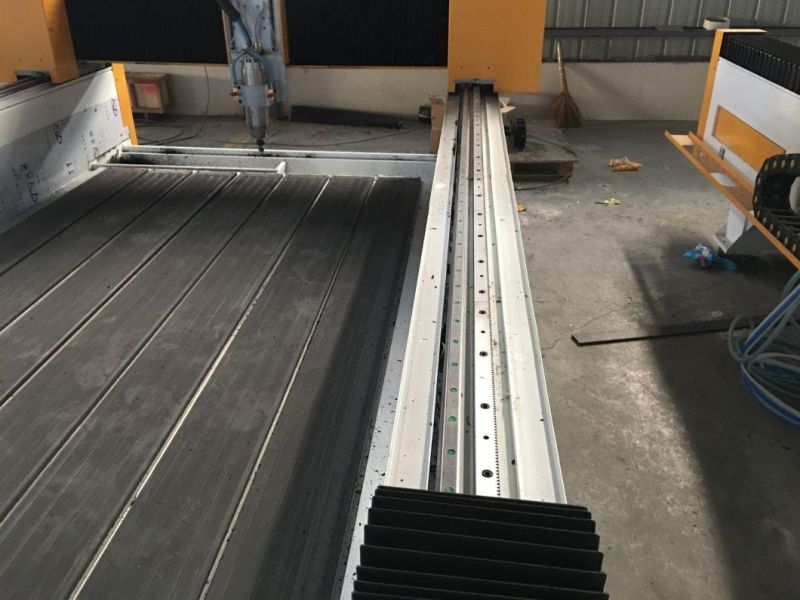

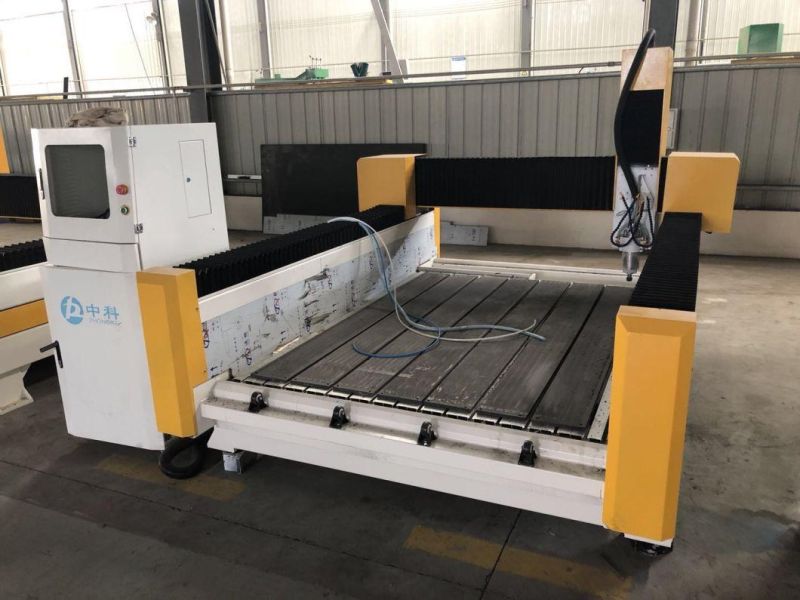

Stone Tombstone Marble Granite CNC Engraving Machine/Wood CNC Router Carving Router MachineThick steel welded bed structure,heavier structure that can held the heavier stone materialTaiwan HIWIN square guide rails 25mm size
Helical rack transmission for X and Y axis

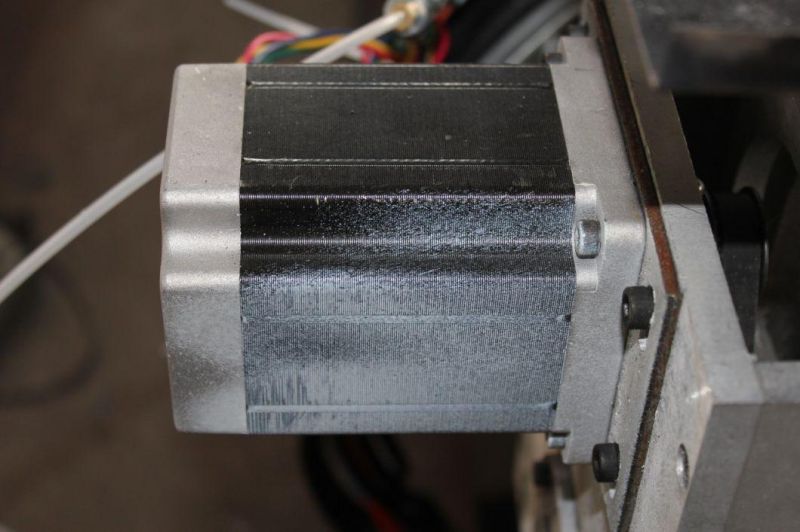

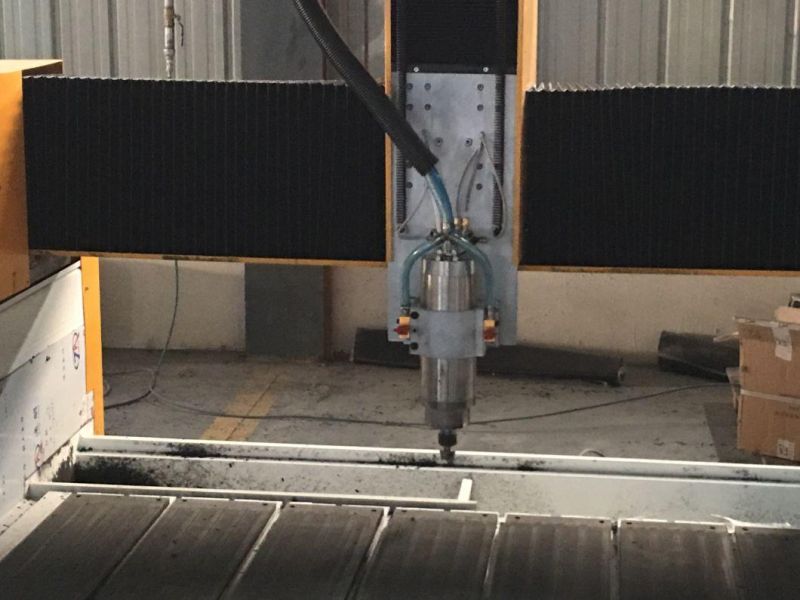

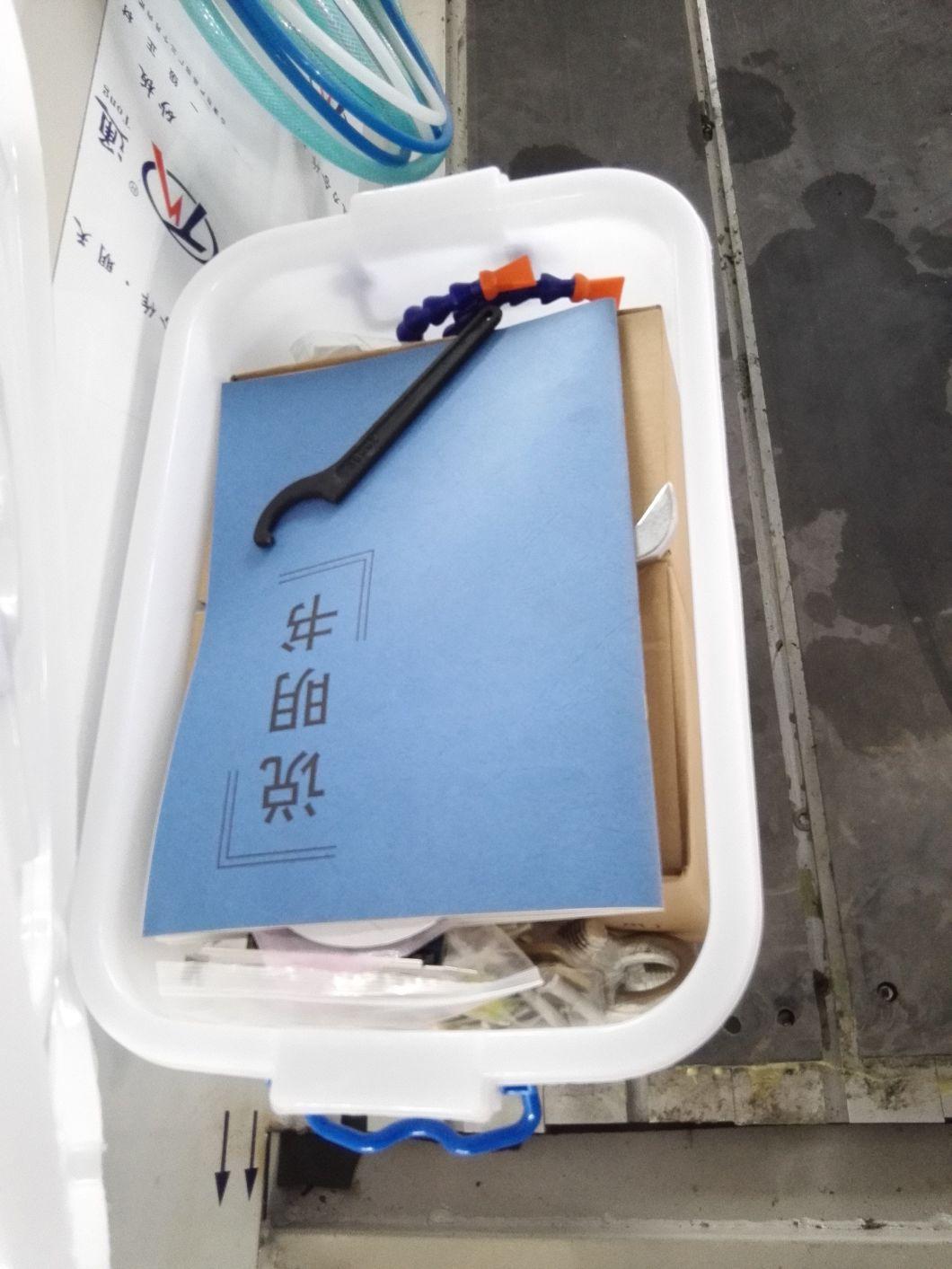

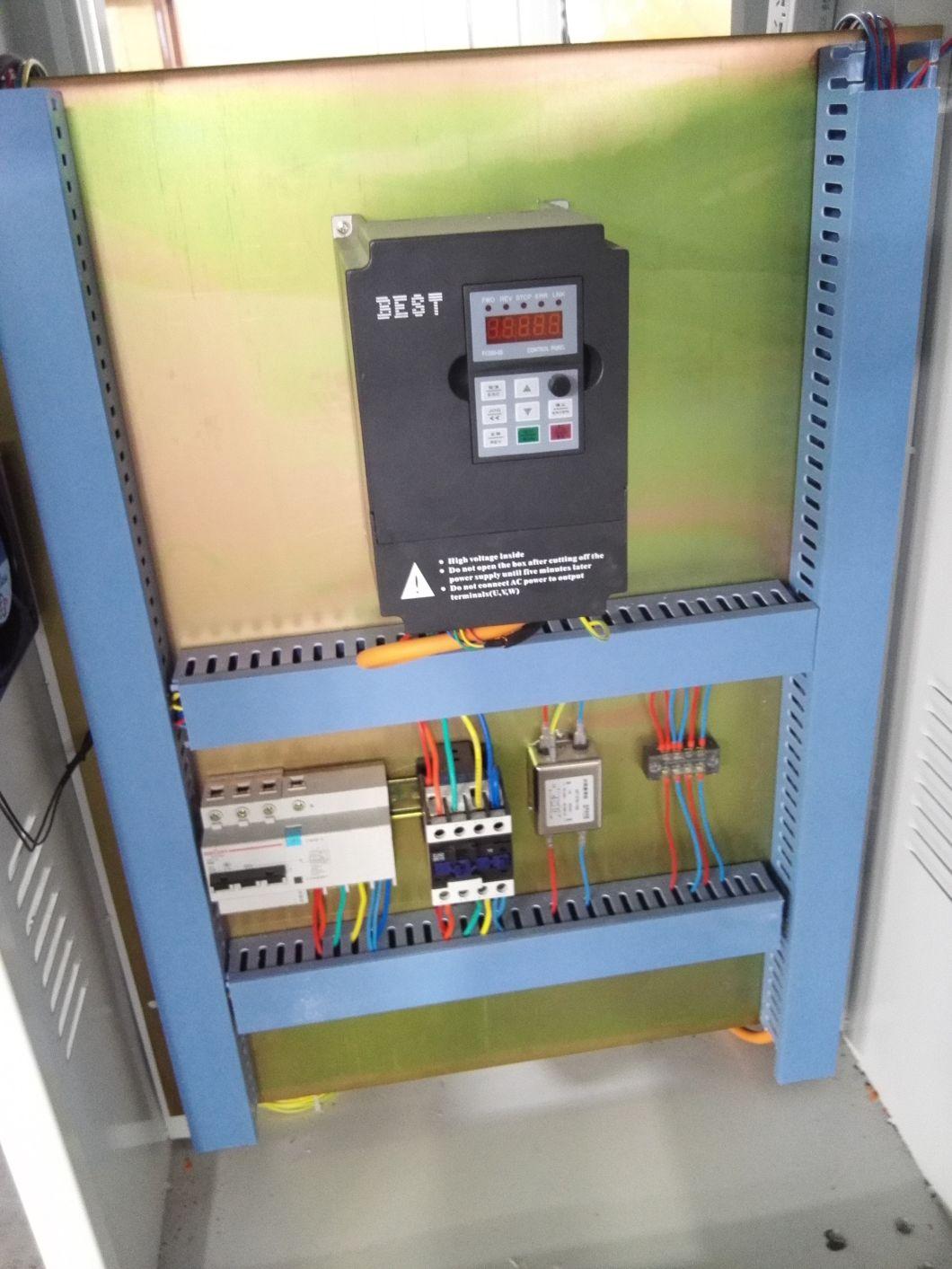

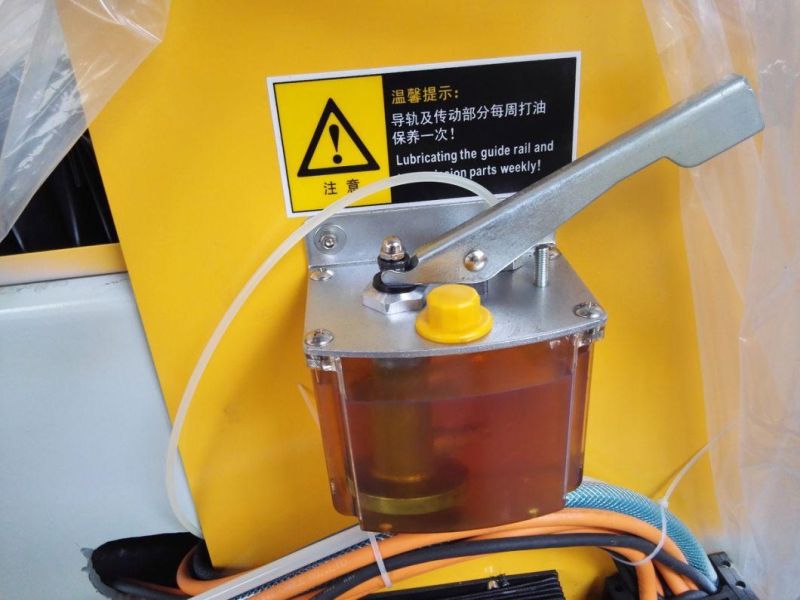

Taiwan TBI ball screw for Z axisStone Tombstone Marble Granite CNC Engraving Machine/Wood CNC Router Carving Router MachineStone Tombstone Marble Granite CNC Engraving Machine/Wood CNC Router Carving Router Machine3.2KW water cooling spindle, can be optional  4.5KW,  5.5KW, 7.5KW, etc450B stepper motor and Leadshine 860H driverStone Tombstone Marble Granite CNC Engraving Machine/Wood CNC Router Carving Router MachineStone Tombstone Marble Granite CNC Engraving Machine/Wood CNC Router Carving Router MachineHandle pressing model oil lubricating systemBEST brand inverter, control boxStone Tombstone Marble Granite CNC Engraving Machine/Wood CNC Router Carving Router MachineStone Tombstone Marble Granite CNC Engraving Machine/Wood CNC Router Carving Router MachineTool box (including 3 collects and 20 cutters, water pump 2 pieces, key tools,etc)



Specification



Model

ZK-1325

Machine lathe

Welded thick steel bed structure

Work dimensions

1300*2500*300mm

Max. feeding height

300mm or bigger

Working table

Aluminum T-slot table with stianless steel water tank

Guide way

Taiwan HIWIN square guide rails 25mm

Driving mode

XY-axis rack pinion, z-axis ball screw

Mechanical precision

0.02mm

Repositioning accuracy

0.05mm

Max. Speed

10m/min

Working speed

0-6m/min

Driving motor

stepper motor, can be optional servo motor, no matter China brand or Japanese brand

Software

Type 3, Art cut, Art cam and Ucancam software

Voltage

AC 380V 50Hz or 220V 50Hz

Spindle

3-7.5KW water cooling spindle, can be optional as your material thickness

Spindle speed

0 - 24,000rpm/min

Blade diameter

3.175mm, 4mm, 6mm, 8mm, 10mm, 12mm, 12.7mm

Control system

Ncstudio control card system or DSP

Command

G code, u00, mmg, plt

Auxiliary device

Rotary chuck

Certification

CE

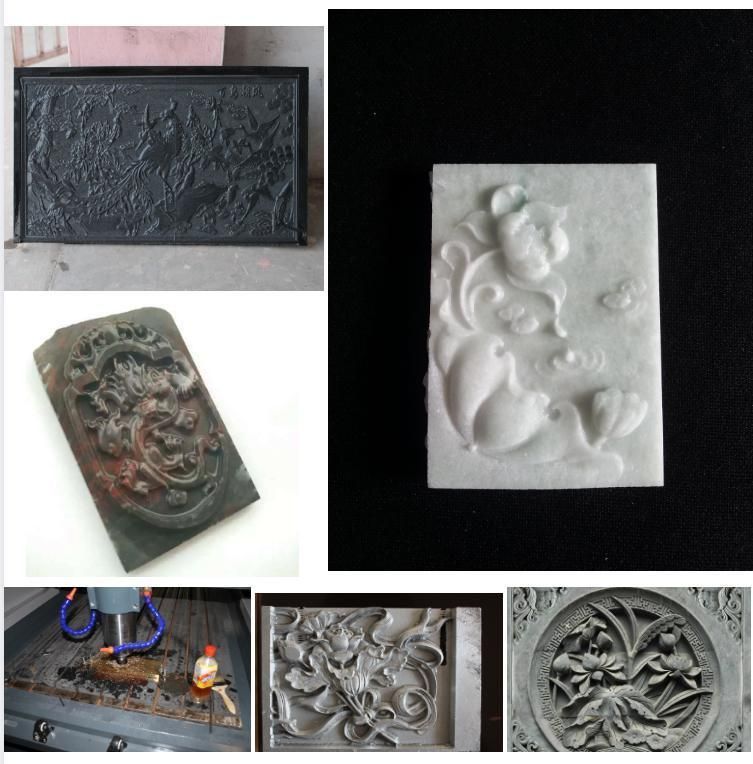

Sample photos
Stone Tombstone Marble Granite CNC Engraving Machine/Wood CNC Router Carving Router MachineStone Tombstone Marble Granite CNC Engraving Machine/Wood CNC Router Carving Router Machine

If you want to engrave stone column material, then you need add the rotary attachment
