• Model NO.：VSI-550
• Finished Surface：Outer Surface Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Creamy White
• Motor Power：45kw
• Installation：Engineer Guide
• Warranty：12 Months
• Transport Package：Wooden Box Packing and Nude Packing
• Specification：4.78t
• Trademark：ATAIRAC
• Origin：China
• HS Code：847420900
• Production Capacity：30 Sets,Month

No.ModelMax. feed size
(mm)Impeller rotate speed
(rpm)Power
(kw)Throughput capacity
(t/h)Weight
(kg)1VSI-550302258-260030-4524-6047802VSI-700351775-196555-11055-12075003VSI-850II501320-1720150-32075-345115004VSI-1000II601240-1460320-500200-385170005VSI-1200II601040-1300500-630300-71522700

Optional Configuration
(1) Feeding control device
Manual hydraulic pump is optional to adjust the flow into impeller, at the same time, by adjusting the vertical position of distributor plate, the proportion of impeller feeding flow and cascade flow into crushing chamber could be controlled accurately.
(2) Simple and easy-to-use lifting device
Hanging type manual or electric hoist is optional for the crusher. During crusher maintenance, this lifting device could easily and conveniently lift the upper cover, feeding hopper, distributor, impeller, main shaft, etc.
(3)Hydraulic jack-up and rotating device on the top section
The device is optional designed for this crusher, which could jack up the feeding hopper and rotate it aside.
(4)Multifunctional crushing chamber
This crusher has two crushing mechanisms: "Stone-stone" and "Stone-steel", and two mechanisms are convertible in one crushing chamber by simple parts replacement, so as to satisfy requirement of different crushing environment and raw material.

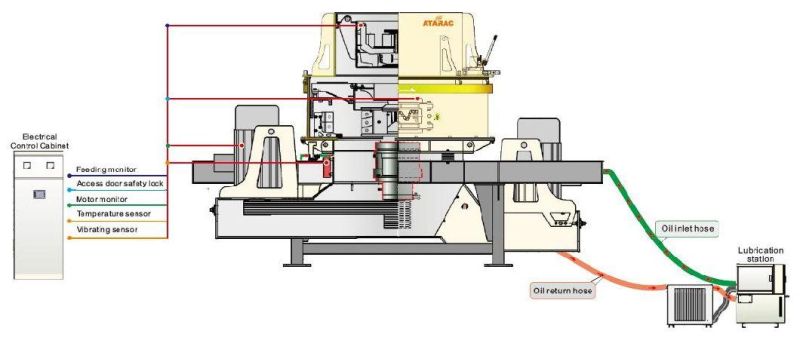

(5)Oil lubrication and automatic control system
The oil lubrication system and PLC control and inspection system is optional for installation to monitor feeding quantity, current, oil temperature, main shaft temperature, the system can also realize vibrating protection function.




Company Overview
ATAIRAC History&Scale
Established Time: In 1958
Production Base: Around 300,000 square meters
Employees No. Around 1000

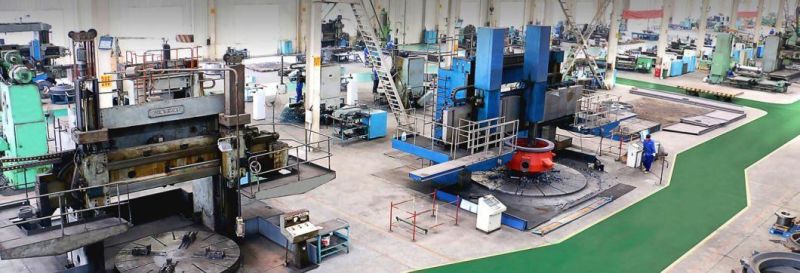

Machinery&Quality Control
(1) Over 500 sets machining equipment and inspection equipment
(2)Complete crushing machinery manufacturing industry chain
(3) Certificates: ISO, CE,BV,TUV,GOST

R&D Ability
(1)4 research and development base
(2)Around 60 design engineers
(3)Cooperating with international advanced crushing machinery companies
(4)Industrial standard maker of <Vertical Shaft Impact Crusher>
(5)Industrial standard maker of <Complex Vertical Impact Crusher>
(6)Industrial standard maker of <Autogenous Grinder>
(7)Industrial standard drafter of <Four Roller Crusher >
(8)62 Technical Patent in crushing and grinding machinery

ATAIRAC Crushing Solution
3000TPH downward stationary crushing&screen production line
800TPH downward mobile crushing&screen plant
300-2000 thousand tons per year steel slag recycling production line
Construction waste recycling production line




FAQ
1. How long is the date of delivery?
30 working days after payment of earnest money or depends on order quantity.

2. How long is the gurantee period of your company's sand making machine?
We guarantee quality of the machines  (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidence.

3. What's the after sale service of your company?
We will send engineers to guide your workers to install the machine, take trial run; the buyer should prepare the materials and tools needed, and offer necessary assistance. The actual expenses incurred for accommodation, to and from travel for the engineer, and insurance, should be borne by the buyer.
