SHXJ2200 CNC Wire Saw Machine
Yunfu City Xinda Machinery Co., Ltd.- Type：CNC Cutting Machine
- Usage：Fire Brick, Red Brick, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
- Application：Machinery & Hardware, Art & Craft, Construction, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：SHXJ2200
- Control：CNC
- Certification：ISO, CE
- Conditiaon：New
- Container Type：40HQ(HC)
- Transport Package：by Film Package
- Specification：Max cutting size: 3500× 2000× 1500mm
- Trademark：XINDA
- Origin：Yunfu City, China
- HS Code：84641090
- Production Capacity：1000
Description
9,the up and down screws are covered with a short platic pipe to hold the grease and be oiled. protected with dust cover against dust and water.
Technical parameters:

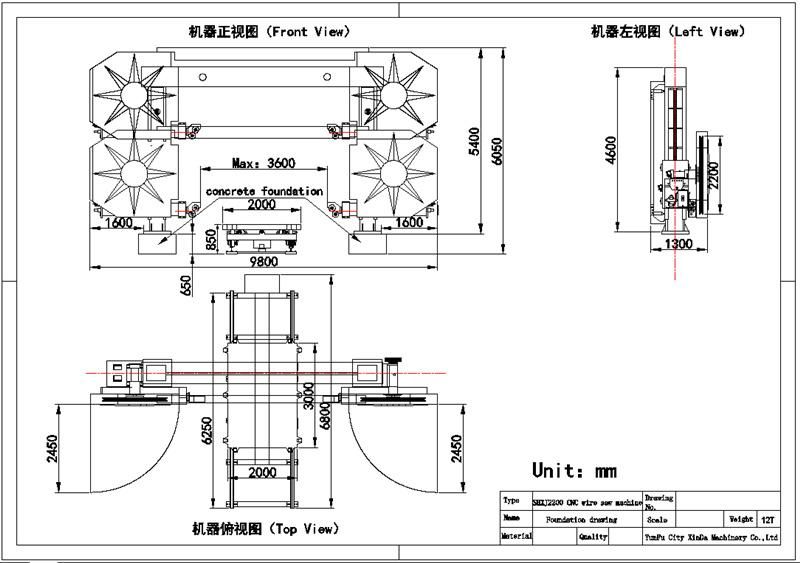

Schematic Drawing:

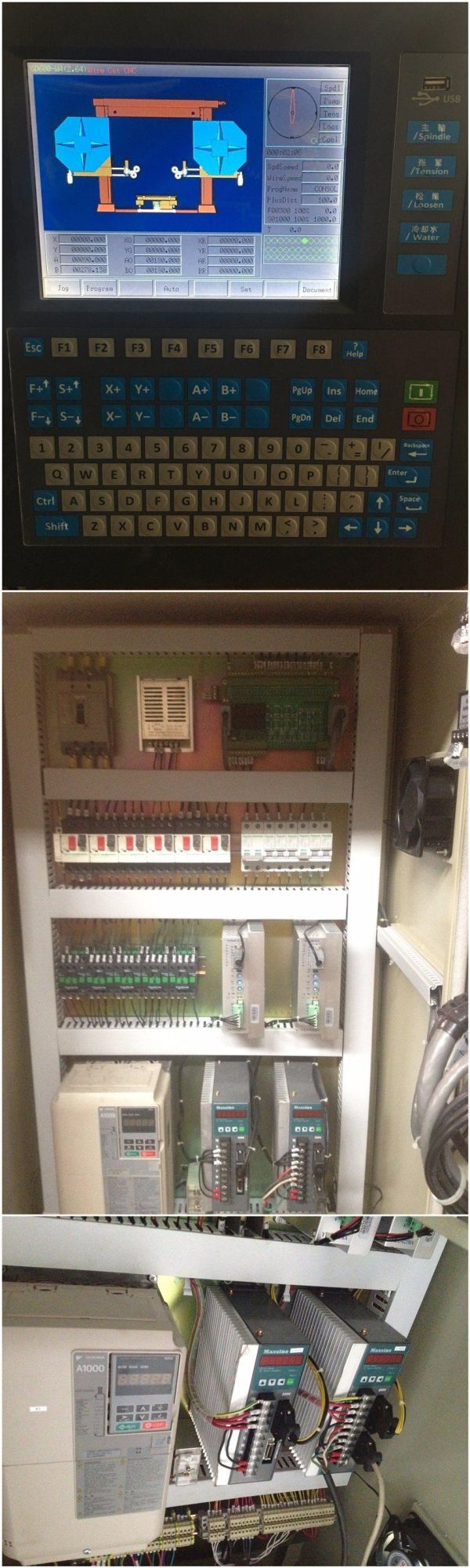

Electric Cabinet& Operation Panel Photos :
Exhibition:
FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before loading the machine to container
2) Delivery time:
The wire saw machine can be shipped within 15 weekdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical Support 24 hour on line.
Technical parameters:
| Parameters | SHXJ2200 |
| Diameter of Wire | Φ8-Φ11 |
| Length of Wire | 21350mm |
| Speed of Wire | 0-40m/s |
| Worktable Size | 3000×2000mm |
| Worktable Whether Revolve | YES |
| Worktable Load Capacity | 50T |
| Range of Cutter Movement | 2200mm |
| Max Cutting Size(L×W×H) | 3600×2000×2100mm |
| Production Efficiency | 1-2m²/h(marble) 0.5-2m²/h(granite) |
| Main Motor Power | 15KW |
| Water Consumption | 3m³/hour |
| Overall Dimension | 9800×6800×5400mm |
| Diameter of Guide Wheel | Φ200mm |
| Total Power | 24.03KW |
| Total Weight | 12T |
Schematic Drawing:
Electric Cabinet& Operation Panel Photos :
Exhibition:
FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before loading the machine to container
2) Delivery time:
The wire saw machine can be shipped within 15 weekdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical Support 24 hour on line.
