• Model NO.：PE500x750, PE600x900, PE750x1060, PE900x1200
• Finished Surface：Hole Process
• Certification：CE, ISO
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：CE, ISO
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：50-1000tph

Basic Info.

Model NO. PE500x750, PE600x900, PE750x1060, PE900x1200 Finished Surface Hole Process Certification CE, ISO Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification CE, ISO Trademark Zenith Origin China HS Code 8474209000 Production Capacity 50-1000tph

Product Description

Building and Construction Machinery Crushers

Shanghai Zenith Mining and Construction Machinery Co., Ltd. Is a high technology, engineering group. We are specializing in the research, development, and production of industrial crushing and powder processing equipment and pertinent devices. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.
Our headquarters of Zenith are located in Shanghai, China. Manufacturing center in Shanghai about 450, 000 square meters; One hour drive to the east direction in Qidong city from Shanghai, another manufacturing center is about 600, 000 square meters. This two manufacturing bases are our solid backing.




Building and Construction Machinery Crushers Introduction

Jaw crusher is a kind of heavy duty machine which can crush materials into even granularity. Our hard rock Building and Construction Machinery Crushers has the characteristics of high reduction ratio, high productivity, simple structure, and reliable performance, etc. Hard rock jaw crusher is convenient to maintain and practical to use.

Building and Construction Machinery Crushers can be used in mining industry, metallurgical industry, construction, smelting, road building, chemical industry, and other fields, for crushing various materials whose compressive strength is not more than 320 MPa.

Building and Construction Machinery Crushers Features

1. High ratio of crushing,
2. Even final size,
3. Simple structure,
4. Reliable working condition,
5. Easy maintenance,
6. Low operating cost.



Building and Construction Machinery Crushers Operating Principle

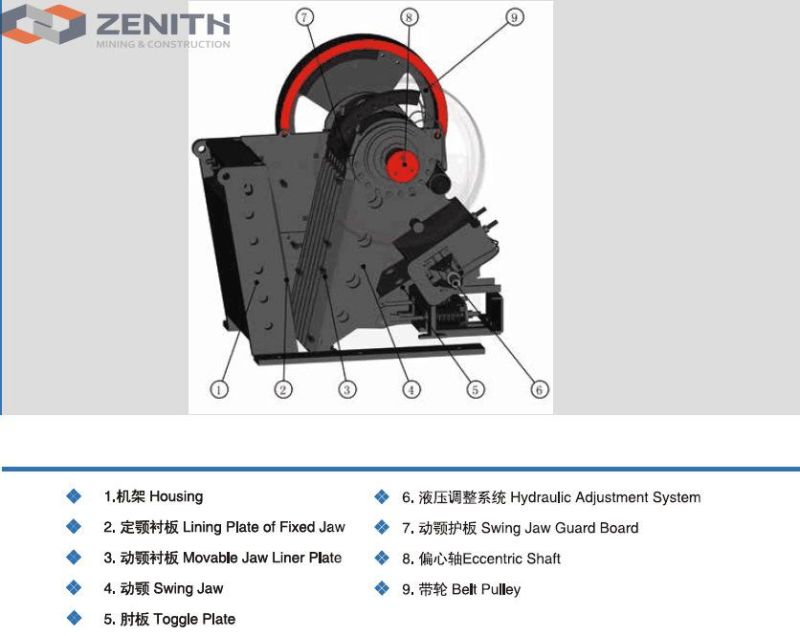

Jaw Building and Construction Machinery Crushers crusher uses motor as its power. Through the motors wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.

Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PE200×350	200×350	170	20-50	2-6	220	6-7.5	Y160M-6/7.5
PE250×400	250×400	210	20-60	5-20	310	6-15	Y180L-6/15	1450×1315×1296
PE250×750	250×750	210	20-60	8-22	320	6-30	Y225M-6/30
PE500×750	500×750	425	50-100	45-100	275	6-55	Y280M-6/55	1890×1916×1870
PE600×900	600×900	500	65-160	70-120	250	6-75	Y315S-6/75	2520×1840×2303
PE750×1060	750×1060	630	80-140	130-260	250	8-90	Y315L1-8/90	2620×2302×3110
PE900×1200	900×1200	750	95-165	220-380	200	8-130	JR127-8/130	3789×2826×3025
PE1000×1200	1000×1200	850	195-265	230-380	200	8-130	JR127-8/130	3889×2826×3025
PE1200×1500	1200×1500	1020	150-300	400-800	220	8-200	YR355M4-8/200	4930×3150×3700
