• Model NO.：PE500x750,PE600x900,PE750x1060,PE900x1200...
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• After-Sale Service：for Whole Using Year
• Test&Installation：Engineer Assigned
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：40-850tph

Basic Info.

Model NO. PE500x750,PE600x900,PE750x1060,PE900x1200... Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year After-Sale Service for Whole Using Year Test&Installation Engineer Assigned Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 40-850tph

Product Description

Quarry Crusher, Stone Quarry Crusher Machine 50-500tph

Quarry Crusher, Stone Quarry Crusher Machine introduction:

Quarry Crusher, Stone Quarry Crusher Machine are based on years of product development. The continuous improvement and refinement has made them the preferred jaw crusher among professionals and our customers.

The series of our Jaw crusher are 11models which can meet most capacity requirements in primary and secondary crushing, at the same time, with low power consumption and easy maintenance. Every feature of these jaw crushers has been carefully designed to provide superior quality and performance.

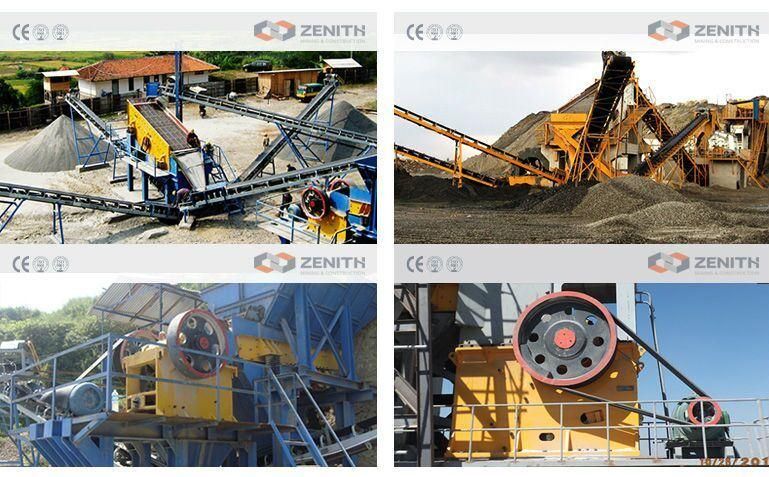

Jaw Crushers are widely applied in areas of mining, metallurgical, construction, smelting, hydraulic and chemical industries, etc.

Quarry Crusher, Stone Quarry Crusher Machine Main Features and Benefits:

1. High capacity
2. High reliability
3. Adjustable for easy wear parts
4. Over-loading protection
5. Simple structure and easy to operate
6. Long service time
7. Easy replacement of wear and spare parts
8. Less costly and Easy to install
9. Wide range of choices

Application of professional Quarry Crusher, Stone Quarry Crusher Machine

Quarry Crusher, Stone Quarry Crusher Machine small is mainly used to crush kinds of mining stones primarily and the largest compression resistance of the material to be crushed is 320Mpa. The jaw crusher is widely used in mining, metall-urgical industry, building material, highway, railway and chemical industry. This machine can break materials into medium size and fine size.

Working principle of professional Quarry Crusher, Stone Quarry Crusher Machine:

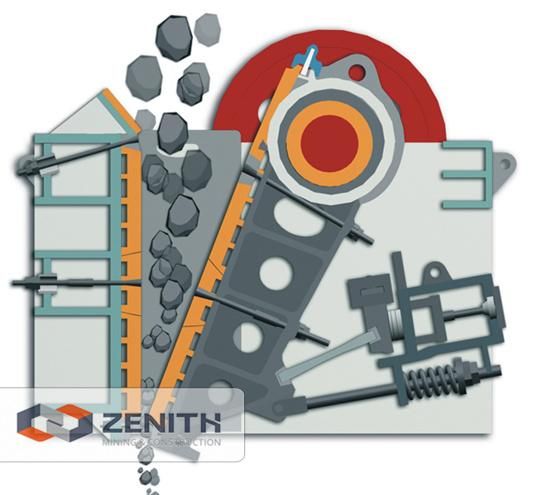

Small Quarry Crusher, Stone Quarry Crusher Machine mainly consists of frame, eccentric shaft, jaw plate, connecting bar, adjustment part and spring. The movable jaw goes upward and downward through eccentric shaft when belt and belt wheel are driven by the motor. The angle between movable jaw and bracket turns big when the movable jaw goes upward, which pushes the movable jaw plate to come closely to fixed jaw plate. At the same time, materials are crushed with the movement of the movable jaw. When the movable jaw goes downward, the angle between movable jaw and bracket turns small. Under the force of spring and connecting bars, the movable jaw plate leaves fixed jaw plate, and the crushed materials with qualified size are discharged from the crushing cavity. With the continuous rotation of the motor, the movable jaw crushes and discharges materials, which, in turn, realizes the goal of mass production.

Quarry Crusher, Stone Quarry Crusher Machine technical data:

Model	Feeder Opening (mm)	Setting Adjustment Range (mm)	Max. Feeding Size (mm)	Capacity (t/h)	Motor Power (KW)	Weight (t)	Overall Dimension (mm)
PE500x750	500x750	50-100	425	40-110	45-55	12	2035x1921x2000
PE600x900	600x900	65-160	480	90-180	55-75	17	2290x2206x2370
PE750x1060	750x1060	80-140	630	110-320	90-110	29	2655× 2302× 3110
PE900x1200	900x1200	95-165	750	220-450	110-132	52	3200× 3050× 2950
PE1000x1200	1000x1200	195-265	850	315-550	110-132	57	3800× 3166× 3045
PE1200x1500	1200x1500	150-300	950	400-850	220	82.5	4200× 3750× 3820
