Premium CNC Machine Cutting Countertops of Granite Marble Quartz Automatically (XZQQ625A)
Xiamen Aga Import and Export Co., Ltd.- After-sales Service:24 Hours on Line Services
- Warranty:1 Year Warranty
- Type:CNC Cutting Machine
- Usage:Granite, Marble, Quartz Sandstone Limestone Other Engineered Stones
- Application:Machinery & Hardware, Construction, Stone Industry
- Source Voltage:220V
Base Info
- Model NO.:XZQQ625A
- Automation:Automatic
- Cutting Ability:High Speed
- Control:CNC
- Certification:ISO, CE
- Max. Length of Cutting (Table Size):3200*2000mm
- Max. Thick of Cutting:170mm
- Blade Tilting:0-45 Degree for Miter Cut
- Table Tilting:0-85 Degree Easy for Materials Loading
- Table Rotation:0-360 Degree Stopped Any Postion
- Power of Spindle Motor:15kw 20HP
- Dimention(L*W*H):6*5*3.05m
- Weight:7200kg
- Transport Package:Plastic Water-Proof Package
- Specification:Cast iron
- Trademark:AGA
- Origin:Xiamen, China
- HS Code:84649090
- Production Capacity:200sets,Month
Description
Basic Info.
Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Length of Cutting (Table Size) 3200*2000mm Max. Thick of Cutting 170mm Blade Tilting 0-45 Degree for Miter Cut Table Tilting 0-85 Degree Easy for Materials Loading Table Rotation 0-360 Degree Stopped Any Postion Power of Spindle Motor 15kw 20HP Dimention(L*W*H) 6*5*3.05m Weight 7200kg Transport Package Plastic Water-Proof Package Specification Cast iron Trademark AGA Origin Xiamen, China HS Code 84649090 Production Capacity 200sets/MonthProduct Description
Premium CNC Machine Cutting Countertops of Granite Marble Quartz AutomaticallyProduct No.XZQQ625A
The design of the machine provides the user safe and easy exploitation, high performance and productivity.
Maximize your granite marble production with the robust monoblock cutting machine XZQQ625A. It is made with full options including table tilting and rotating, pendant control panel, touch screen, wireless remote, laser guide, hydraulic pump, etc.
Also the blade tilts 45° for miter cut very excellent in cutting and fabricating slab, countertop and
vanitytop.
Granite cutting machine secification:
Blade size | 400 - 625 mm 16" - 25" |
Cut length | 3200 mm 126" |
Cut width | 2000 mm 78.7" |
Cut thick | 170 mm 6.7" |
Blade tilt | 0 - 45° |
Table rotate | 0 - 360° locked any position |
Table tilt | 0 - 85° |
Spindle motor | 15 Kw 20 HP |
Size (L×W×H) | 6×5×3 m 20'×16'×9.9' |
Weight | 7200 Kg 16,000 Lbs |
Granite marble cutting machine details:

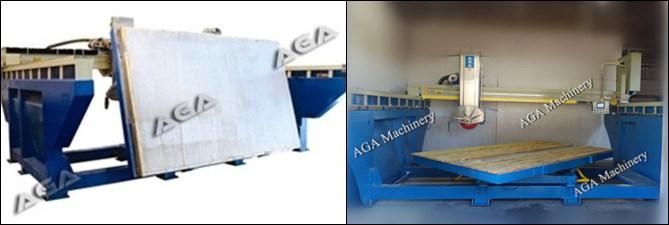

Powered table rotates 0°-360° stopping automatically at 45°, 90° and any angle for changing cutting position. It tilts 0°-85° for easy load of big slabs.

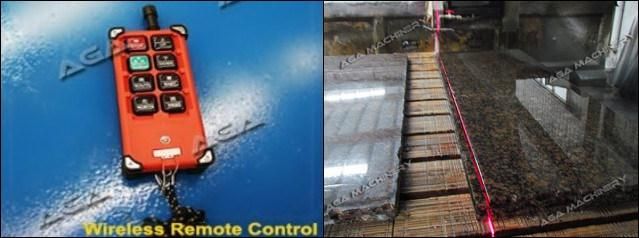

Wireless remoter provides easy conrols of the bridge saw making its users very friendly. Besides,
laser guide and sensor give precision cutting every time.
All functions are operated on the Display Control Panel.

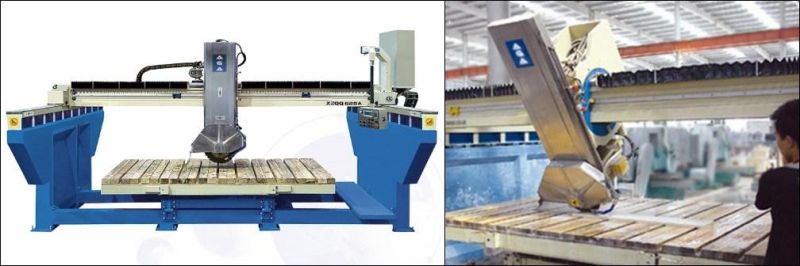

Robust machine shipped out to customers throughout the world:
FAQ:
1) Payment:
T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Key words:
Stone bridge saw, granite bridge saw, marble bridge saw, granite bridge saw, stone saw, slab saw, slab sizing, slab cutting, slab sawing, cnc machine, cnc cutting machine, tile cutter, marble cutting machine, granite cutting machine, bridge cutting machine, cnc machine, cnc cutting machine, tile cutting machine, etc.
If you have any questions please feel free to inform us, we're more than happy to serve you!
Contact info:
Please contact: Miss Kay
Look forward to receiving your inquiry.
