• Model NO.：HQ400
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Length of Cutting (Table Size)：3200*2000mm
• Max Thick of Cutting：110mm,180mm,230mm
• Blade Tilt：0-45 Degree (Optional for Hq700)
• Table Tilt：0-85 Degree Easy for Materials Loading
• Table Rotate (Hq400/Hq600)：0-90 Degree (0-360 Degree Optional)
• Table Rotate (Hq700)：0-360 Degree Stop at Any Position
• Power of Spindle Motor：15kw,15kw,18.5kw
• Transport Package：Plastic Water-Proof Package
• Specification：strong cast iron
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84649090
• Production Capacity：200sets,Month

Basic Info.

Model NO. HQ400 Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Length of Cutting (Table Size) 3200*2000mm Max Thick of Cutting 110mm/180mm/230mm Blade Tilt 0-45 Degree (Optional for Hq700) Table Tilt 0-85 Degree Easy for Materials Loading Table Rotate (Hq400/Hq600) 0-90 Degree (0-360 Degree Optional) Table Rotate (Hq700) 0-360 Degree Stop at Any Position Power of Spindle Motor 15kw/15kw/18.5kw Transport Package Plastic Water-Proof Package Specification strong cast iron Trademark AGA Origin Xiamen, China HS Code 84649090 Production Capacity 200sets/Month

Product Description

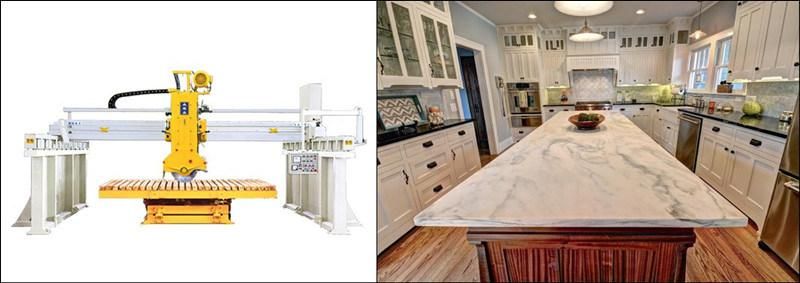

Infrared Bridge Type Marble Cutting Machine Stone Cutting Machine Slab Cutting Machine
Machine model: HQ400
China premium stone cutting machine with full functions preferable for cutting granite marble quartz sandstone limestone, etc.
Automatic machine to cut slabs, tiles, kitchen tops,etc.

Stone cutting machine technical parameters:

Model	HQ400
Blade tilting 45° (Angle Cut Mitered)	N/A
Table Rotation 90°	Yes
Table Rotation 0-360°  (stopping at each 45°)	Optional
Table tilting 0 - 85°	Yes
Power Of Spindle Motor	15kw / 20 HP
Max Length of Cutting: (Table Size)	3200 x 2000mm / 126"x78"
Max Thick of Cutting:	110 mm 4"
Steel Walls Included	Optional

Stone cutting machine features:

1. Robust machine comes with strong steel frame, it's optional. If you don't need the steel stand, you can build the concrete stands.
2. Machine microcomputer control and works automatically by program.
3. The blade goes left and right, up and down, the bridge beam moves forward and backward.
4. Equipped with the infrared device, precise cutting location reachable.
5. Dustproof design of the slide track ensures the precise guide movement & long lifespan
6. The worktable can tilt & rotate in wide-angle for special processing
7. Table tilts up to 85 degree to load the big slabs easily and it also rotates 90 / 360 degree to change the cutting position.
8.  Touch screen operation is simple and Laser guide shows the cutting position that makes the cutting easier.
9. Machine head tilting 45 degree for miter cutting is optional.
10. PLC control system, programmable, fully automatic & smooth feeding.
11. Precise movement of head in X, Y, Z directions by rack & gear.
12. Electric parts of international brand adopted, a reliability guaranteed.
13. The touch-sensitive operating system, friendly human-machine interface design.
14. The crossbeam is made of strong cast iron to avoid distortion in the long run.
15. The guide rail is oil-impregnated and protected from water and dust.


FAQ:
1) Payment:
T/T in advance, we accept 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

 Guarantee & After Sale Service
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.


Key words:
Stone cutting machine, bridge cutting machine, marble cutting machine, granite cutting machine, slab cutting machine, edge cutting machine, tiles cutting machine, cnc cutting machine, cnc machine, stone cnc machine, tile cutter, etc.

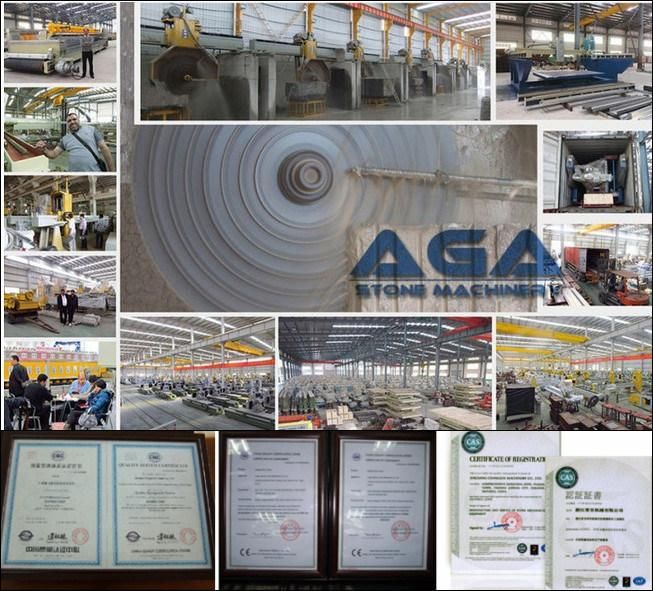

AGA Machinery:
AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test. The equipment have been successfully exported to world market in U.S.A, Canada, Europe, Mid East, Egypt, India,etc. Customers are happy with our machines.
