• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Blade Tilting：0-45 Degree
• Table Tilting：0-85 Degree
• Table Rotation：0-360 Degree
• Max. Length of Cutting (Table Size)：3200*2000mm
• Max. Cut Thick：170mm
• Max. Blade Size：625mm
• Transport Package：Plastic Monoblock Packing
• Specification：Dimention: 6*5*2.6m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641010
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Blade Tilting 0-45 Degree Table Tilting 0-85 Degree Table Rotation 0-360 Degree Max. Length of Cutting (Table Size) 3200*2000mm Max. Cut Thick 170mm Max. Blade Size 625mm Transport Package Plastic Monoblock Packing Specification Dimention: 6*5*2.6m Trademark AGA Origin Xiamen, China HS Code 84641010 Production Capacity 200 Sets/Month

Product Description

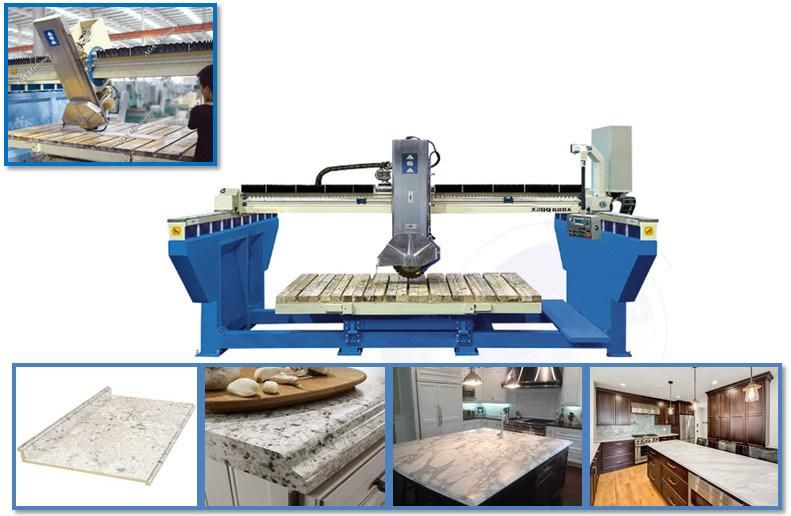

Monoblock CNC Machine Granite Bridge Saw with 45 Miter Cut Cutting Countertops
Product No. XZQQ625A
The design of the bridge saw provides the user safe and easy exploitation, high performance and productivity.
Robust monoblock bridge saw XZQQ625A is made with full functions, including including mono frame, blade tilting, table tilting and rotating, pendant control panel, touch screen, wireless remote, laser guide, hydraulic pump, etc. It provides efficient performance in cutting granite, marble, quartz and other stones. Stone fabricators paid and received the machines and very happy with it.



Granite bridge saw specification:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

Granite bridge saw description with pics:

All comandulli machines are manufactured not only to perform consistently at the highest level for many years, but also to enable longevity of the machine.
The machine structure goes through a metallization process, and is finished with a special cataphoresis painting treatment allowing both a long rust free life, and great looks.

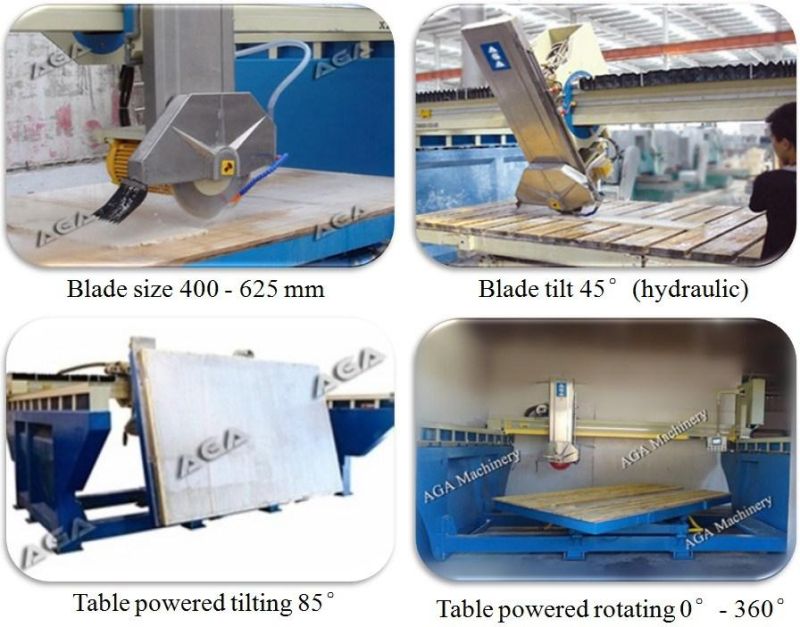

1) Miter Cut:
The bridge saw tilting head provides 0°-45°for miter cut very excellent performance in cutting and fabricating stones.
2) Powered Table Tilting and Rotating:
Bridge saw table tilts 0-85 degree hydraulic for easy load of material. It rotates 0°-360° stopping automatically at 45°, 90° and any angle for changing cutting position.
3) Automated Programming:

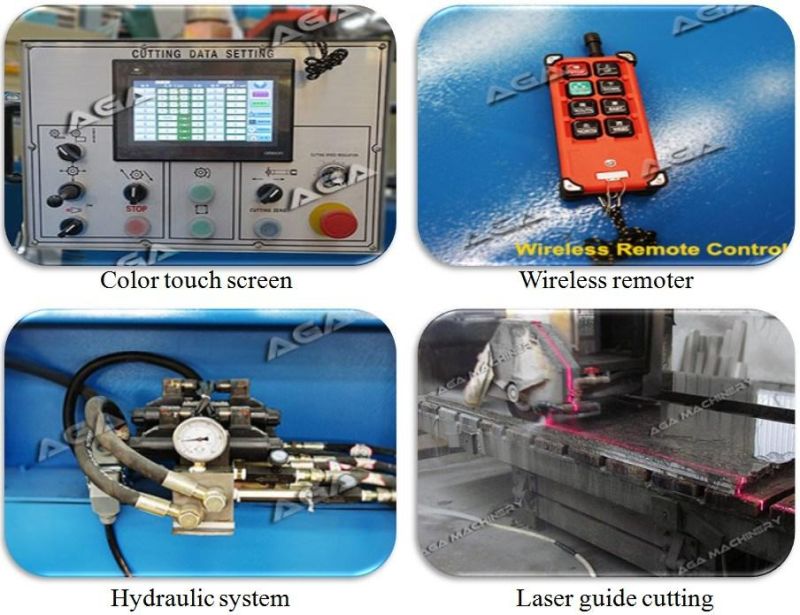

PLC control, electric system is very simple and easy to operate. All functions are operated on the color touch screen control panel.
4) Wireless remote provides easy control of the bridge  saw machine making its users very friendly.
5) Laser guide shows precision cutting every time in +/-0.2mm.
6) Automatic water control saving every drop.
7) Main structures of granite bridge saw are made of very strong cast iron and stainless steel for protection.
8) The max.cut size of stone can be 3200 × 2000mm×170mm in Length× Width×Thickness.


Granite bridge saw shipped out to customers throughout the world, this advanced cutting machine will turn you much more in the business.


FAQ:
1) Payment:
T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 days ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
