• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Length of Cutting (Table Size)：3200*2000mm
• Max. Cut Thick：170mm
• Max. Blade Size：625mm
• Table Tilting：0-85 Degree Easy for Materials Loading
• Table Rotation：0-360 Degree Stopped Any Postion
• Blade Tilting：0-45 Degree for Miter Cuts
• Spindle Mortor：15kw
• Transport Package：Wooden Packing
• Specification：Dimention: 6*5*2.6m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641090
• Production Capacity：200sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Length of Cutting (Table Size) 3200*2000mm Max. Cut Thick 170mm Max. Blade Size 625mm Table Tilting 0-85 Degree Easy for Materials Loading Table Rotation 0-360 Degree Stopped Any Postion Blade Tilting 0-45 Degree for Miter Cuts Spindle Mortor 15kw Transport Package Wooden Packing Specification Dimention: 6*5*2.6m Trademark AGA Origin Xiamen, China HS Code 84641090 Production Capacity 200sets/Month

Product Description

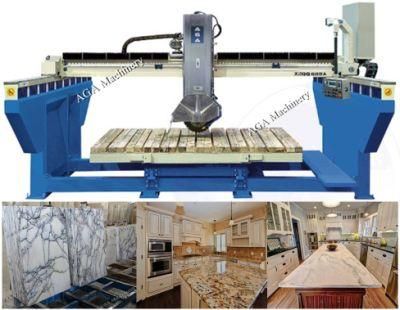

Premium Stone Bridge Saw CNC Machine for Granite Marble Cutting
Product No. XZQQ625A
Most reliable and efficient bridge saw/cnc machine/bridge cutting machine applicable for cutting granite, marble, quartz and other engineered stones. It provides excellent performance in cutting and fabricating slabs, tiles, counter tops, bench tops, vanity tops, etc.

This bridge saw/cnc machine/ bridge cutting machine is hot sales in the market atthe right price. Customers paid and they got the machines and very happy.


Bridge saw/cnc machine/bridge cutting machine with full functions:
Bridge saw/cutting machine XZQQ625A is made with a power motor 20HP, full of options including mono frame, blade tilting, table tilting and rotating, pendant control panel, touch screen, wireless remote, laser guide, hydraulic pump, etc.

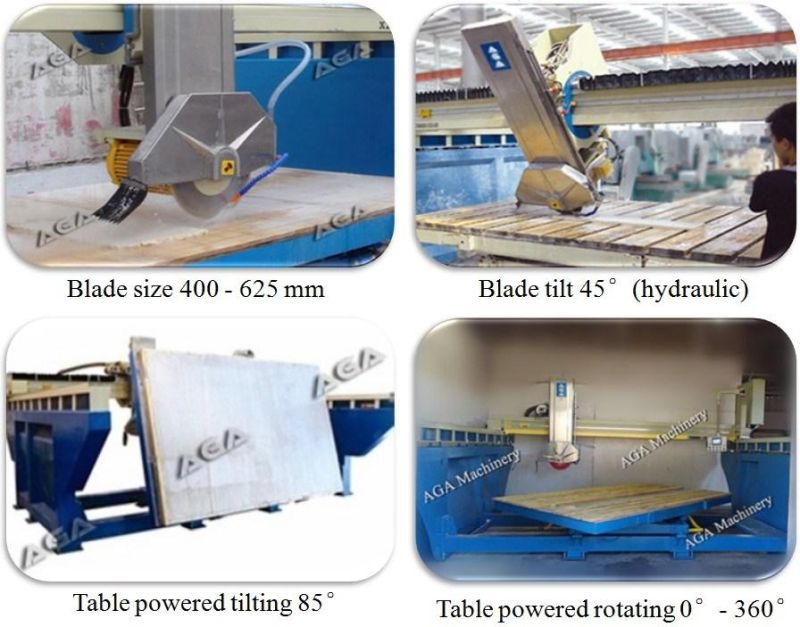

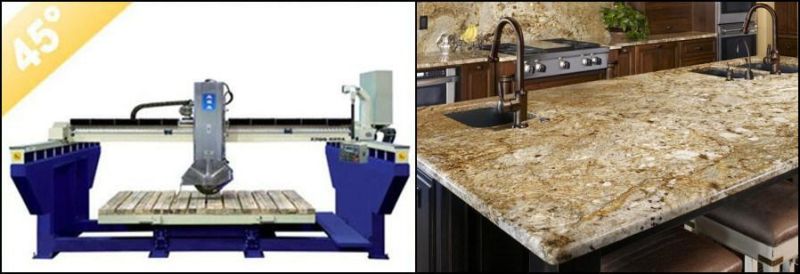

1) Bridge saw/cutting machine hydraulic head tilts 0-45 degree for miter cut very excellent in cutting granite marble stones.
2) Bridge saw/cutting machine powered table tilts 0-85 degree hydraulic for easy load of materials and it rotates 0-360 degree stopping automatically at 45, 90, and any angle to change the cutting position easily.

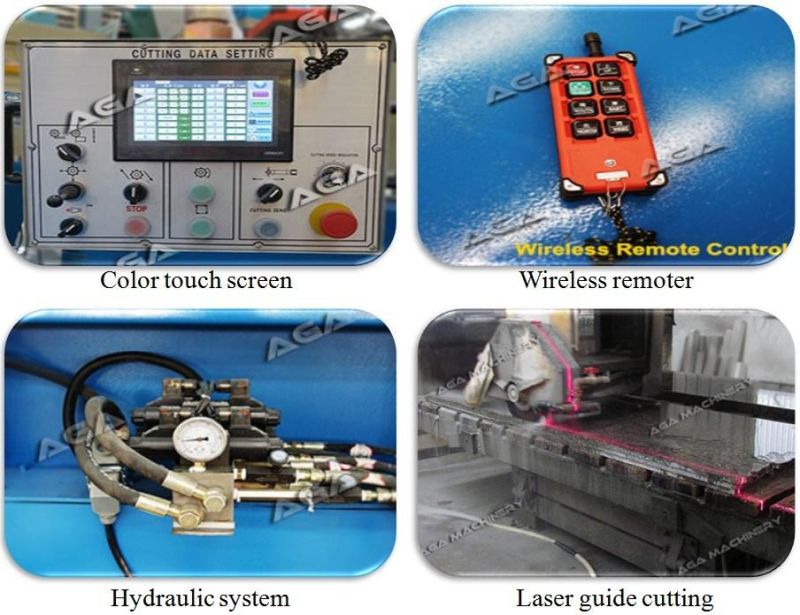

3) This bridge saw/cutting machine is PLC control, electric system is very simple and easy to operate. All functions are operated on the color touch screen control panel with live data.
4) Main structures of the bridge saw/cutting machine are made of very strong cast iron and stainless steel for protection.
5) Wireless remote provides easy control of the saw making its users very friendly.
6) Besides, stone cutting is guided by laser sensor which shows precision cutting position.



Bridge saw/cutting machine specification:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

FAQ:
1) Payment:
T/T in advance, we accept 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

Key words:
Stone bridge saw, granite bridge saw, marble bridge saw, stone cutting machine, grantie cutting machine, quartz cutting machine, granite sawing machine, granite saw, marble saw, stone saw, cutting machine, bridge cutting machine, slab sawing machine, bridge sawing machine, slab saw, tile cutter, cnc machine, cnc cutting machine, china cnc machine, etc.
