• Model NO.：XZQQ625A
• Automation：Automatic
• Control：CNC
• Certification：ISO, CE
• Max. Cut Size(L*W)：3200*2000mm
• Max. Cut Thick：170mm
• Table Tilting：0-85 Degree
• Table Rotation：0-360 Degree
• Blade Tilting：0-45 Degree
• Spindle Motor：15 Kw 20HP
• Repeat Cutting：99 Repeat Cutting by Program
• Dimention(L*W*H)：6*5*2.6m
• Step Cutting：Two Way Cutting
• Transport Package：Plastic Monoblock Packing
• Specification：Weight: 7200kg
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641010
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Control CNC Certification ISO, CE Max. Cut Size(L*W) 3200*2000mm Max. Cut Thick 170mm Table Tilting 0-85 Degree Table Rotation 0-360 Degree Blade Tilting 0-45 Degree Spindle Motor 15 Kw 20HP Repeat Cutting 99 Repeat Cutting by Program Dimention(L*W*H) 6*5*2.6m Step Cutting Two Way Cutting Transport Package Plastic Monoblock Packing Specification Weight: 7200kg Trademark AGA Origin Xiamen, China HS Code 84641010 Production Capacity 200 Sets/Month

Product Description

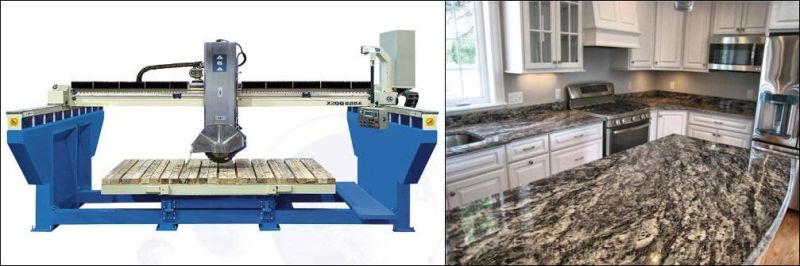

Robust CNC Machine Granite Bridge Saw Marble Bridge Saw with 45 Miter Cut
Product. No XZQQ625A
The design of the bridge saw provides the user safe and easy exploitation, high performance and productivity.
The whole bridge saw is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble and quartz.
1) Miter cuts:
Bridge saw head provides automatic power tilting of 0-45 degree for miter cutting.
2) Wortable table tilts and rotates:

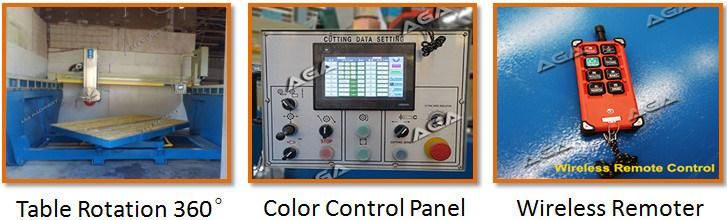

Bridge saw table tilts 0-85 degree for easy load of materials and it can rotate 0-360 degree stopped at any angle to change the cutting position easily.

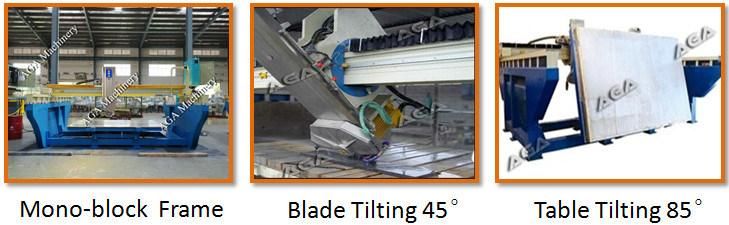

3) Mono frame:
Bridge saw XZQQ625A is monoblock structure frame, easy for loading, transportation and installation.
4) Friendly-human operation:
Wireless remote provides easy control of the bridge saw. All functions are operated on the control panel that make it very user friendly.
5) Efficient and precise cutting:

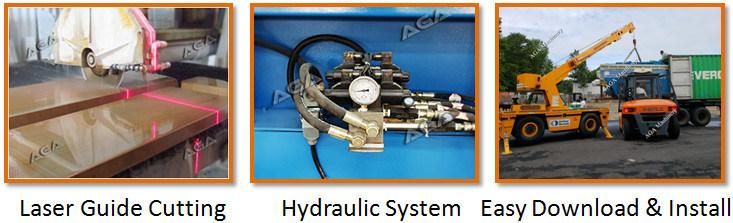

Equipped with infrared device, precise cutting location reachable.  Besides, this bridge saw is able to do multiple programs for up to 99 repeat cuts automatically.
6) What you paid what you get:
Main structures are made of very strong cast iron for stable running and stainless steel for protection. Electric components adopts Siemens or Schneider brand. Electric parts of  international brand adopted, reliability guaranteed.


All comandulli machines are manufactured not only to perform consistently at the highest level for many years, but also to enable longevity of the machine.
The machine structure goes through a metallization process, and is finished with a special cataphoresis painting treatment allowing both a long rust free life, and great looks.

Maximize your production with Monoblock Granite Bridge Saw XZQQ625A.

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

Undertaking of the bridge saw cutting machine:
1)  ISO, CE Certification.
2)  Lifetime: normally 15 years or more if properly maintained.
3)  Warranty for one year.
4)  24 hour technical support Internet or by Telephone, free intructions and problem solving.

Key words:
Stone bridge saw, granite bridge saw, bridge saw, marble bridge saw, slab saw, stone cutting machine, bridge cutting machine, granite cutting machine, stone saw, stone sawing machine, cnc machine, cnc cutting machine, china cnc machine, countertops cutting machine, slab cutting machine, etc.

Bridge saw shipped out to customers throughout the world:

FAQ:
1) Payment:
T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
