• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Length of Cutting (Table Size)：3200*2000mm
• Max. Cut Thick：170mm
• Max. Blade Size：625mm
• Table Tilting：0-85 Degree
• Table Rotation：0-360 Degree
• Head Tilting：0-45 Degree
• Transport Package：Plastic Packing
• Specification：Dimention: 6*5*2.6m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641010
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Length of Cutting (Table Size) 3200*2000mm Max. Cut Thick 170mm Max. Blade Size 625mm Table Tilting 0-85 Degree Table Rotation 0-360 Degree Head Tilting 0-45 Degree Transport Package Plastic Packing Specification Dimention: 6*5*2.6m Trademark AGA Origin Xiamen, China HS Code 84641010 Production Capacity 200 Sets/Month

Product Description

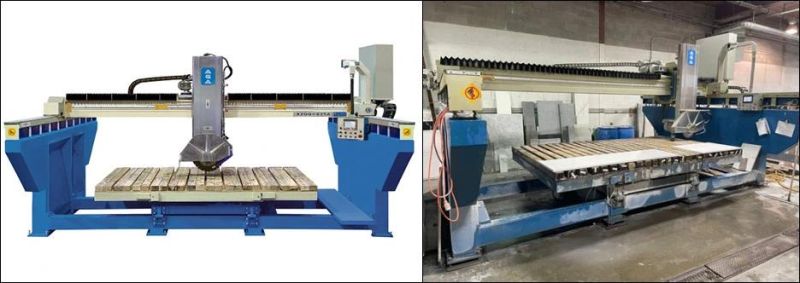

Robust Monoblock Granite Bridge Saw CNC Cutting Machine
Product ID: XZQQ625A
Granite bridge saw XZQQ625A is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble and quartz stones.
The whole saw is made with full funtions, such as automatic table rotation and tilting, blade tilting, laser cutting, wireless remote, etc. A robust saw preferable for kitchen tops.
If you are looking for a reliable bridge saw for granite marble quartz cutting, this is exaclty what you need.

Products Desription:
Bridge saw XZQQ625A is made with  full funtions including mono frame, blade tilting, table tilting and rotating, pendant control panel, touch screen, wireless remote, laser guide, hydraulic pump, etc.

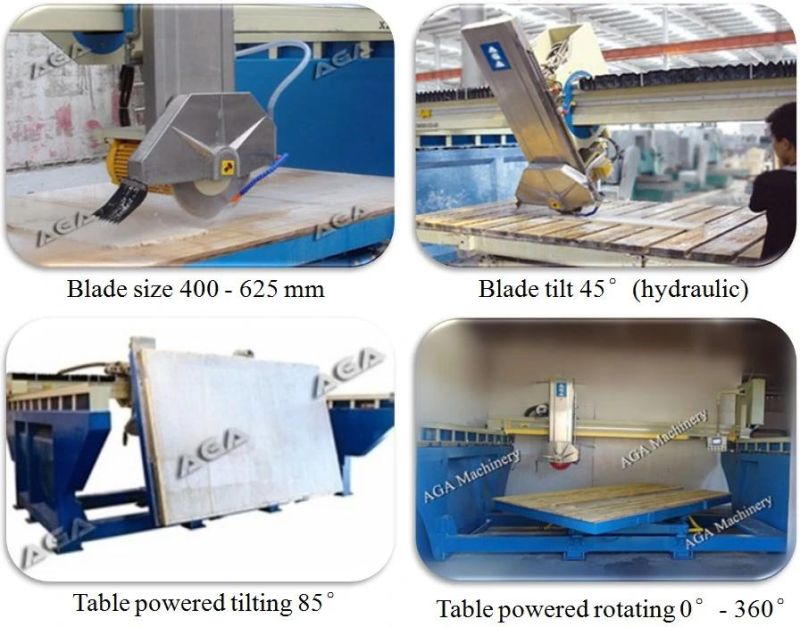

1) Hydraulic bridge saw head tilts 0-45 degree for miter cut.
2) Bridge saw table tilts 0-85 degree hydraulic.
3) Table turns 0-360 degree stopping automatically at any angle to change the cutting position.
3) Bridge saw is PLC control, electric system is very simple.
4)All functions are operated on the color touch screen control panel with live data, it is easy to operate.
5) Main structures of the bridge saw are made of very strong cast iron and stainless steel for protection.
5) Wireless remote provides easy control.
6) Laser sensor shows precision cutting position, making every slab cutting beautiful.
7) Momoblock structure is steady.



Bridge saw specification:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

Key words:
Stone bridge saw, granite bridge saw, stone cutting machine, bridge cutting machine, automatic bridge saw, china bridge saw, granite saw, stone saw, granite cutting machine, granite sawing machine, bridge sawing machine, slab cutting machine, cnc machine, cnc cutting machine, tile cutting machine, mmarble cutting machine, tile cutter,  etc.


FAQ:
1) Payment:
T/T in advance, we accept 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.


our dream machine is closer than you:
Hot sals throughout the world, customers paid and they got the machines and super happy.
AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.

If you are interested, please do not hesitate to contact us:
Contact : Ms. Kay
