• Model NO.：1625
• Certification：CE, ISO, CCC, API
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Rotary Numbers：8 or Optional
• Service：Offering Oversea Service
• Table：Vacuum Table or Aluminum
• Spindle：Atc Tool Change Spindle
• Control System：DSP or Syntec for Optional
• Motor or Drive：Stepper or Servo
• Software：Artcam or Type 3
• Name：CNC Router 1325
• Machine：Rotary Axis CNC Router
• Table Surface：Vacuum and T-Slot Combined
• Running Mode：Yaskawa Servo Motor
• Drive Mode：Helical Rack and Pinion
• Table Type：Heavy Duty
• HS：8465990000
• Atc Type：Linear or
• Transport Package：Woodencase
• Specification：1500x3000x300
• Trademark：ALLWIN
• Origin：Jinan, Shandong
• HS Code：8465990000

Basic Info.

Model NO. 1625 Certification CE, ISO, CCC, API Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Rotary Numbers 8 or Optional Service Offering Oversea Service Table Vacuum Table or Aluminum Spindle Atc Tool Change Spindle Control System DSP or Syntec for Optional Motor or Drive Stepper or Servo Software Artcam or Type 3 Name CNC Router 1325 Machine Rotary Axis CNC Router Table Surface Vacuum and T-Slot Combined Running Mode Yaskawa Servo Motor Drive Mode Helical Rack and Pinion Table Type Heavy Duty HS 8465990000 Atc Type Linear or Transport Package Woodencase Specification 1500x3000x300 Trademark ALLWIN Origin Jinan, Shandong HS Code 8465990000

Product Description

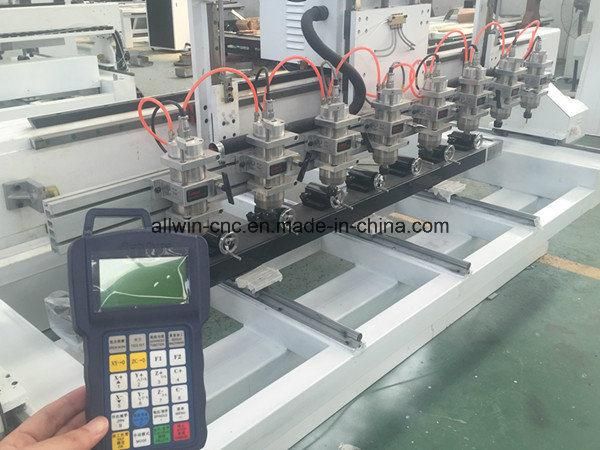

New design 1500x2500mm Woodworking Cnc Router Machine With 8 rotary axis

NO.	Description	Parameter
1	X,Y,Z Working Area	2500x1500x250mm
2	X,Y,Z  Accuracy	±0.02mm
3	X,Y,Z Repositioning Accuracy	±0.0254mm
4	Table Surface	T-slot Table
5	Frame	Welded by steel
6	Transmission	Hiwin square rail and TBI ball screw for 3 axis
7	Max. Power Consumption	2.5kw~5Kw (without spindle)
8	Max. Rapid Travel Rate	30m/min
9	Max. Working Speed	15m/min
10	Spindle Power	8*2.2kw water cooling
11	Spindle Speed	0-24000RPM
12	Driver and Motor	Delta servo motor and driver
13	Working Voltage	220/380V    50/60Hz
14	Command Language	G Code
15	Operating System	DSP A18 System
16	Computer Interface	USB
17	Software	Type3 or Artcam
18	Running Environment  Temperature	0 - 45 Centigrade
19	Relative Humidity	30% - 75%

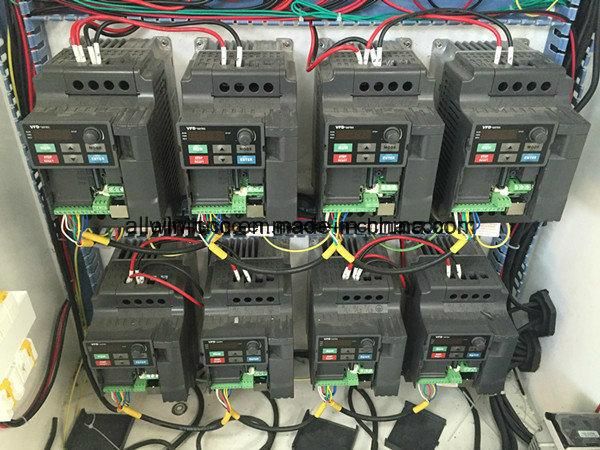

20	Inverter	Delta
21	Electrical components	Schneider
22	Limit switch	OMRON
23	Tool sensor and lubrication	With
23	Rotary axis	8 pc 150x1500mm

 Advantages:

1. Free samples(I can help you process samples for free.)

2.Advertising/artwork/woodworking

3.CE, SGS,ISO

4.Customized:Support

5.High sensitivity

6.High efficiency

7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support

Application Industry and Materials:

Advertising industury:Cnc router can engrave all kinds of signage,logo  products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards

(drilling and engraving),Double color boards,acrylic etc.

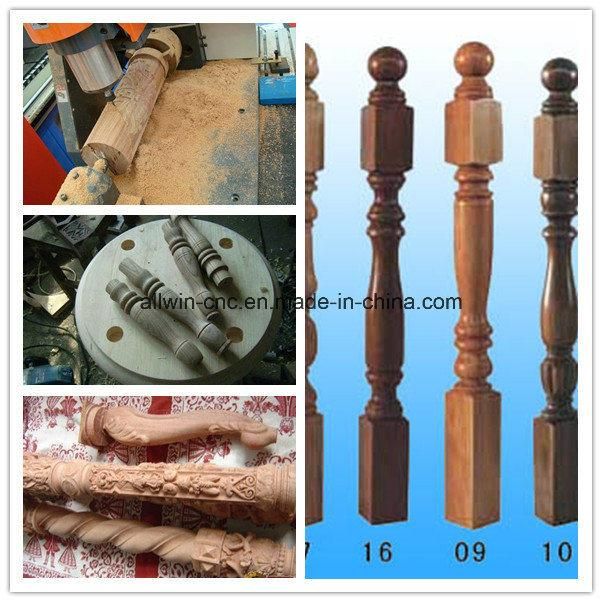

Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,

MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside

cabinets,folding screen etc.

Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.

Packing & shipment :

Save space as much as possible for container loading.

• Inside:Water-proof Plastic Film Package With Foam Protection
• Outside:Solid Seaworthy Wood Box Package
• Below: Steel Tube

FAQ:
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents
