Stone Marble Granite CNC Engraving Machine
Jinan Zhongke CNC Equipment Co., Ltd.- Function：Cutting, Line Engraving, Carving
- Application Material：Marble
- Automation：Automatic
- Control：CNC
- Motor Power：High Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
Base Info
- Model NO.：1325
- Certification：CE
- Current：AC
- Application：Glass, Stone Industry
- Customized：Customized
- Working Area：1300*2500*300mm
- Spindle：Water Cooling Spindle(Optional Air Cooling)
- Spindle Speed：0-24000rpm
- Table：Aluminum T-Slot Table
- Transmission：Helical Rack
- Motors：Stepper Motor
- Control System：Ncstudio Control System
- Inverter：Sunfar Inverter
- Delivery Time：15 Working Days
- Warranty：1 Year
- Transport Package：Exporting Plywood Package
- Specification：CE
- Trademark：ZHONGKE
- Origin：China
- HS Code：8465990000
- Production Capacity：100 Sets,Month
Description
Model
ZK-9015
Machine lathe
Whole thicker seamless steel structure
Work dimensions
1300*2500*300mm
Max. feeding height
300mm or bigger
Working table
Aluminum T-slot table with stianless steel water tank
Guide way
Imported HIWIN square orbit from Taiwan
Driving mode
XY-axis rack pinion, z-axis ball screw
Mechanical precision
0.02mm
Repositioning accuracy
0.05mm
Max. Speed
10m/min
Working speed
0-6m/min
Driving motor
Stepper motor
Software
Type 3, Art cut, Art cam and Ucancam software
Voltage
AC 380V 50Hz or 220V 50Hz
Spindle
3.2KW water cooling spindle
Spindle speed
0 - 24,000rpm/min
Blade diameter
3.175mm, 4mm, 6mm, 8mm, 10mm, 12mm, 12.7mm
Control system
Ncstudio control card system
Command
G code, u00, mmg, plt
Auxiliary device
Rotary chuck
Certification
CE

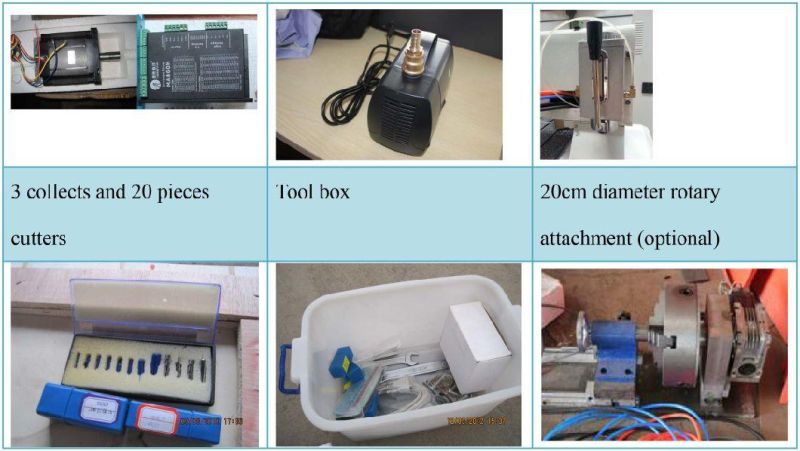

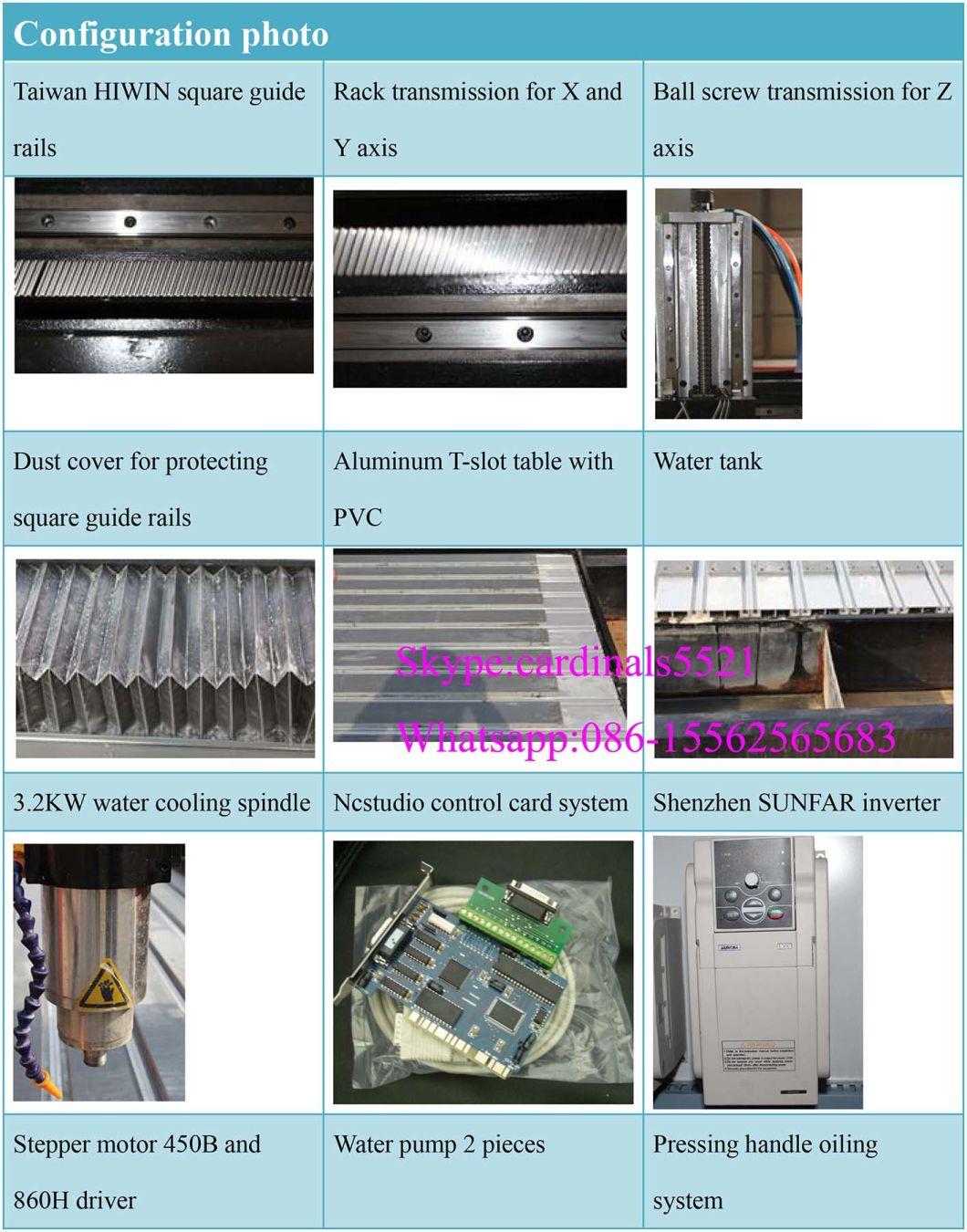

Configuration photos:
Sample photos:
If you are interested in our machine, welcome to contact with me
