Bridge Block Cutting Machine for Middle Block Middle Block Cutting Machine
Fujian Xianda Machinery Co., Ltd.- After-sales Service：12 Months
- Warranty：12 Months
- Type：Bridge Cutting Machine
- Usage：Granite, Marble
- Application：Construction, Stone Industry
- Source Voltage：380V
Base Info
- Model NO.：WKQ-1200
- Automation：Automatic
- Cutting Ability：High Speed
- Control：PLC
- Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
- Blade Diameter：Φ700-Φ1200
- Dimension of Worktable：3000*2000mm
- Worktable Rotation Degree(Optional)：0-90°
- Main Motor：22kw
- Gross Motor：29kw
- Water Consumption：4m3,H
- Outline Dimension：6200*4800*4400mm
- Gross Weight：6800kg
- Transport Package：Load in a 20 Feet Container
- Specification：6200*4800*4400mm
- Trademark：Xianda
- Origin：Jinjiang, Fujian, China
- HS Code：84641090
- Production Capacity：1000 Sets,Year
Description
Basic Info.
Model NO. WKQ-1200 Automation Automatic Cutting Ability High Speed Control PLC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Blade Diameter Φ700-Φ1200 Dimension of Worktable 3000*2000mm Worktable Rotation Degree(Optional) 0-90° Main Motor 22kw Gross Motor 29kw Water Consumption 4m3/H Outline Dimension 6200*4800*4400mm Gross Weight 6800kg Transport Package Load in a 20 Feet Container Specification 6200*4800*4400mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/YearProduct Description
Product Description

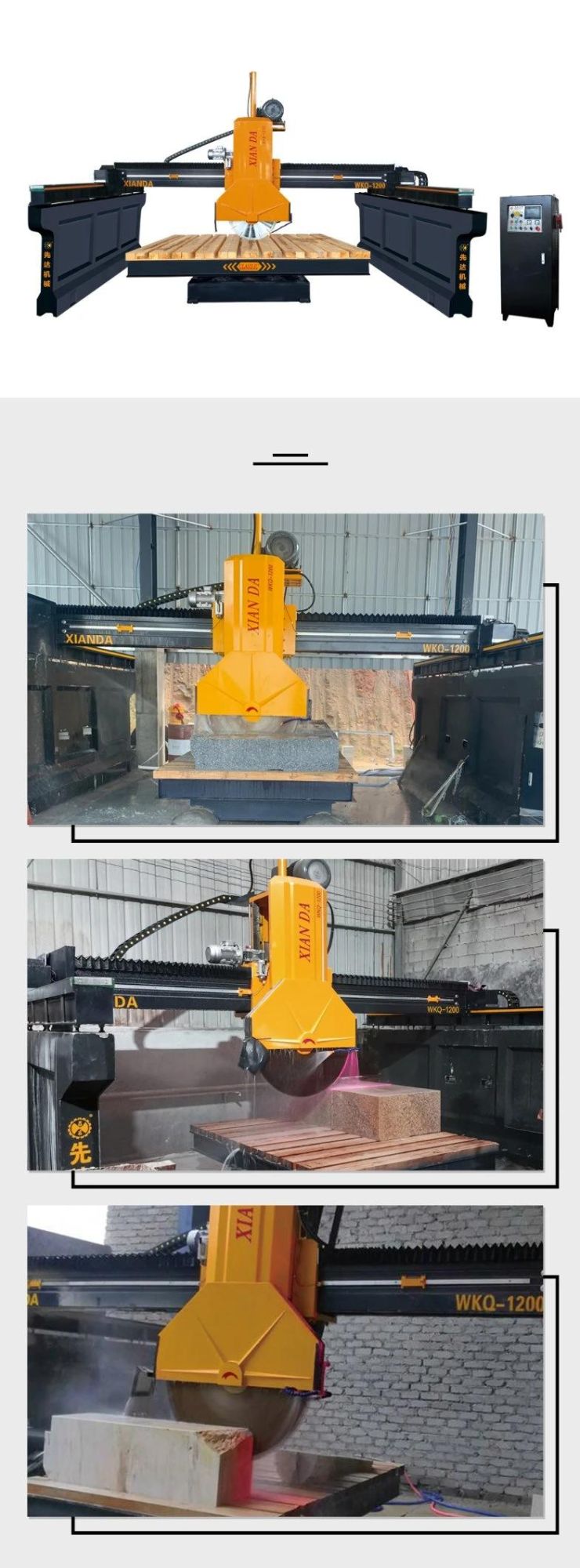

Middle block stone cutting machine & stone machine & bridge saw, which be designed by reasonable structure, adopting PLC system and Human-machine interface, togethering Chinese & English double operation language and infrared device, equipting with ultra-high precision rotary encoder, using inverter to control left-right feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through slide plate, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials. Thus the whole machine is featured as high cutting efficiency,high stability,esay-operating, specially cutting shaped stone products,tombstone and curb stone.
Technical Parameter
| Parameter | Unit | WKQ-1200 |
| Blade diameter | mm | 1200 |
| Max Lifting Distance | mm | 760 |
| Dimension of worktable | mm | 3000*2000 |
| Worktable tilting degree | ° | 0-85° |
| Worktable rotation degree | ° | 0-90° |
| Main motor | kw | 22 |
| Gross motor | kw | 29 |
| Water consumption | m³/h | 4 |
| Outline dimension | mm | 6200*4800*4400 |
| Gross weight | kg | 6800 |
Xianda Machinery
Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.
