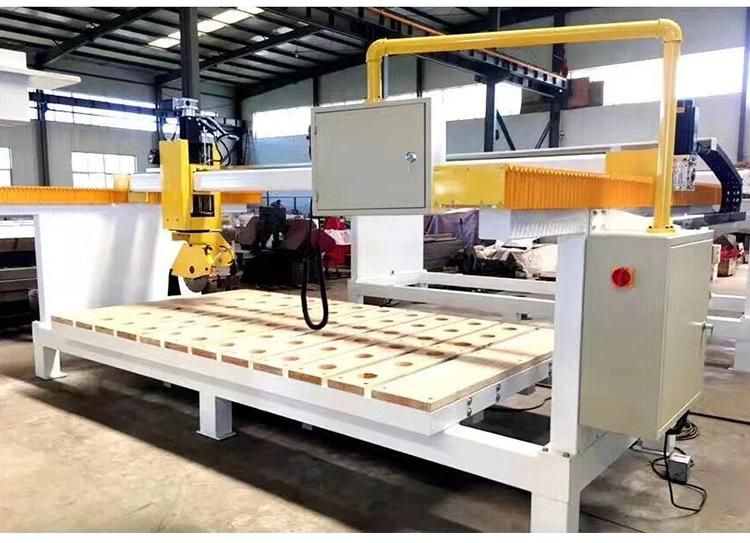

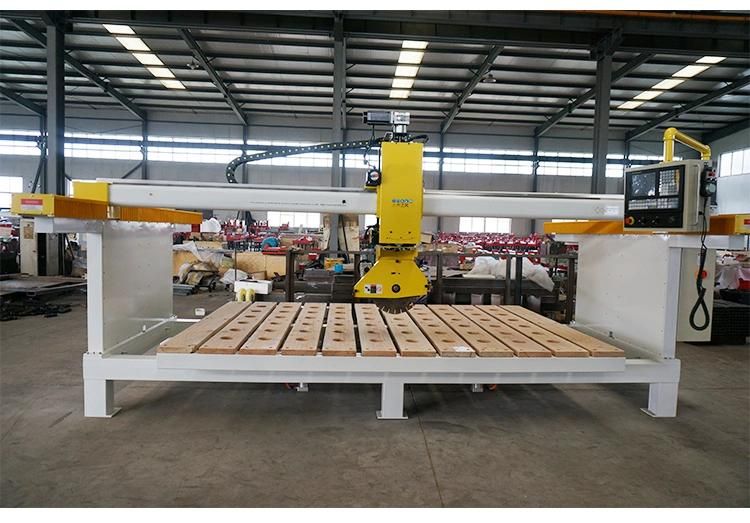

Saw Bridge Stone Cutting Machine 4 Axis CNC Granite Sink Marble Edge Polishing Machines
SHANDONG IGOLDEN CNC TECHNOLOGY CO., LTD.- Type：CNC Cutting Machine
- Usage：Ceramics, Granite, Marble
- Application：Machinery & Hardware, Construction, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：IGS-3020
- Control：CNC
- Certification：ISO, CE
- Keywords：Bridge Saw CNC Stone Cutting Machine
- Working Area：3000*2000*350mm
- Table Size：3000*2000mm
- Spindle Power：4.5kw
- Table Structure：T-Slot
- Driving Motor：Servo Brand
- Working Speed：8m,Min
- Repositioning Accuracy：0.05mm
- Control System：Special CNC Control System
- Transmission：X,Y Rack and Pinion, Z Ball Screw
- Spindle：Water Cooling Spindle and Cutters
- Key Selling Points：High-Accuracy
- Spindle Speed：24000r,Min
- Transport Package：Plywood Case
- Specification：3000*2000*350mm
- Trademark：iGoldencnc
- Origin：China
- Production Capacity：500
Description
NO.
Description
Parameters
1
Working area
3000*2000*350mm
2
Table size
3000*2000mm
3
Transmission
X/Y rack and pinion, Z ball screw
4
Table structure
T Slot
5
Spindle power
4.5KW
6
Spindle speed
24000r/min
7
Travelling speed
10m/min
8
Working speed
8m/min
9
Working Delicacy
0.005mm
10
Repositioning Accuracy
0.05mm
11
Driving Motor
Servo brand
12
Control System
Special cnc control System
13
Command Code
G Code*.u00*.mmg*.plt
14
Power(without spindle)
1500W
15
Voltage
AC380/50HZ
16
Tilting table and loading wheel
With
17
Software
Artcam/Type3,other CAD/CAM
- Compact structure, small area coverage, no need to do ground foundation.
- Using advanced computer control system to achieve higher working efficiency.
- Powerful functions combined in one machine to achieve almost all processing works for small sized factory.
- High quality electrical components with long service life and low maintenance cost.
Packing details:
Inner packing: Plastic film
Outer packing: Strengthen standard export wooden case
Assure transport machines to the destination safely!

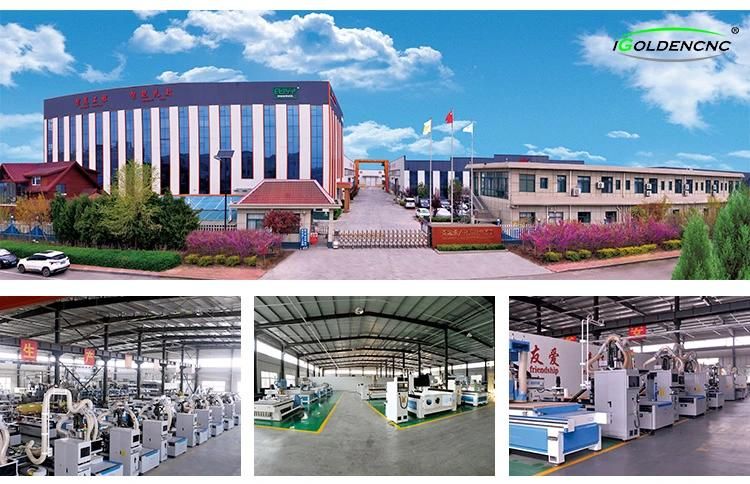

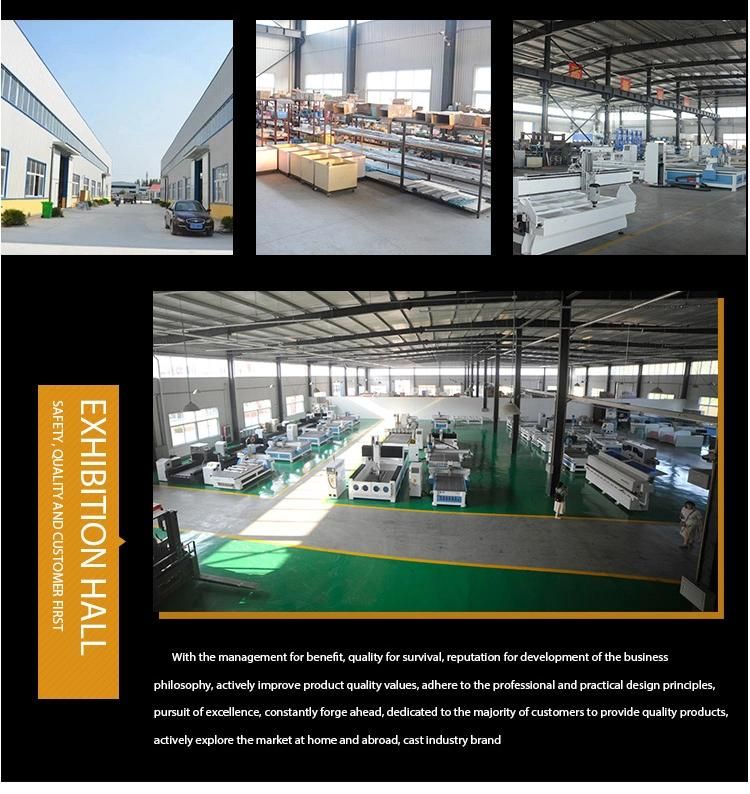

Company information:

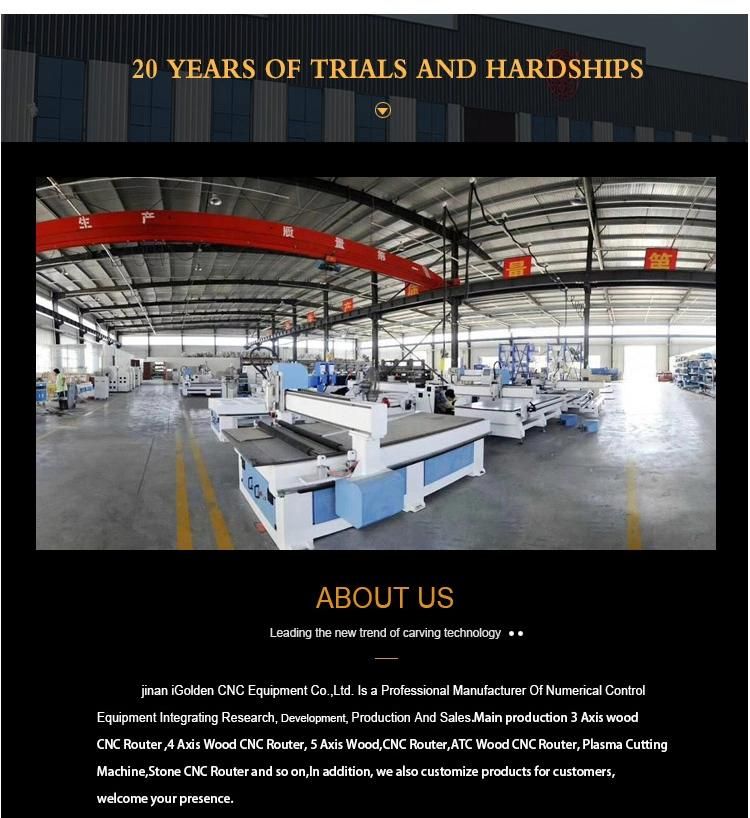

iGoldencnc group is one of manufacturing and research and development of the company that focus on CNC engraving machine and cutting machine for many years since 2002. Located in Jinan,shandong province,covers the area of 6000 square meters.
Our products have been certified by various parties, including CE, ISO9001 and FDA. Products can meet different needs of customers. Advanced technology, experienced engineers and first class service are our fundamental guarantee.
