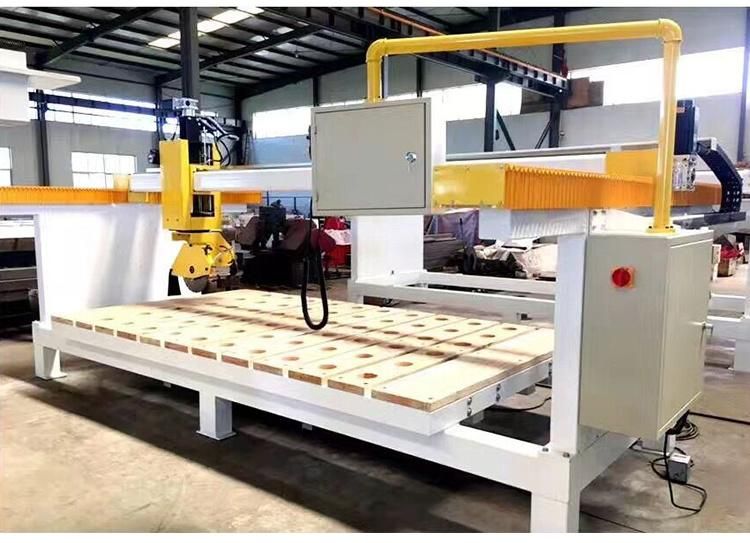

Bridge Saw Stone Cutting Machine Automatic Quartz Block Cutter 4 Axis 5 Axis Granite Slabs Edge Polishing and Sink Hole Cutting Machine
SHANDONG IGOLDEN CNC TECHNOLOGY CO., LTD.- Type：CNC Cutting Machine
- Usage：Ceramics, Granite, Marble
- Application：Machinery & Hardware, Art & Craft, Construction, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：IGS-3020
- Control：CNC
- Certification：ISO, CE
- Key Selling Points：High-Accuracy
- Keywords：Bridge Saw CNC Stone Cutting Machine
- Working Area：3000*2000*350mm
- Control System：Special CNC Control System
- Motor Power：4.5kw
- Transmission：X,Y Rack and Pinion, Z Ball Screw
- Spindle：Transmission
- Lathe Structure：Water Cooling Spindle and Cutters
- T-Slot Square Tube：24000r,Min
- Repositioning Accuracy：0.05mm
- Working Speed：8m,Min
- Transport Package：Plywood Case
- Specification：3000*2000*350mm
- Trademark：iGoldencnc
- Origin：China
- Production Capacity：500
Description
NO.
Description
Parameters
1
Working area
3000*2000*350mm
2
Table size
3000*2000mm
3
Transmission
X/Y rack and pinion, Z ball screw
4
Table structure
T Slot
5
Spindle power
4.5KW
6
Spindle speed
24000r/min
7
Travelling speed
10m/min
8
Working speed
8m/min
9
Working Delicacy
0.005mm
10
Repositioning Accuracy
0.05mm
11
Driving Motor
Servo brand
12
Control System
Special cnc control System
13
Command Code
G Code*.u00*.mmg*.plt
14
Power(without spindle)
1500W
15
Voltage
AC380/50HZ
16
Tilting table and loading wheel
With
17
Software
Artcam/Type3,other CAD/CAM

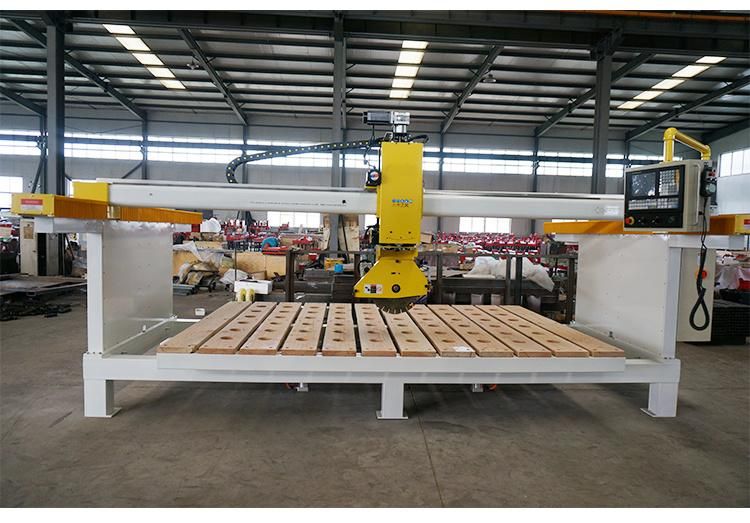

Machines in workshop:
- Compact structure, small area coverage, no need to do ground foundation.
- Using advanced computer control system to achieve higher working efficiency.
- Powerful functions combined in one machine to achieve almost all processing works for small sized factory.
- High quality electrical components with long service life and low maintenance cost.

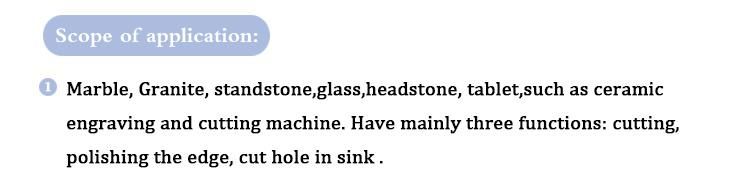

Application
The machine endowed with high steadiness,effective and simple in operating characters,Hence,It is suitable to process high value,large size granite and marble slab.
Packing details:
Inner packing: Plastic film
Outer packing: Strengthen standard export wooden case
Assure transport machines to the destination safely!

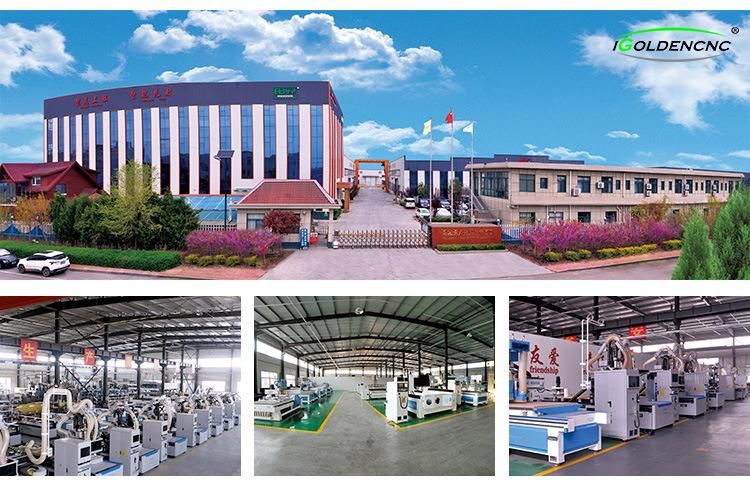

Company Information:
Jinan iGolden CNC Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc. And welcome to visit us for more choices.
