• Model NO.：SH-QF08-08
• Performance：Pneumatic Tilting
• Transport Package：Plywood Case
• Trademark：SHENGHENG
• Origin：China
• HS Code：842890
• Production Capacity：400 Sets,Year

Basic Info.

Model NO. SH-QF08-08 Performance Pneumatic Tilting Transport Package Plywood Case Trademark SHENGHENG Origin China HS Code 842890 Production Capacity 400 Sets/Year

Product Description

According to the actual processing situations of stone slabs and tiles, there are lifting and handling equipment required to reduce work intensity and increase safety and efficiency.

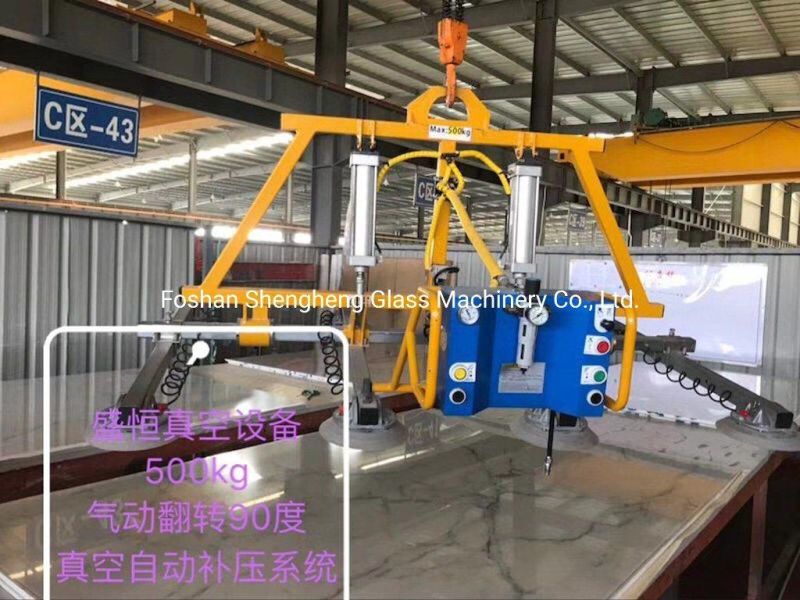

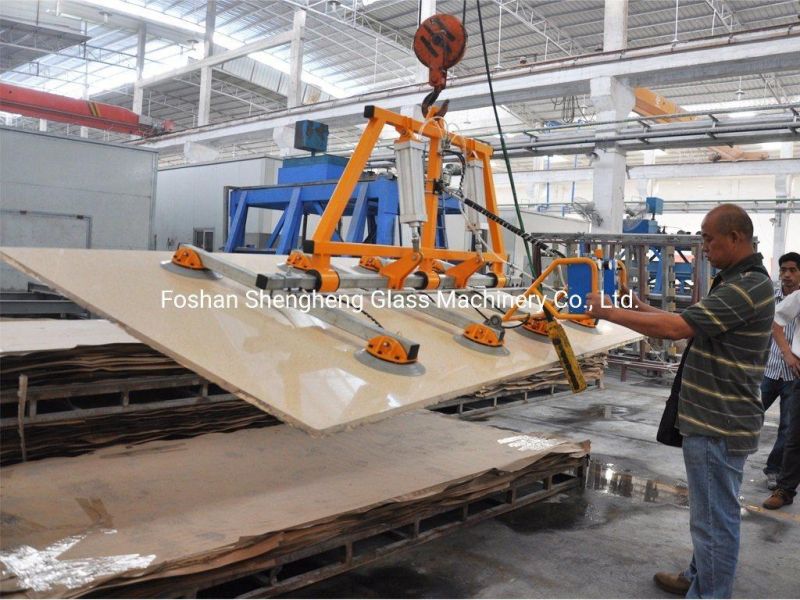

This kind of slab vacuum lifters are designed to use with hoist equipment, employ vacuum to support loads, with powered tilt movements to handle and transport stone slabs and tiles.

It can be custom designed and produced to handle and move slabs onto the pressing machine.





Features

1. Fast vacuum created by compressed air rapid passing through the vacuum generator.

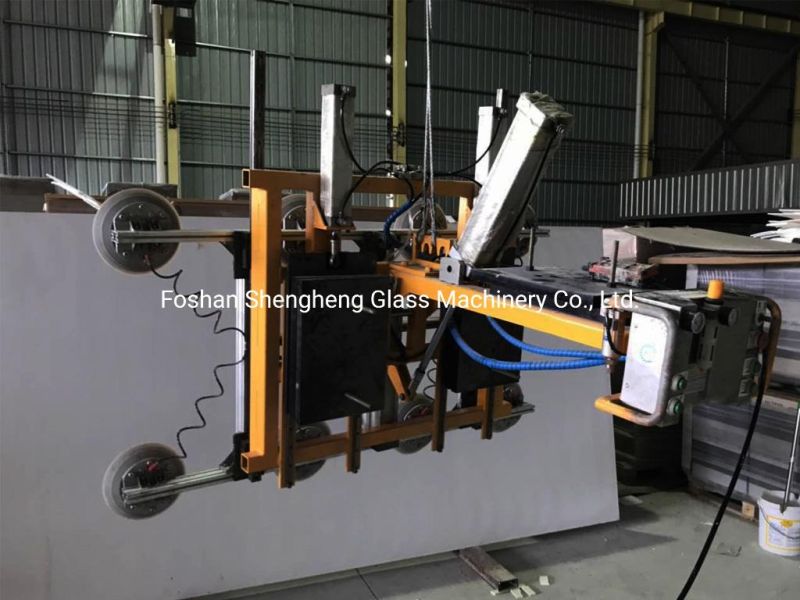

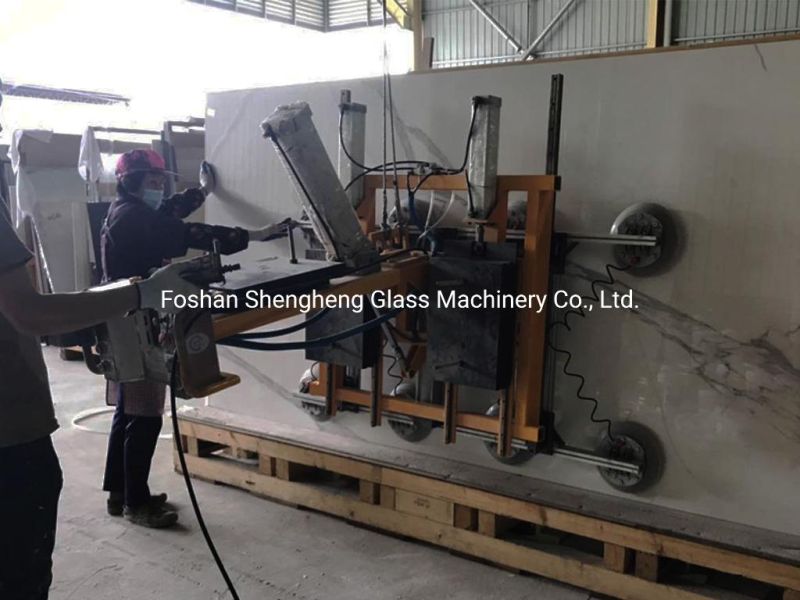

2. Powered tilt movement make it easy to flip the slab and tiles.
3. Operate buttons on the box for controlling valves to complete vacuum holding and movements work.
4. Pneumatic parts and components for the system lead to easy and less maintenance and repair.
5. Vacuum automatic compensation system sensors and restarts for more vacuum.
6. Custom design and produce as per actual working situations.

Technical Data

MODEL	SH-QF08-08
Lifting Capacity	500 kg

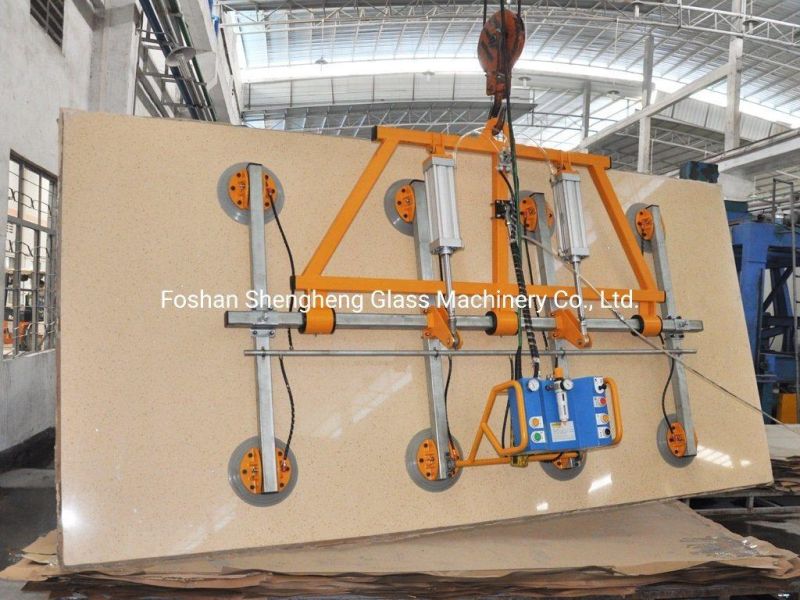

Vacuum Pad	8 / 250mm diameter
Air Power	6-8 bar
Safety Factor	2.5
Max. Panel Size	4800*2000mm
Min. Panel Size	1200*1000mm
Holding Time (power loss)	> 10 minutes
Lifting / lowering	Hoist equipment
Movements	Pneumatically tilt 90°
Application	Slab & tile production and processing
