Pneumatic Vacuum Lifter for Slabs and Tiles
Foshan Shengheng Glass Machinery Co., Ltd.- Application：Lifting and Handling Porcelain Tiles,Ceramic Tiles
- Power：6-8 Bar Air
- Loading Capacity：300kg
- System：Pneumatic System
- Suction Pad：Round Shape, Silicone Material
- Pad Number：4 PCS, 250mm Diameter
Base Info
- Model NO.：SH-QFX04-03
- Performance：Pneumatic Tilting or,and Pneumatic Rotation
- Transport Package：Plywood Case
- Trademark：SHENGHENG
- Origin：China
- HS Code：842890
- Production Capacity：500 Sets,Year
Description
Basic Info.
Model NO. SH-QFX04-03 Performance Pneumatic Tilting or/and Pneumatic Rotation Transport Package Plywood Case Trademark SHENGHENG Origin China HS Code 842890 Production Capacity 500 Sets/YearProduct Description

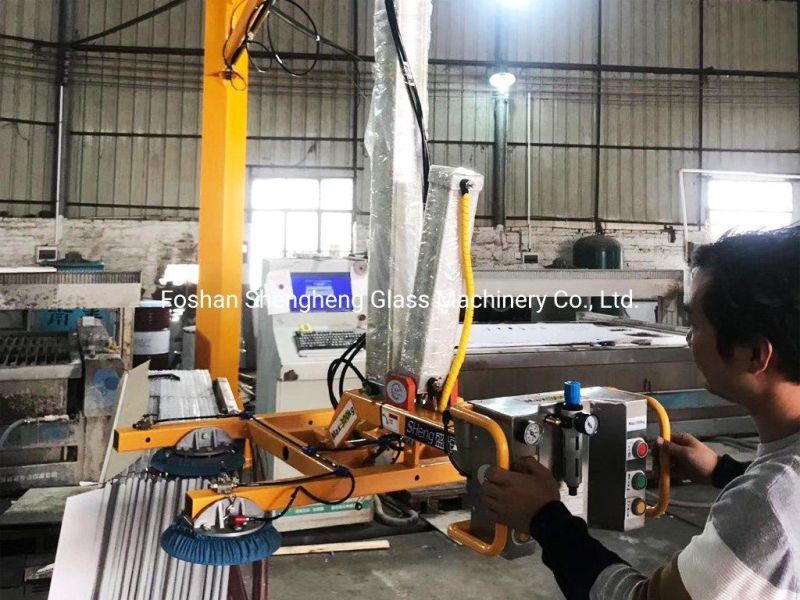

These air-powered lifters can handle and transport most of stone slabs and ceramic tiles, like marble, granite, quartz stone, limestone, artificial stone, laminated panel and so on.A powerful and easy-operated vacuum lifter is used for loading and handling slabs and tiles onto the cutting, engraving, drilling and CNC machines from the racks.

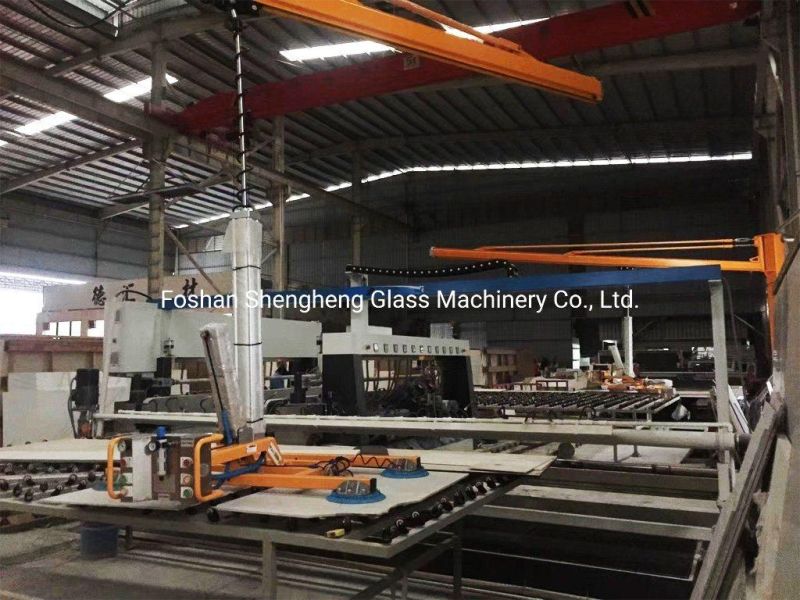

The good device is applied for loading and uploading slabs and tiles at vertical and horizontal stone grinding and polishing machines.
The idea equipment for lifting and handling finished stone and ceramic products into wooden crates or in storage.
Features
- Vacuum generation quickly created by compressed air for fast holding slabs/tiles.
- Executions of lifting, tilting or rotation movements are effected pneumatically.
- Manually operated control valves ensure the précised and adjustable movements.
- Single energy source (compressed air) makes its less maintenance and service.
- Simple and ergonomically structures result in own light weight and comfortably effortless handling.

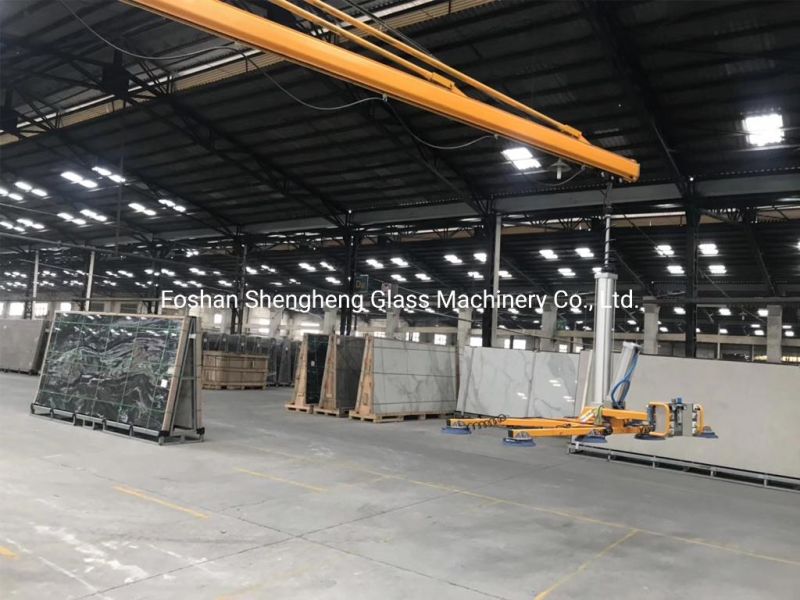

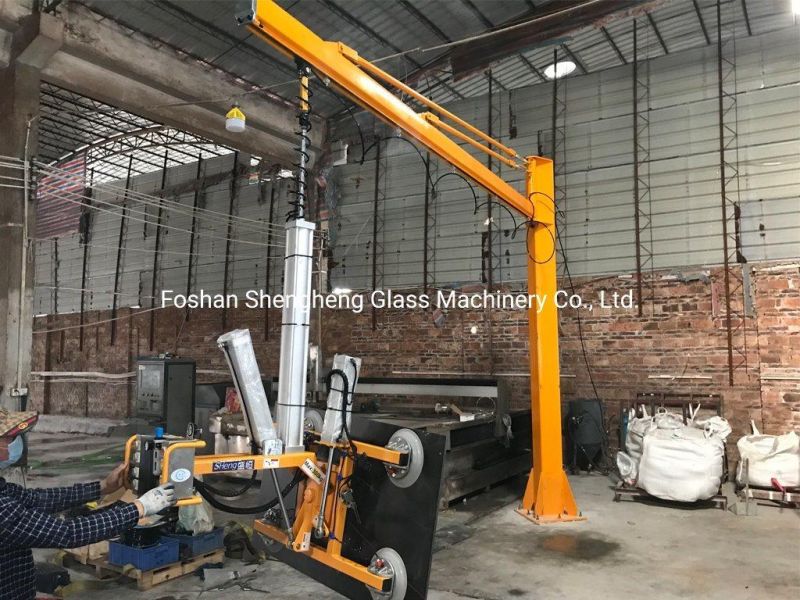

- Used and attached to lightweight crane, jib slewing crane and overhead crane.

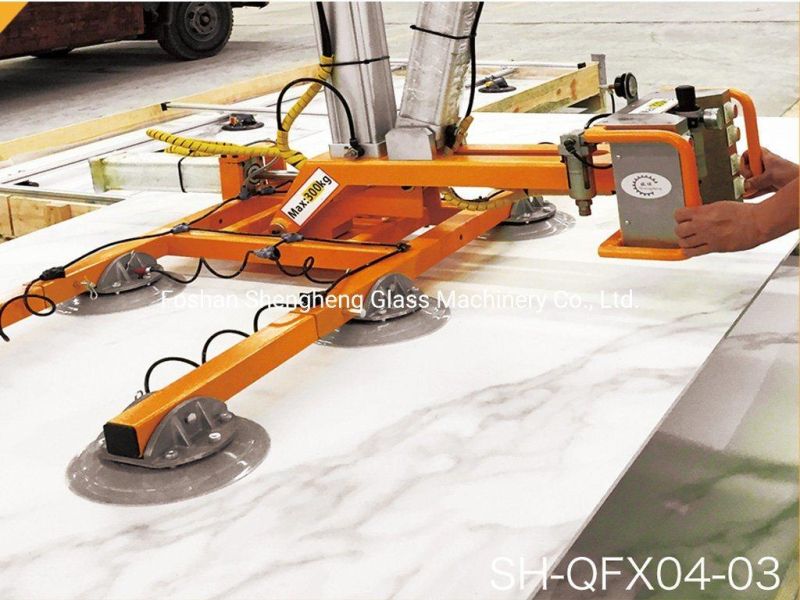

- Silicone suction pads make it tightly touch and support slabs/tiles.
Technical Data
| MODEL | SH-QF04-03 | SH-QFX04-03 |
| Lifting Capacity | 300 kg | 300 kg |
| Vacuum Pad | 4 / 250mm dia. | 4 / 250mm dia. |
| Air Power | 6-8 bar | 6-8 bar |
| Safety Factor | 2.5 | 2.5 |
| Max. Panel Size | 2400*1200mm | 2400*1200mm |
| Min. Panel Size | 800*800mm | 800*800mm |
| Holding Time (power loss) | > 10 minutes | > 10 minutes |
| Lifting / lowering | air cylinder, 80~120cm | air cylinder, 80~120cm |
| Movements | tilt 90° / rotation 90° | tilt 90° & rotation 90° |
| Extension | inclusive / exclusive | inclusive / exclusive |
