• Model NO.：SH-QF08-05
• Performance：Pneumatic Tilting or,and Pneumatic Rotation
• Transport Package：Plywood Case
• Trademark：SHENGHENG
• Origin：China
• HS Code：842890
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. SH-QF08-05 Performance Pneumatic Tilting or/and Pneumatic Rotation Transport Package Plywood Case Trademark SHENGHENG Origin China HS Code 842890 Production Capacity 500 Sets/Year

Product Description

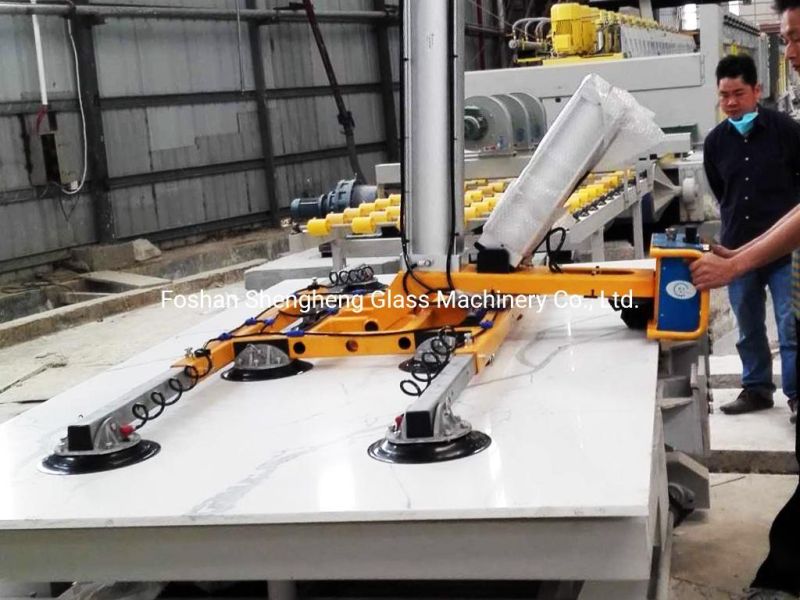

Pneumatic stone vacuum lifters can handle and transport large-sized and heavy stone slabs and ceramic tiles,

A powerful and easy-operated vacuum lifter is used for handling and lifting slabs and tiles in the production and processing lines.

Also it is the ideal equipment for lifting and handling finished stone and ceramic products into wooden crates or in storage.




Features

1. Vacuum generation quickly created by compressed air for fast holding slabs/tiles.

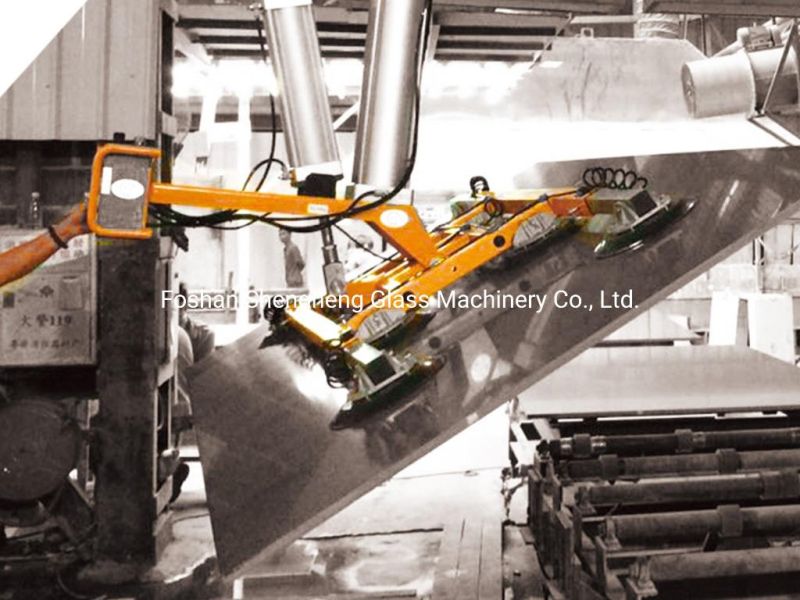

2. Executions of lifting, tilting or rotation movements are effected pneumatically.
3. Manually operated control valves ensure the précised and adjustable movements.
4. Single energy source (compressed air) makes its less maintenance and service.
5. Simple and ergonomically structures result in own light weight and comfortably effortless handling.

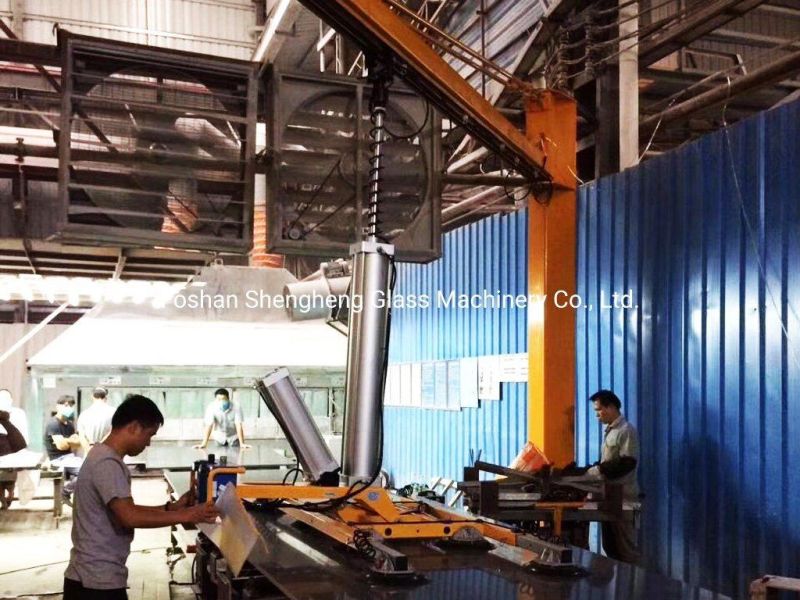

6. Used and attached to lightweight crane, jib slewing crane and overhead crane.

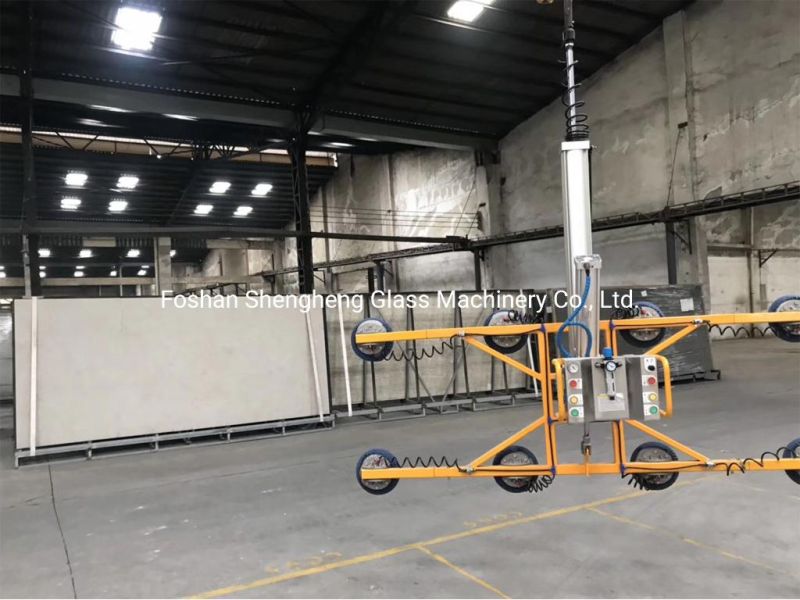

7. Silicone suction pads make it tightly touch and support slabs/tiles.

Technical Data


MODEL	SH-QF08-05	SH-QFX08-05
Lifting Capacity	500 kg	500 kg
Vacuum Pad	8 / 250mm dia.	8 / 250mm dia.
Air Power	6-8 bar	6-8 bar
Safety Factor	2.5	2.5
Max. Panel Size	4800*1600mm	4800*1600mm
Min. Panel Size	1000*900mm	1000*900mm
Holding Time (power loss)	> 10 minutes	> 10 minutes
Lifting / lowering	air cylinder, 80~120cm	air cylinder, 80~120cm
