• Model NO.：cone crusher
• Finished Surface：Thread Process
• Certification：CE, ISO
• Condition：New
• Color：Customized
• Input Size：0-350mm
• Material：Granite, Diabase, Basalt, Pebble, Limestone, Dolom
• Motor Power(Kw)：132-630
• Transport Package：Transport Package
• Specification：45-1200t,h
• Trademark：CHAENG
• Origin：Henan
• Production Capacity：45-1200t,H

Basic Info.

Model NO. cone crusher Finished Surface Thread Process Certification CE, ISO Condition New Color Customized Input Size 0-350mm Material Granite, Diabase, Basalt, Pebble, Limestone, Dolom Motor Power(Kw) 132-630 Transport Package Transport Package Specification 45-1200t/h Trademark CHAENG Origin Henan Production Capacity 45-1200t/H

Product Description

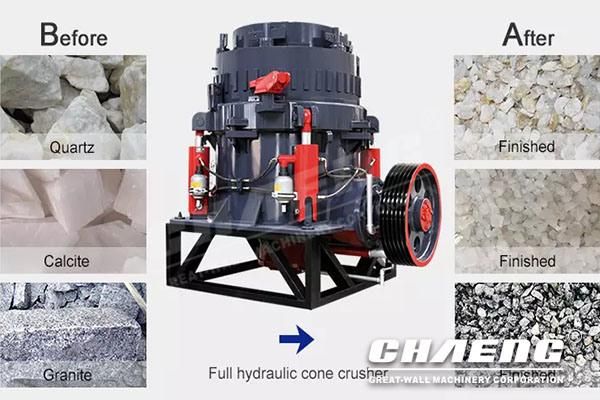

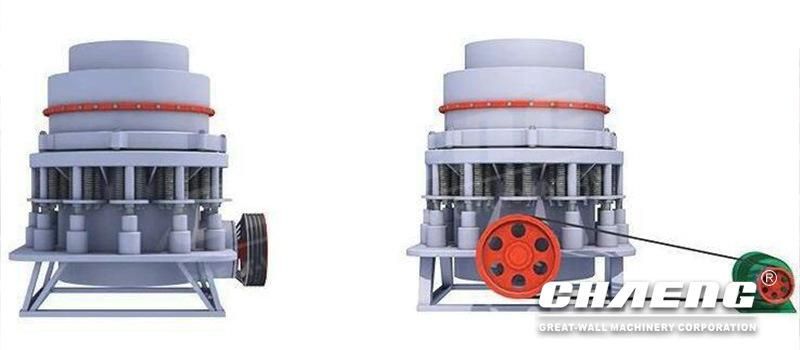

Introduction of Stone Cone Crusher

Cone crusher is a modern high-performance crusher with high pendulum frequency, optimized cavity and a reasonable stroke, which is based on the introduction and absorption from foreign technology, according to the needs of the customer, and based on the principle of pyramid and the conceptual of more breaking less grinding. It is widely used in metal and non-metallic minerals, cement plant, construction, gravel and metallurgical industries Large Capacity Stone Crusher Cone Crusher for Sand Stone Crushing Plant.

Our hydraulic cone crusher has muti-cylinder with advanced design which imports the most advanced technology. After many years of practicing, we produce this kind of hydraulic cone crusher at last. Its performance reached the advanced level of the whole industry, and it is the ideal choice for the mining equipment. By using hydraulic motor to adjust the discharging opening size on-load is very easy, which makes the crushing loop balance and realizes high production efficiency. If you want to realize full-automatic control with DCS collecting and distributing control system, it only needs to install hydraulic motor position sensor to track the discharging opening size of the crusher. All the components can be disassembled and miantained from the top or side of the crusher, and moveable cone and fixed cone are disassembled easily without dismounting the main frame and fastening bolt. It is convenient to replace liner.

Features of Cone Crusher In Sand Crushing Plant

1 Higher production capacity, better final product particle size.
2 Replace crushing cavity if you need medium, fine and super fine product.
3 Cubic particle product.
4 Multiple production and avoid accidents and damage caused by human incorrect operation.

Specification of cone crusher


Model	Discharge size	Installed Power	Min. capacity	Max. capacity	Chamber	Auxiliary classification
GCPF500	32mm	400Kw	400t/h	530t/h	C2 thick	HP Hydraulic
GCPF300	16mm	220Kw	170t/h	215t/h	M middle	HP Hydraulic
GCPF500	38mm	400kw	425t/h	580t/h	C1 Super thick	HP Hydraulic
GCPF300	22mm	220Kw	220t/h	260t/h	C2 thick	HP Hydraulic
GCPF440	25-51mm	220Kw	195t/h	486t/h	S1 middle thick	Single Cylinder Hydraulic
GCPF440	29-51mm	220Kw	225t/h	511t/h	S1 middle thick	Single Cylinder Hydraulic
GCPF440	35-54mm	220Kw	267t/h	601t/h	S1 Super thick	Single Cylinder Hydraulic
GCPF660	38mm	315Kw	318t/h	895t/h	S2 middle thick	Single Cylinder Hydraulic
GCPF660	41mm	315Kw	345t/h	1050t/h	S1 middle thick	Single Cylinder Hydraulic

Advantages of cone crusher in Sand Crushing Plant
1.Good grain shape, large output;
2.Less consumption of vulnerable parts, low operating cost;
3.Hydraulic protection and hydraulic cavity cleaning with high degree of automation to reduce downtime;
4.Thin oil lubrication to improve service life;
5.It can be installed both in the plant and on the concrete foundation;
6.With multi-cylinder crushing cavity, it can produce intermediate, fine and ultra-fine proudcts by just replacing different cavities.

About CHAENG
1.Based on high-end and advanced equipment
With large casting base, machining and assembling workshop, CHAENG has strong casting and processing strength. All the main engines for the turnkey project are self-made, and other supporting auxiliary machines are bought from excellent brands at home and abroad, which means that we can control the whole quality and construction period of the project.

2.Multiple patents, controlling the core technologies
The company has a professional technical team in many fields with more than 100 people, such as technology, equipment, hydraulic, electrical and civil engineering. So we can design the whole sandstone aggregate production line independently. We stick to independent research and innovation all the time, continuously optimize product performance and improve the technological content of products. We have research center of aggregate, powder and high-performance concrete, so we can provide scientific and professional sandstone aggregate production system solutions for the customers.
CHAENG has won man honorary awards, such as "top 100 suppliers in China cement industry", "top 10 innovative enterprise in China cement industry", "high-growth private enterprise in Henan Province", "technological innovation demonstration enterprise of  energy conservation and emission reduction in Henan Province", "National high-tech enterprise" and so on.
