• Model NO.：Bd2030
• Certification：CE, ISO, GOST, SONCAP, UL, CCC, API, Ce, ISO 9001
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry, Stone,Mable,Tile,Granite,Tombstone,Sign Plate
• Customized：Customized
• Process Usage：CNC Non-Conventional Machine Tools
• Movement Method：Linear Control
• Control Method：Open-Loop Control
• Numerical Control：CNC,Mnc
• Processing Precision：0.01~0.02(mm)
• Performance Classification：High-End CNC Machine Tools
• Condition：New
• Transport Package：Wooden Case Package
• Specification：1800*2500mm
• Trademark：Mars
• Origin：China
• HS Code：84659900
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. Bd2030 Certification CE, ISO, GOST, SONCAP, UL, CCC, API, Ce, ISO 9001 Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry, Stone/Mable/Tile/Granite/Tombstone/Sign Plate Customized Customized Process Usage CNC Non-Conventional Machine Tools Movement Method Linear Control Control Method Open-Loop Control Numerical Control CNC/Mnc Processing Precision 0.01~0.02(mm) Performance Classification High-End CNC Machine Tools Condition New Transport Package Wooden Case Package Specification 1800*2500mm Trademark Mars Origin China HS Code 84659900 Production Capacity 300 Sets/Month

Product Description

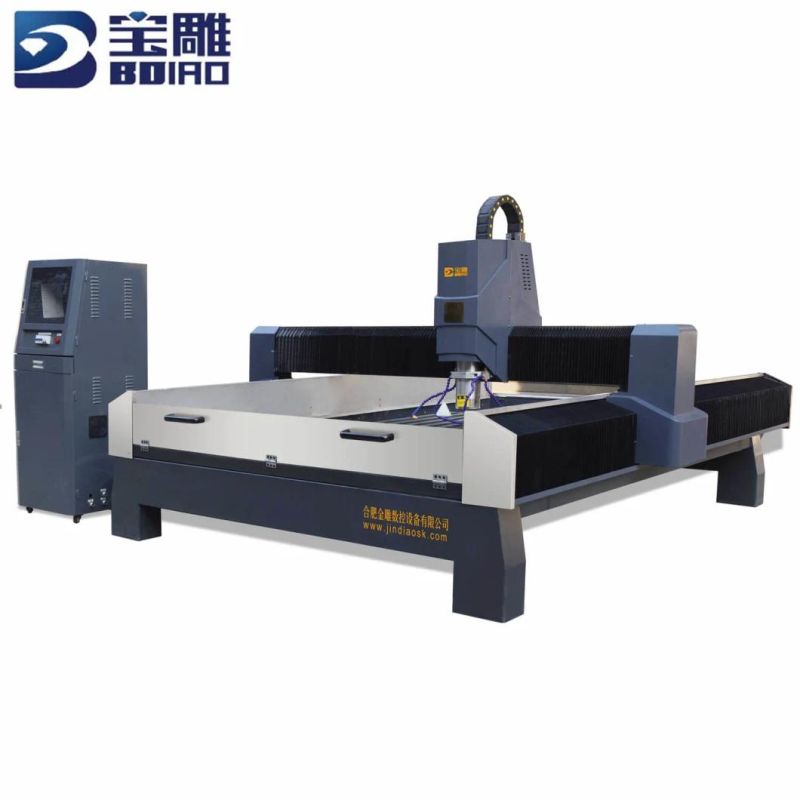

Bd2030 3D Stone CNC Router Machine/CNC Routing Machine/CNC Engraver/CNC Engraving Machine/CNC Carving Machine

Keywords:15 years experience of production
                     ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                     Three Brand: Mars, Golden Eagle,Borio


Description:
Bd2030 3D Stone CNC Router Machine/CNC Routing Machine/CNC Engraver/CNC Engraving Machine/CNC Carving Machine is BOIRO featured machine widely used in stone processing industry,tombstone processing industry,mold processing industry,all kings of art relief,decoration industry,ceramic processing,advertising industry and so on.BOIRO design it for many years, now popular in the market, it's economic machining center of stone cutting machine.

Functions:
The functions of this machine include three-dimensional relief and two-dimensional sculpture such as cutting, chamfering and drilling.

Applicable Materials:
Marble,jade,granite,tombstones,milestones,ceramic tiles,grass,bluestone,etc..


Application Scope:
Widely used in stone processing industry,tombstone processing industry,mold processing industry,all kings of art relief,decoration industry,ceramic processing,advertising industry and so on.


Parameters:

Model	BD1825A Heavy Duty Stone CNC Router Machine
X/Y/Z Axis Working Area	1800*2500*300mm
Machine Size	3700*2500*2500mm
Working Table	Aluminum T-slot table protected with PVC
Machine Structure	Thick steel welded, with aging treatment
Control System	NC Studio/DSP Control
Drive Motor	Stepper motor / Yaskawa Servo motor, 750W
Spindle Motor Power	5.5KW water cooled; Adjustable Rotational Speed with 0-24000 rpm/min
Inverter	Zoncn (Optional with Fuling)
Drive System	X/Y axis helical rack & pinion, Z axis Taiwan ball screw(contracting brake for Z axis)
Guide Rail	Taiwan imported linear guide rail
Cooling System	Circulating water-refluxing design
Resolution	0.01 mm
Max. Traveling Speed	25 m/min
Max.Working Speed	15 m/min
Water Sink/Tank	Powder-painting (Stainless steel is optional)
Dictate Format	G-Code / HPGL
Working Voltage	AC380V 3PH 50HZ
Tool Shank	Φ 3.175mm,Φ 4mm, Φ6mm, Φ12mm

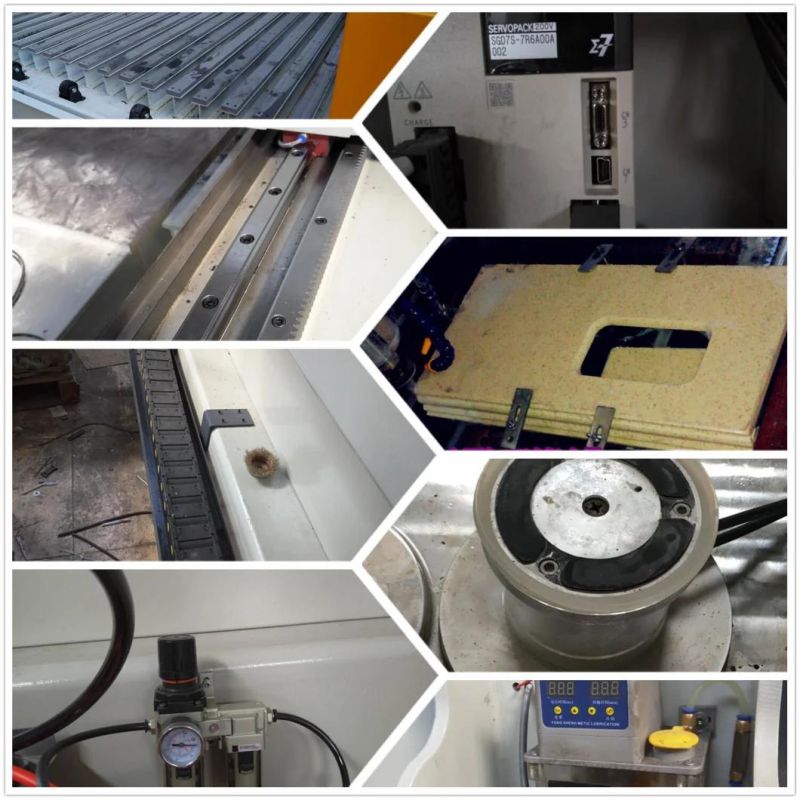

Accessories:


Performance Features:
1.Thick steel tube welded body structure, with aging treatment, ensure no deformation, high rigidity, good stability.
2.Famous brand big torque motor, low noise, large power, high efficiency.
3.Adopt imported square linear guide rail, high speed, high precision, long life.
4.Z axis adopts high precision German ball screw drive,ensure accuracy;Y axis adopts high precision gear rack drive, fast speed, big strength.
5.Reasonable dustproof and waterproof design, fully protect the machine transmission parts.
6.Good compatibility, cam be compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JD Paint/ Ucancam, etc..

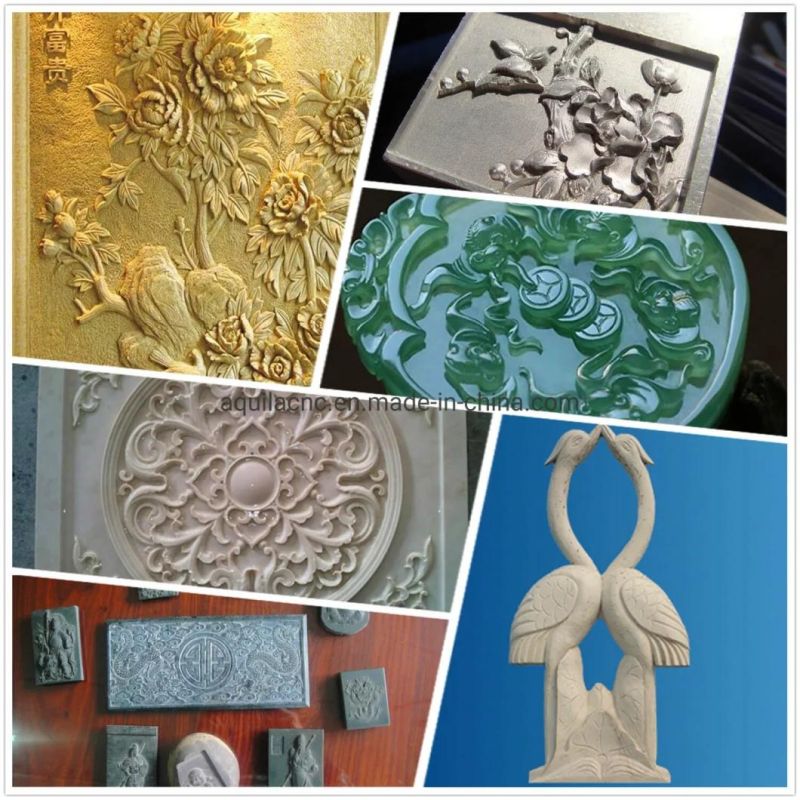

Samples:
