Automatic Infrared Marble Cutting Machine Tile Cutter Stone Cutting Machine (HQ400-600-700)

Xiamen Aga Import and Export Co., Ltd.
  • After-sales Service：24 Hours on Line Services
  • Warranty：1 Year Warranty
  • Type：CNC Cutting Machine
  • Usage：Concrete Curb, Granite, Marble, Quartz Sandstone Limestone Other Engineered Stones
  • Application：Machinery & Hardware, Construction, Stone Industry
  • Source Voltage：380V

Base Info

  • Model NO.：HQ400-600-700
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Control：CNC
  • Certification：ISO, CE
  • Blade Size：300-700mm
  • Blade Tilting：0-45 Degrees
  • Table Size：3200*2000mm
  • Table Rotation：0-360 Degrees
  • Table Tilting：0-85 Degrees
  • Max. Cut：3200*2000mm
  • Max. Cut Depth：230mm
  • Spindle Motor：18.5kw 25HP
  • Total Power：26.5kw
  • Size (L*W*H)：6*5.7*3.5m
  • Weight：7500kg
  • Transport Package：Plastic Packing
  • Specification：6*5.7*3.5m
  • Trademark：AGA
  • Origin：Xiamen, China
  • HS Code：84641010
  • Production Capacity：200 Sets,Month

Description

ModelHQ700HQ600HQ400 Laser Guide DeviceYesYesYesBlade tilting 45° (Angle Cut Mitered)YesN/AN/ATable Rotation 90°YesYesYesTable Rotation 0-360°
(stopping at each 45°)YesOptionalOptionalTable tilting 0 - 85°YesYesYesPower Of Spindle Motor18.5kw / 25 HP18.5kw / 25 HP15kw / 20 HPMax Length of Cutting: (Table Size)3200 x 2000mm 126"x78"3200 x 2000mm 126"x78"3200 x 2000mm
126"x78"Max Thick of Cutting:230 mm 9"180 mm 7"110 mm 4"Steel Walls IncludedYesOptionalOptional

Stone Cutting Machine Introduction:
Automatic Infrared Marble Cutting Machine Tile Cutter Stone Cutting Machine (HQ400-600-700)Automatic Infrared Marble Cutting Machine Tile Cutter Stone Cutting Machine (HQ400-600-700)The main structures of this machine is made of strong cast iron and stainless steel for protection.
Four pistons provides stable performance for cutting.

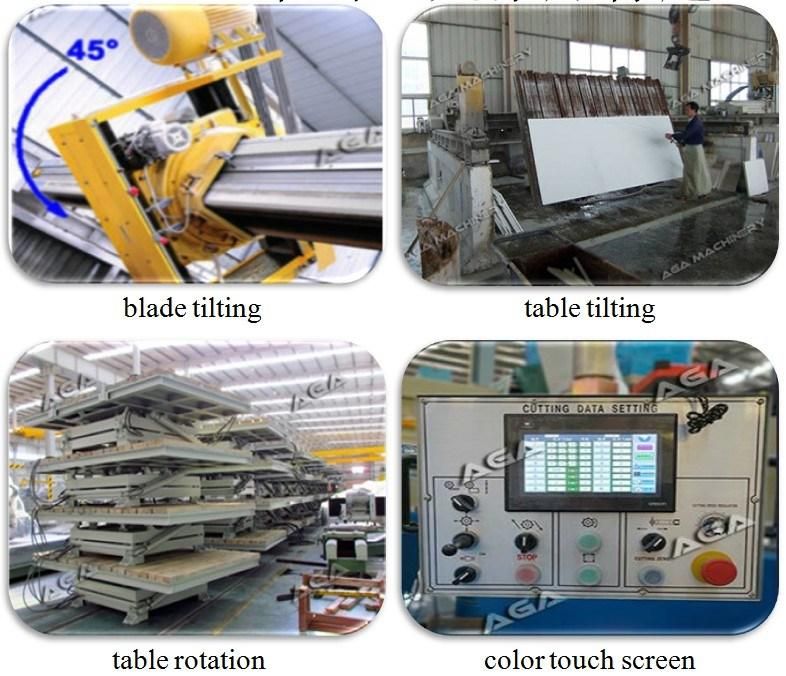

The machine blade can tilts 45 degrees for auto miter cuts, the miter cut is preferble for more HQ700.

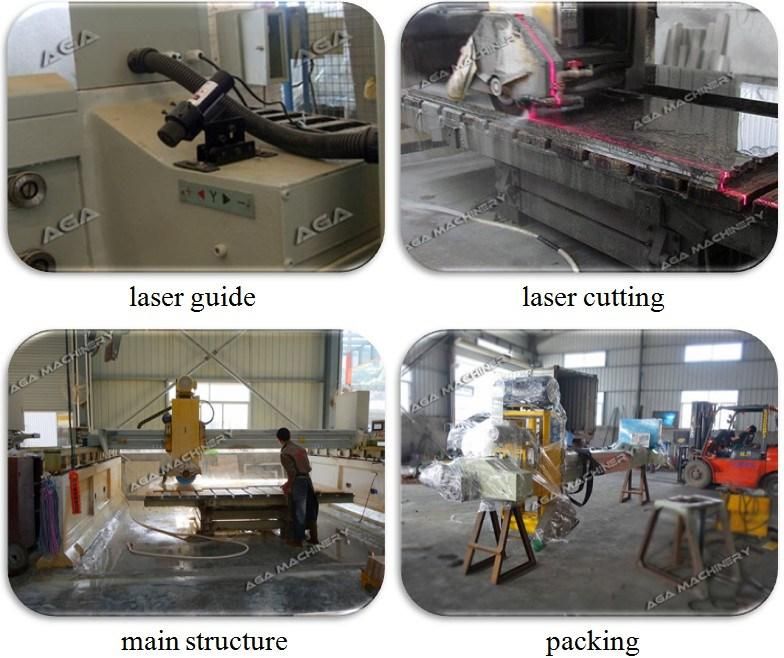

The machine is an infrared one which laser guides shows precision cutting everytime.
Machine table can tilt 85 degrees to load the stone materials easily, and it can rotate 0-90 degrees to change the cutting position automatically, rotating 0-360 degrees is optional.
The whole machine is microcomputer control and works automatically by program.
Touch screen operation is simple.


FAQs:
1) Payment:
T/T in advance, 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 days ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.


Key Words:
stone cutting machine, marble cutting machine, granite cutting machine, cnc cutting machine, cnc machine, slab cutting machine, tile cutting machine, sandstone cutting machine, slab sawing machine, bridge cutting machine, edge cutting machine, stone bridge saw, laser bridge saw, auto bridge saw, etc.


AGA Machinery:
Automatic Granite Marble Cutting Machine for Slabs and Tiles Cutting (HQ400-HQ600)AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable service. The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. The equipments have been successfully exported to world stone market in U.S.A, Canada, Europe, Mid East, Egypt, India, etc.
