• Model NO.：1325,1530,2030
• Engraving Head Speed Adjustability：Wide Adjustable Range
• Certification：CE
• Current：AC
• Application：Glass, Stone Industry
• Customized：Customized
• Working Area：1300*2500*300mm
• Spindle：Water Cooling Spindle(Optional Air Cooling)
• Spindle Speed：600-24000rpm
• Table：Aluminum T-Slot Table
• Transmission：Helical Rack
• Motors：Stepper Motor
• Control System：Ncstudio Control System
• Inverter：Sunfar Inverter
• Delivery Time：10 Working Days
• Transport Package：Exporting Plywood Package
• Specification：CE
• Trademark：ZHONGKE
• Origin：China
• HS Code：8465990000
• Production Capacity：100 Sets,Month

Model

ZK-1325

Machine lathe

Whole thicker seamless steel structure

Work dimensions

1300*2 500*300mm

Max. feeding height

300mm or bigger

Working table

Aluminum T-slot table with stianless steel water tank

Guide way

Imported HIWIN square orbit from Taiwan

Driving mode

XY-axis rack pinion, z-axis ball screw

Mechanical precision

0.02mm

Repositioning accuracy

0.05mm

Max. Speed

10m/min

Working speed

0-6m/min

Driving motor

Stepper motor

Software

Type 3, Art cut, Art cam and Ucancam software

Voltage

AC 380V 50Hz or 220V 50Hz

Spindle

3.2KW water cooling spindle

Spindle speed

0 - 24,000rpm/min

Blade diameter

3.175mm, 4mm, 6mm, 8mm, 10mm, 12mm, 12.7mm

Control system

Ncstudio control card system

Command

G code, u00, mmg, plt

Auxiliary device

Rotary chuck

Certification

CE

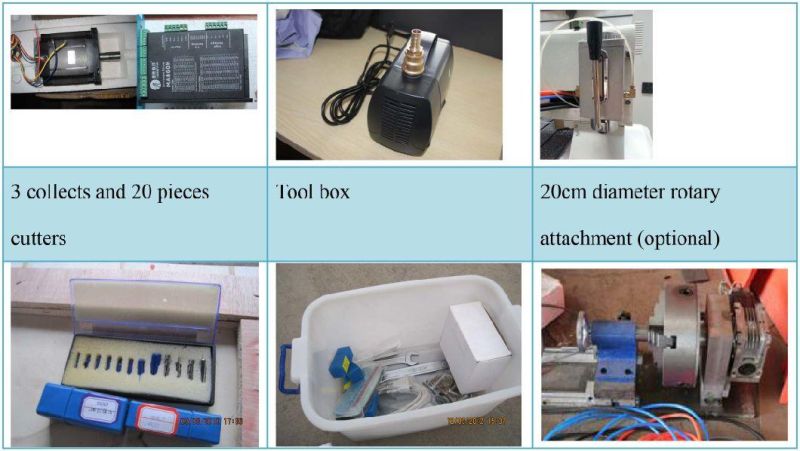

Configuration photos:

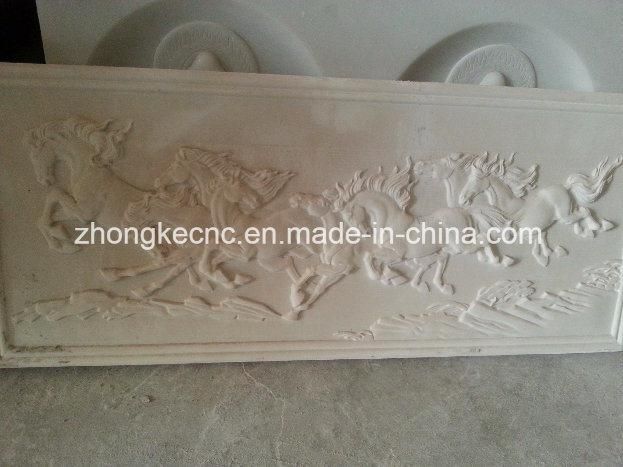

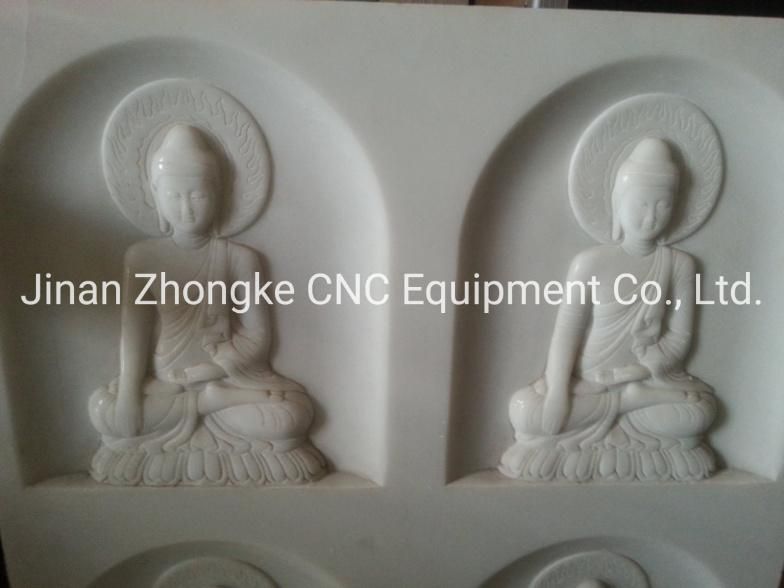

Sample photos:

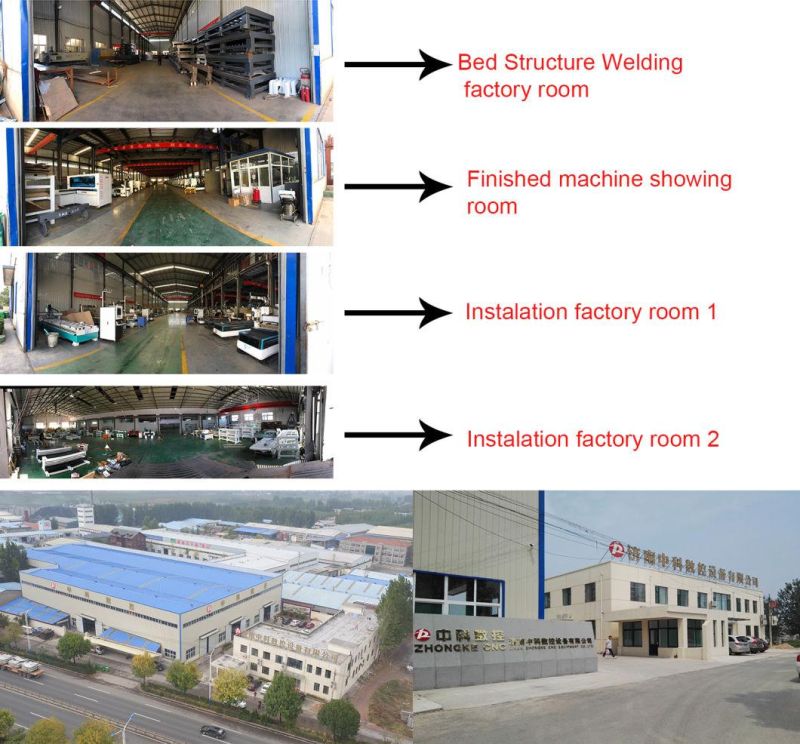

JINAN ZHONGKE COMPANY PHOTO


If you are interested in our machine, welcome to contact with me
