• Model NO.：PE
• Finished Surface：Gear Process
• Condition：New
• Color：Yellow
• Installation：Under The Guidance of Engineer
• Certificate：ISO9001: 2000
• Rcolor：Various
• Warrenty：1 Year
• After-Sale Service：Training, Technical Support, etc.
• Transport Package：International Packing Standard
• Specification：ISO, CE, SGS
• Trademark：TYM
• Origin：China Mainland
• HS Code：8474209000
• Production Capacity：60 Sets,Month

Basic Info.

Model NO. PE Finished Surface Gear Process Condition New Color Yellow Installation Under The Guidance of Engineer Certificate ISO9001: 2000 Rcolor Various Warrenty 1 Year After-Sale Service Training, Technical Support, etc. Transport Package International Packing Standard Specification ISO, CE, SGS Trademark TYM Origin China Mainland HS Code 8474209000 Production Capacity 60 Sets/Month

Product Description

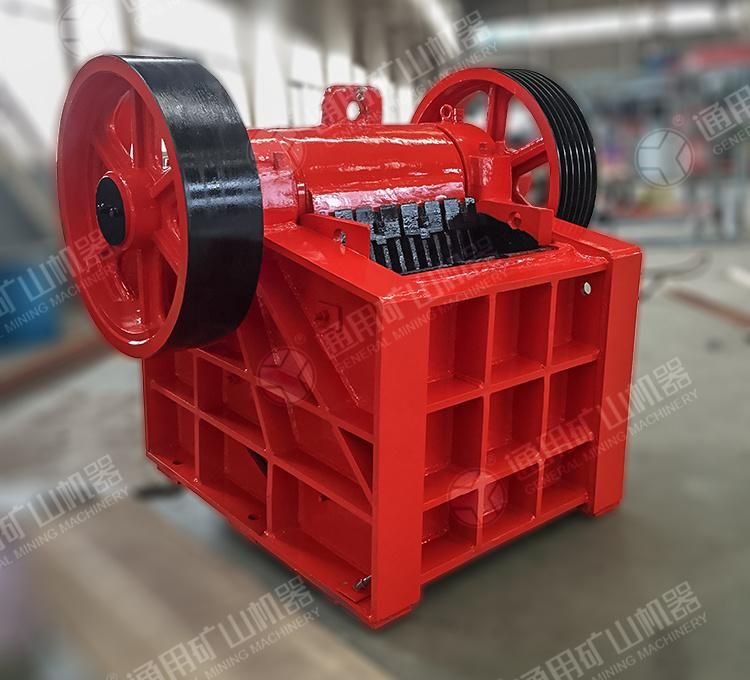

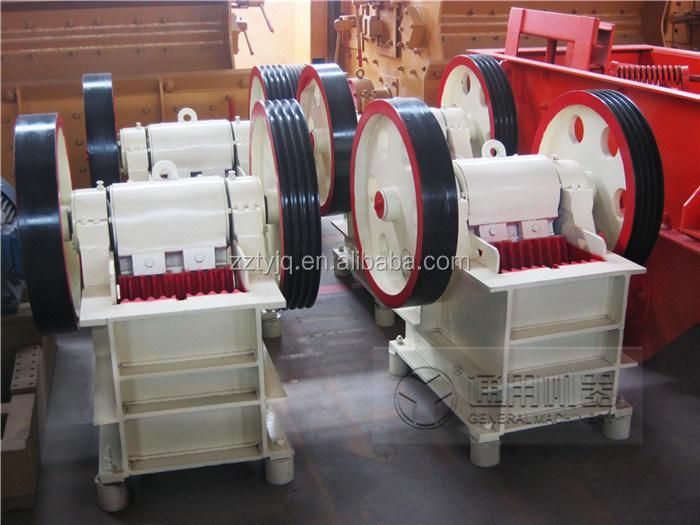

Stone crushing Plant
The application of Jaw Breaker:

Jaw Breaker widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc.

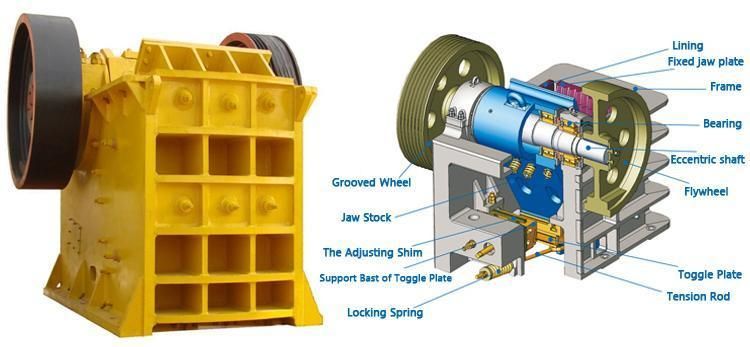

Working Principle of Jaw Breaker:
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves away from fixed jaw by the pulling of rod and spring, the products such as stone after crushing will be discharged from the outlet.

Characteristics of Jaw Breaker:

1. High ratio of crushing

2. Homogeneous final grain size

3. Simple structure

4. Reliable working condition

5. Easy maintenance

6. Low operating cost


Model	Size of Feeder Opening (mm)	Max. Feeding Size (mm)	Capacity (t/h)	Motor Power (KW)	Overall Dimensions (mm)	Weight   (t)
PE150× 250	150× 250	125	1-3	5.5	896× 745× 935	0.8
PE250× 400	250× 400	200	5-20	15	1430× 1310× 1340	3
PE400× 600	400× 600	350	15-60	30--37	1700× 1732× 1653	7
PE500× 750	500× 750	425	50-100	45--55	2035× 1921× 2000	12
PE600× 900	600× 900	480	60-130	55--75	2290× 2206× 2370	17
PE750× 1060	750× 1060	630	80-180	90--110	2655× 2302× 3110	29
PE900× 1200	900× 1200	750	140-260	110-132	3789× 2826× 3025	58
PEX250× 750	250× 750	210	10-40	22--30	1667× 1545× 1020	5
PEX250× 1000	250× 1000	210	15-50	30--37	1550× 1964× 1380	7
PEX250× 1200	250× 1200	210	20-60	37--45	2192× 1900× 1950	8.5

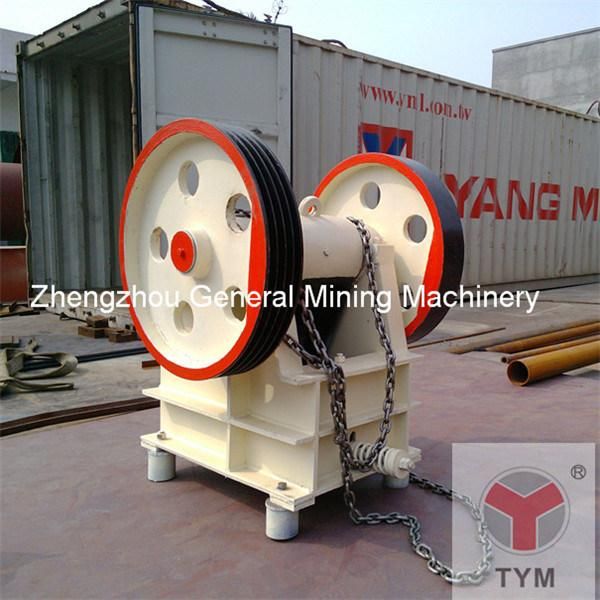

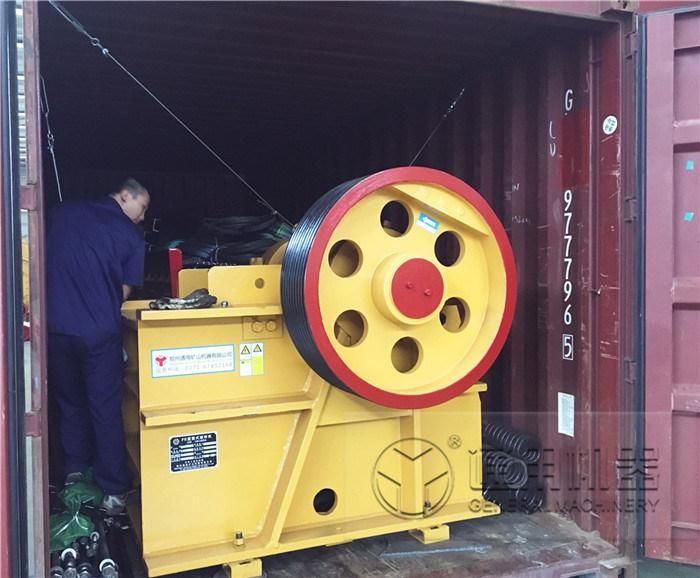

Packing and shipping
Standard parts are packed in the wooden boxes, and the big parts are packed with plastic membrane.The whole machine is loaded in the container.We can also pack them according to your requirement.


1. What advantages does your activated bleaching earth grinding mill have?
-The main advantage of our activated bleaching earth grinding mill over other kinds of mills is that you can grind a friable or crystalline material to 5 - 100 microns average particle size and classify in a very narrow particle size range at the same time. There are no moving parts to wear out or generate heat in our mill and no screens to plug or be punctured.

2. Can you guarantee the quality of your products?
---We have passed CE&ISO9001:2008, and our crushers have been exported to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.
Inquiry service
More details we needed for sending you more suitable quotation.
1. what kind of raw material do you want to process?
2. what is the capacity per hour do you need?
3. what is the raw material input size?
4. what is the finished size you required?

Any inquiries of our activated bleaching earth grinding mill will be highly regard and we will give you the best quotation ASAP. Your satisfaction is our final and forever pursuit.
Please fill in your need products and your message and do not forget email and/or phone if you like to be contacted.
We are looking forward to your inquiries!
