• Model NO.：HLMJX-12C
• Control：PLC
• Automation：Automatic
• Precision：High Precision
• Application：Marble
• Type for Grinding Machine：Disc Grinding Machine
• Grinding Machine Type：Barrel Polishing Machine
• Grinding Method：Wet Grind
• Certification：ISO, CE
• Condition：New
• Polishing Heads Qty：12 Heads
• Container Loaded：1X40gp
• Processing Material：Marble
• Useful Working Width：300-1250mm
• Useful Working Thickness：10-60mm
• No. of Abrasives：5 PCS
• Belt Advancement Speed：0-3500mm,Min
• Spindle Motor Power：7.5kw
• Gross Power：101kw
• Water Consumption：20m³,H
• Gross Weight：21000kg
• Transport Package：Plastic Film Packing
• Specification：9700x2100x2450mm
• Trademark：Hualong
• Origin：Putian, Fujian, China
• HS Code：8464209000
• Production Capacity：50PCS,Month
• Package size per unit product：970.00cm * 210.00cm * 245.00cm
• Gross weight per unit product：21000.000kg

Basic Info.

Model NO. HLMJX-12C Control PLC Automation Automatic Precision High Precision Application Marble Type for Grinding Machine Disc Grinding Machine Grinding Machine Type Barrel Polishing Machine Grinding Method Wet Grind Certification ISO, CE Condition New Polishing Heads Qty 12 Heads Container Loaded 1X40gp Processing Material Marble Useful Working Width 300-1250mm Useful Working Thickness 10-60mm No. of Abrasives 5 PCS Belt Advancement Speed 0-3500mm/Min Spindle Motor Power 7.5kw Gross Power 101kw Water Consumption 20m³/H Gross Weight 21000kg Transport Package Plastic Film Packing Specification 9700x2100x2450mm Trademark Hualong Origin Putian, Fujian, China HS Code 8464209000 Production Capacity 50PCS/Month

Packaging & Delivery

Package size per unit product 970.00cm * 210.00cm * 245.00cm Gross weight per unit product 21000.000kg

Product Description

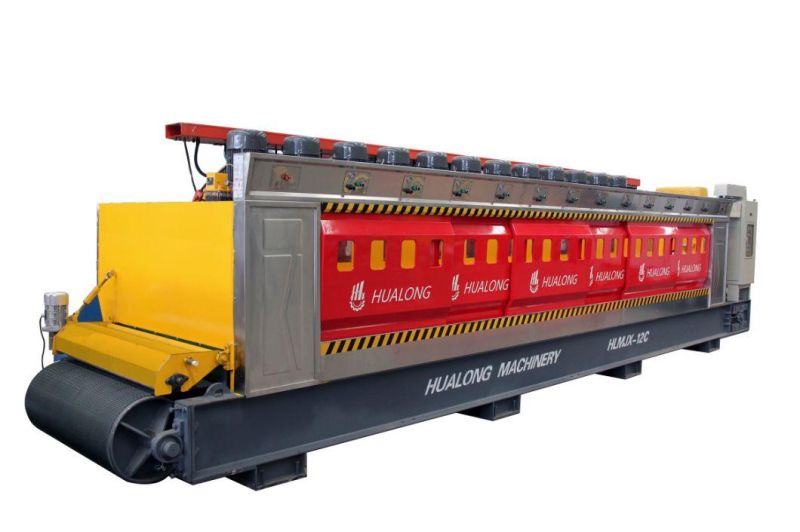

HLMJX-12C Automatic Continuous Resin Grinder

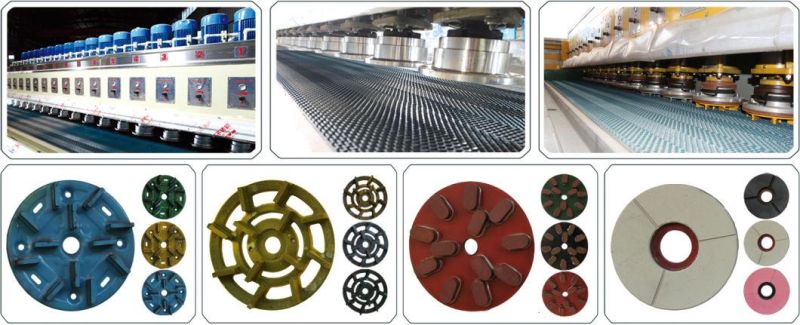

The machine specially fits for grinding and polish the slabs and strips of granite and other natural and engineered stones, moving on a conveyor belt, using a series of grinding heads  or resin abrasive disc.

 --Perfect surface levelling

 --Electric and electronic components in international standards.

 --"Fine-honed" surface finish to reduce the number of the following level-ling units,and consequently, the dressing costs.

We can do the machines according to the client's requirements, like the number of heads, processing width and length.

This Model of machine has adopted international advanced technology to be suitable for the automative polishing of marble and granite slabs. It has brand-new design, reasonable structure, stable performance, high efficiency, friendly interface and high degree of intelligence. It is also with merits of small covering space, low consumption rate of polishing material and power, high yield, and etc. This equipment is especially good for the polish of valuable slabs.

Note: This machine has multiple grinding heads which can be selected different number by customer, it can be made 8 heads, 12 heads, 16 heads, 20 heads, and 24 heads according to customer's request.
