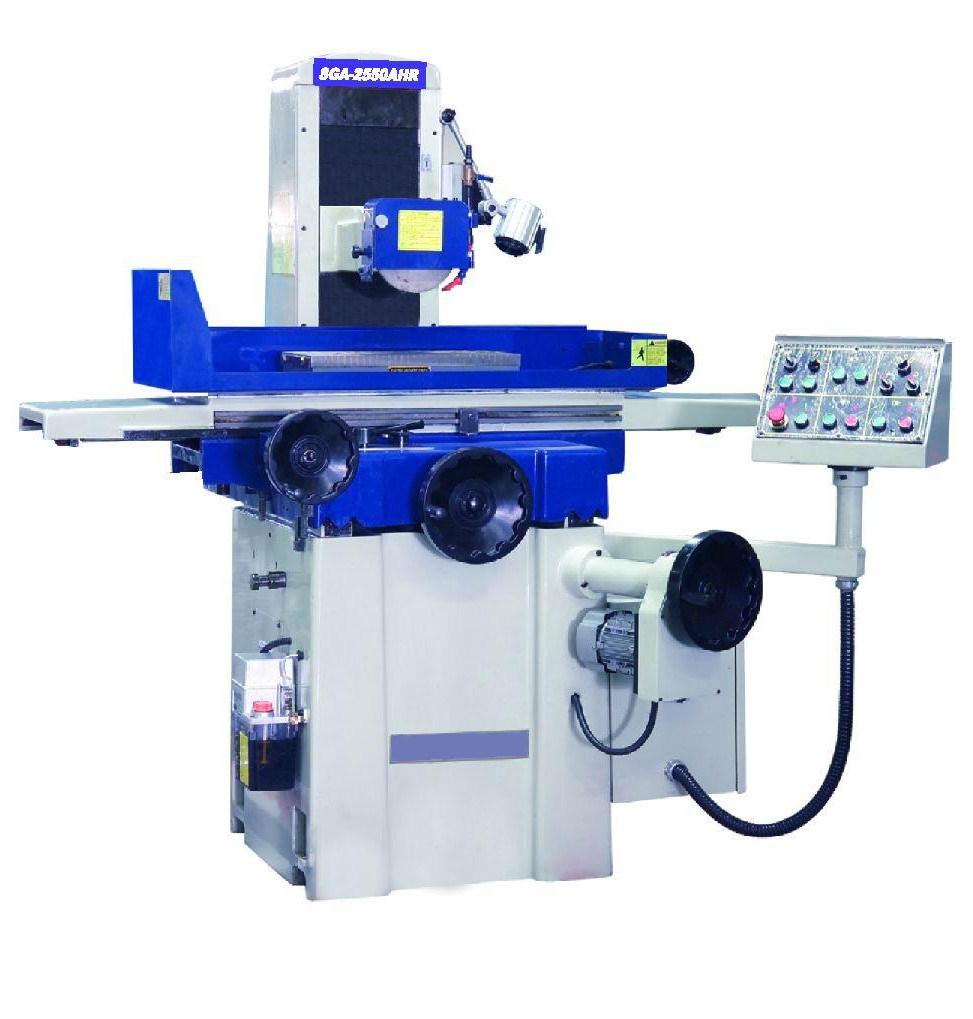

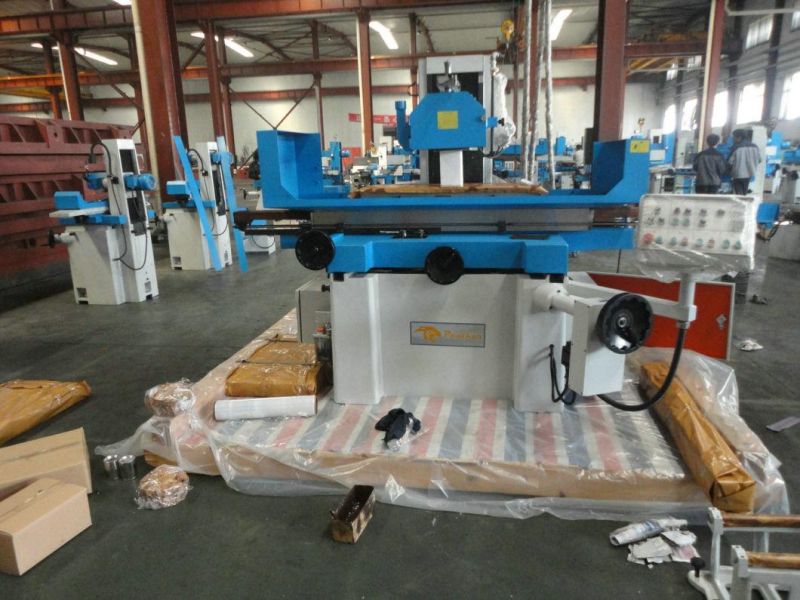

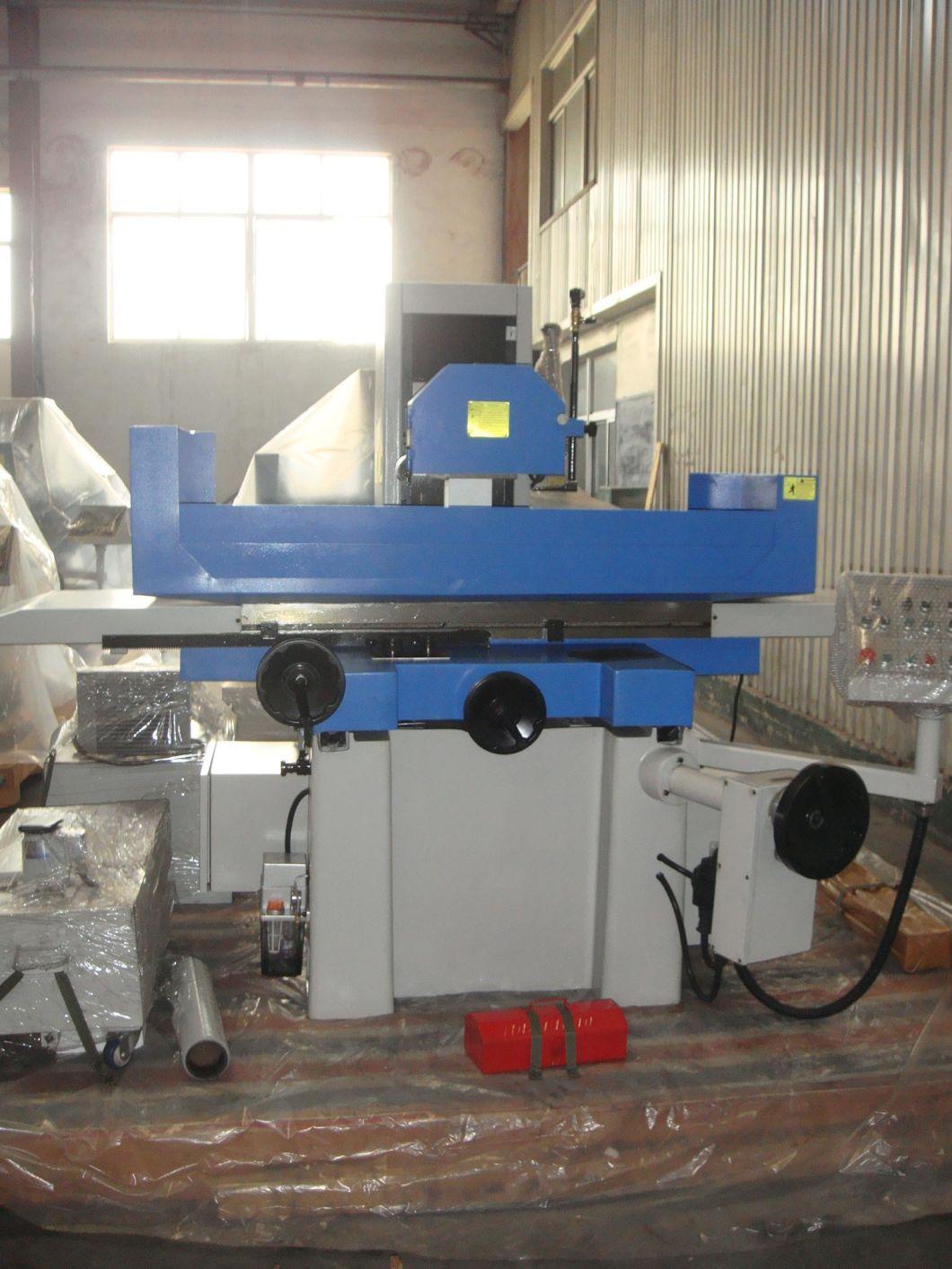

Saddle Moving Surface Grinding Machine
Qingdao G & G Machinery Co., Ltd.- Type：Metal Polish Machine
- Control：CNC
- Automation：Semi-automatic
- Precision：Normal Precision
- Application：Metal
- Type for Grinding Machine：Centrifugal Grinding Machine
Base Info
- Model NO.：SGA2550AHR
- Grinding Machine Type：Vibration Polishing Machine
- Grinding Method：Semi-Dry Grind
- Certification：ISO, CE
- Condition：New
- Table Size：200X400max.
- Grinding Length：560
- Voltage：380V
- Power(W)：2200W
- Dimension(L*W*H)：2000X2100X2175mm
- Transport Package：Carton
- Specification：CE, ROHS
- Trademark：customer brand
- Origin：Jianshu Nanjing
- HS Code：84669300
- Production Capacity：300000 Sets,Per Year
Description
SG SGA saddle moving surface grinder Item/Model Unit SG-2050H/AH SG-2050AHR SG-2050AHD SGA-2550AH SGA-2550AHR SGA-2550AHD table size(WxL) mm 200x400 250x500 max. longitudinal travel mm 510 560 max. cross travel mm 238 275 max. distance from spindle center to table mm 450 450 electro magnetic chuck size mm 200x460 250x500 speed of table longitudinal movement m/min 7-23 table transverse movement auto feed mm/min 0.1-8 rapid speed mm/min 990 feed of handwheel mm/div 0.02 wheelhead vertical movement auto feed mm ---(H/AH/AHR model) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model) rapid speed mm/min ---(H/AH model) / 460 (for AHR model) feed of handwheel mm/div 0.005 grinding wheel speed rpm 2850(50Hz), 3450(60Hz) eize(ODxWxID) mm 200x20x31.75 spindle motor kw 1.5 2.2 hydranlic motor kw 0.75 cooling pump motor kw 0.04 elecating motor kw ---(Ah model) 0.25(AHR model) 0.5(AHD model servo motor) cross feed motor kw 1.04 max. loading capacity of table(include chuck) kg 120 180 total rated power kw 3 3.7 height of machine mm 1675 floor space(LxW) mm 2050x1400 2300x1600 Gross weight kg 1600 1800 package dimensions(LxWxH) mm 1900x1720x2175 2000x2100x2175
