• Model NO.：SGA-3063AH ,SGA-3063AHR ,SGA-3063AHD
• Grinding Machine Type：Vibration Polishing Machine
• Grinding Method：Wet Grind
• Certification：ISO, CE
• Condition：New
• Max. Grinding Diameter：340
• Max. Grinding Length：765
• Place of Origin：Shandong, China (Mainland)
• Voltage：220V
• Power(W)：9000
• Transport Package：Package
• Specification：CE
• Trademark：G&G
• Origin：China
• HS Code：84595900
• Production Capacity：100sets,Month

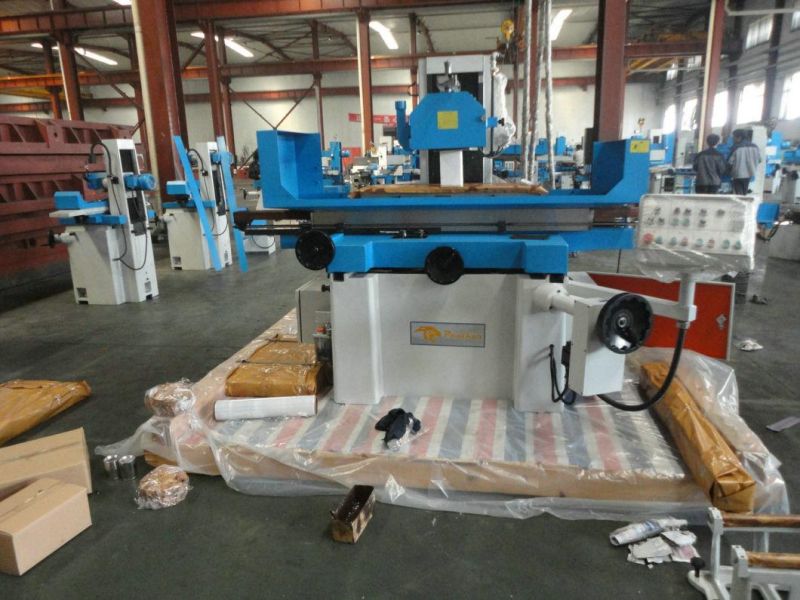

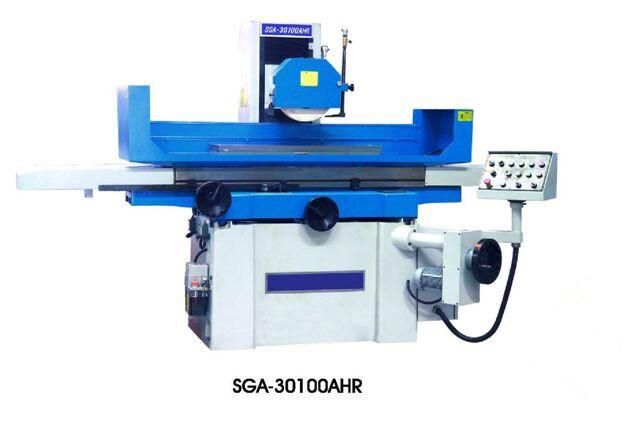

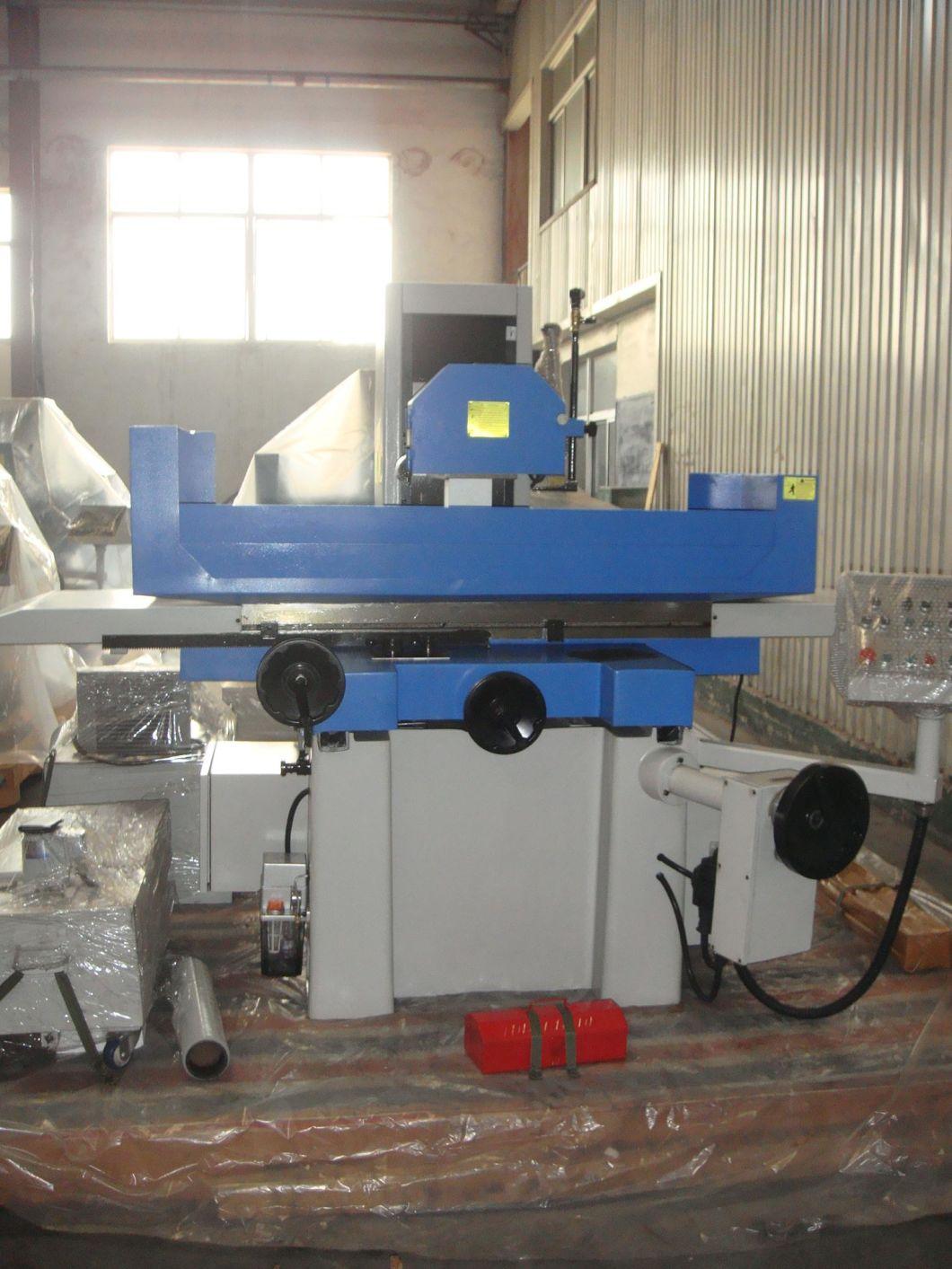

SGA saddle moving surface grinder  Item/ModelUnitSGA-3063AHSGA-3063AHRSGA-3063AHDtable size(WxL)mm305x635max. longitudinal travelmm765max. cross travelmm340max. distance from spindle center to tablemm580electro magnetic chuck sizemm300x600speed of table longitudinal movementm/min7-23table transverse movementauto feedmm/min0.1-8rapid speedmm/min990feed of handwheelmm/div0.02wheelhead vertical movementauto feedmm---(H/AH/AHR model) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model)rapid speedmm/min---(H/AH model) / 460 (for AHR model) 240(only for AHD model)feed of handwheelmm/div0.005grinding wheelspeedrpm1450(50Hz),1750(60Hz)eize(ODxWxID)mm350x40x127spindle motorkw5.5hydranlic motorkw2.2cooling pump motorkw0.125elecating motorkw---(Ah model) 0.25(AHR model) 0.5(AHD model servo motor)cross feed motorkw0.04max.loading capacity of table(include chuck)kg270total rated powerkw9height of machinemm1890floor space(LxW)mm2900x2200Gross weightkg2600package dimensions(LxWxH)mm2350x2220x2150FAQ:
Question 1: what is your target market?
A1: we are now focusing on Europe and North America.

Question 2: what is the biggest advantage over competitors?
A2: we are one of the most powerful suppliers of vibration Multi Tool saw blades in China. We have our own brand, and we can also customize the brand according to the needs of customers.

Question 3: what about payment and delivery time?
A3: delivery time: within 30 days after receiving the advance payment.
Terms of payment: 50% t / T in advance, 50% against copy of B / L (or other)

Question 4: can I have some samples?
A4: Yes, we are honored to provide you with samples for quality inspection.

Q5: how is your factory doing in quality control?
A5: quality first. From the beginning to the end of production, we always attach great importance to quality control. Every product must be carefully inspected before packing and shipment.

Why choose us?
1. GNG has a strong sales team and rich export experience.
2. The brand of GNG has a long history and its products are rich but not monotonous.
3. The products from GNG have long service life, stable quality and stable beating.
4. High temperature Tools pay more attention to production details, and the packaging is firm and exquisite.
5. GNG supports non-standard customization.
6. GNG has its own strong R & D team and strong innovation ability.
7. Our sales response is accurate, timely, professional and long-term after-sales service.
