Turbo Impact Mill with Grindingmachines for Super Fine Powder Coating

Shandong ALPA Powder Technology Co., Ltd.
  • Coating Agent:Staric Acid
  • Fineness:5~45um
  • Capacity:100~100000kg,H
  • Application:Filler. Coatings
  • Transport Package:Sea Package
  • Specification:flexible arrangement

Base Info

  • Model NO.:RTM
  • Trademark:ALPA
  • Origin:Shandong
  • HS Code:8474209000
  • Production Capacity:1000sets

Description

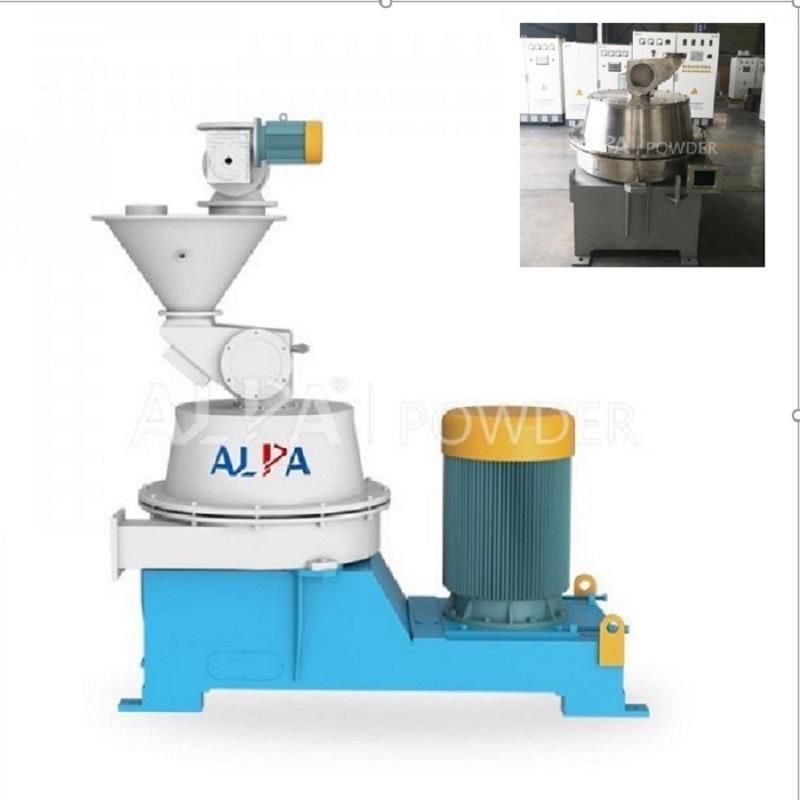

Turbo Impact Mill with Grindingmachines for Super Fine Powder CoatingAvailable D50:1~250μm
 Conic rotor and stator are installed, product fineness and output can be controlled by adjusting the gap between the rotor and the stator
 Large air volume and low grinding temperature, suitable for sensitization of heat sensitive and fibrous materials, uniform product size
 Adjustable the gap between grinding rotor and ring gear, to achieve different grinding force
 Suitable for depolymerizing nano and micron material
 Grinding is in closed system, low dust and noise, clean and environmentally friendly production process
 PLC control system, easy operation
 Explosion-proof design can be selected to meet the requirements of ultra-fine grinding processing of flammable and explosive oxide materials

Turbo Mill Working PrincipleThe material is uniformly fed into the grinding zone by feeding system and strongly impacted by the high-speed rotating grinding disc.

The grinding rotor is composed  of a multi-layer grinding disc and a plurality of grinding blades, the material is subjected to various grinding forces such as shearing, collision, friction etc and finished grinding.

The qualified materials are collected into the collection zone with the ascending airflow, the coarse materials are returned to the grinding zone for secondary grinding.

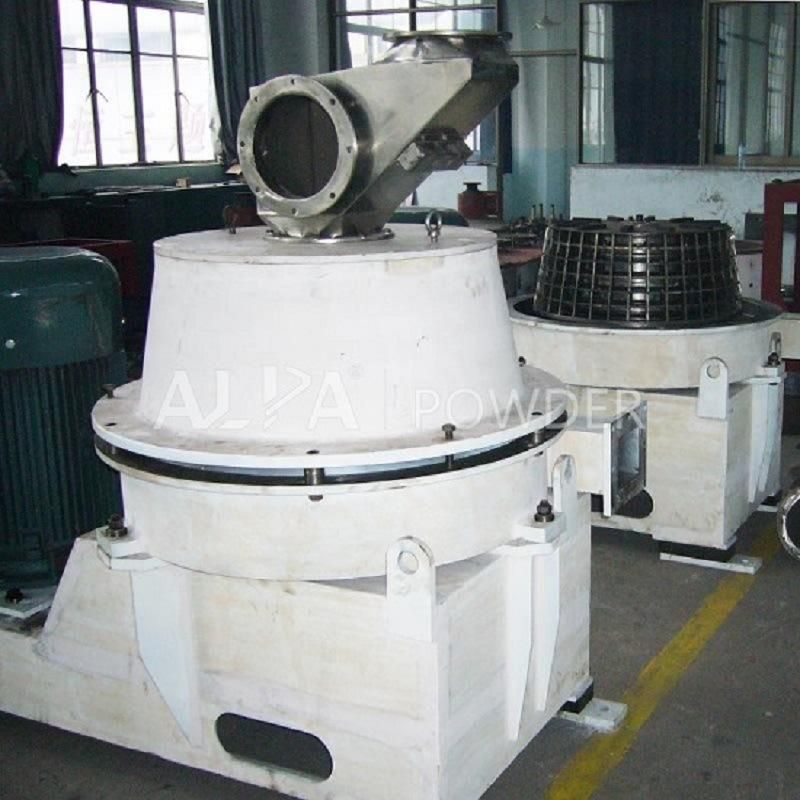

Turbo Impact Mill with Grindingmachines for Super Fine Powder Coating

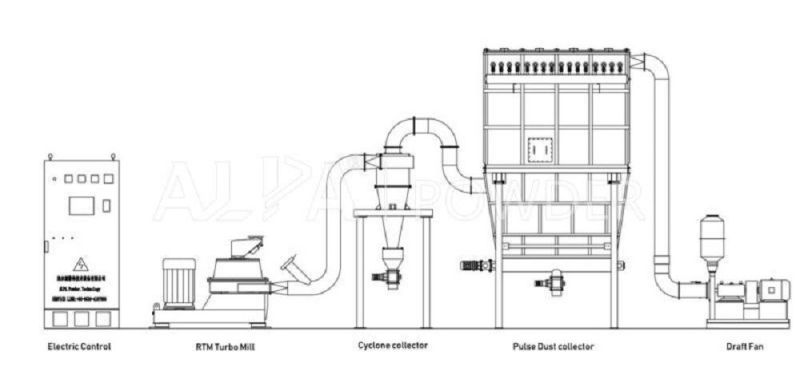

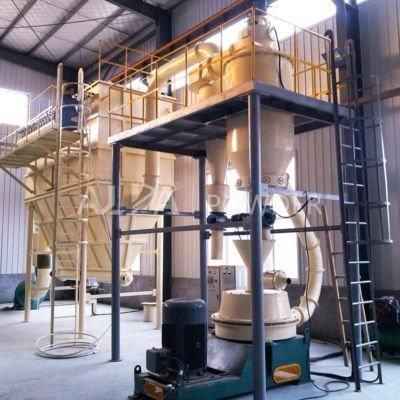

Related Engineering CaseTurbo Impact Mill with Grindingmachines for Super Fine Powder CoatingTurbo Impact Mill with Grindingmachines for Super Fine Powder CoatingShandong ALPA Powder Technology Co., Ltd.(abbreviation: ALPA / Equity Code: 171033) THE WORLD'S LEADING SUPPLIER OFULTRA-FINE POWDER SOLUTIONSALPA was founded in 1999.Focus on ultra-fine ultra-pure crushing and classifying research, powder shape control, powder surface modification, and system integration of powder engineering equipment.
In the fields of ultrafine grinding and classification in the pharmaceutical, food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.Turbo Impact Mill with Grindingmachines for Super Fine Powder Coating
Turbo Impact Mill with Grindingmachines for Super Fine Powder CoatingTurbo Impact Mill with Grindingmachines for Super Fine Powder CoatingWho Choose ALPA
 By 2018, 37 world top 500 companies, 89 Chinese top 500 companies, 169 national key laboratories and engineering technology research centers have selected ALPA.More than 3,000 customers have chosen usTurbo Impact Mill with Grindingmachines for Super Fine Powder Coating
Q: What service do you supply?A: 1). We offer consultancy for project feasibility assessment, process flow definition, preliminary layout and factory building plan, project budget, project time schedule, etc.
2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
3). We supply project engineering, automation engineering and civil engineering.
4). We send engineers to the clients' project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.


Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.
2). We supply one year warranty for all equipment and lifelong after-sales service.
3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.
4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.


Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers.

Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
