• Model NO.：XZ280
• Automation：Semi-automatic
• Layout：Horizontal
• Control：Artificial
• Precision：Normal Precision
• Application：Machinery & Hardware, Art & Craft, Construction, Mineral Industry, Stone Industry
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Engine：Cummins
• Rated Power：160kw
• Overall Weight：12500kg
• Dimension(Lxwxh)：7100* 2260* 2450
• Transport Package：N,P
• Specification：CE
• Trademark：EON
• Origin：Jiangsu, China
• HS Code：84306919
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. XZ280 Automation Semi-automatic Layout Horizontal Control Artificial Precision Normal Precision Application Machinery & Hardware, Art & Craft, Construction, Mineral Industry, Stone Industry Certification API, CCC, UL, SONCAP, GOST, ISO, CE Engine Cummins Rated Power 160kw Overall Weight 12500kg Dimension(Lxwxh) 7100* 2260* 2450 Transport Package N/P Specification CE Trademark EON Origin Jiangsu, China HS Code 84306919 Production Capacity 30 Sets/Month

Product Description

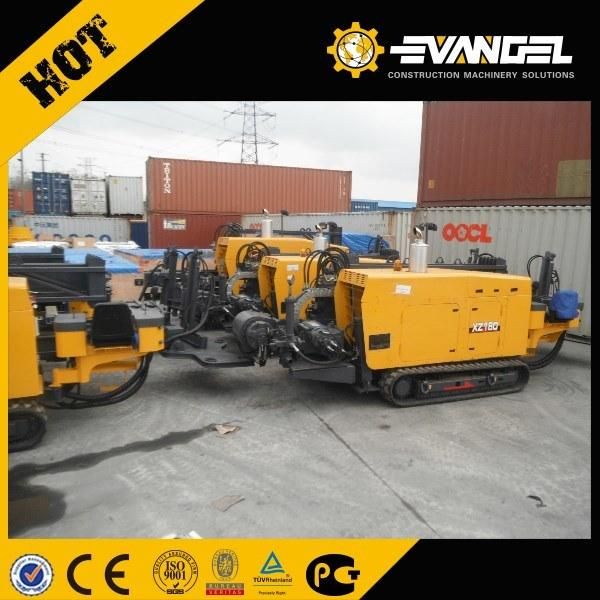

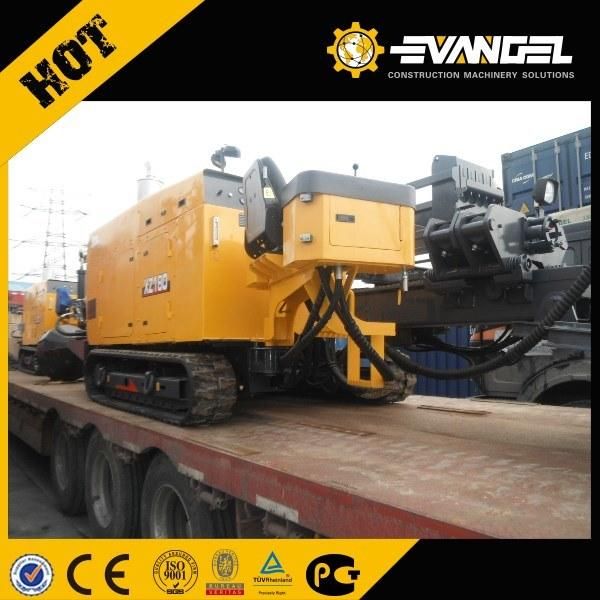

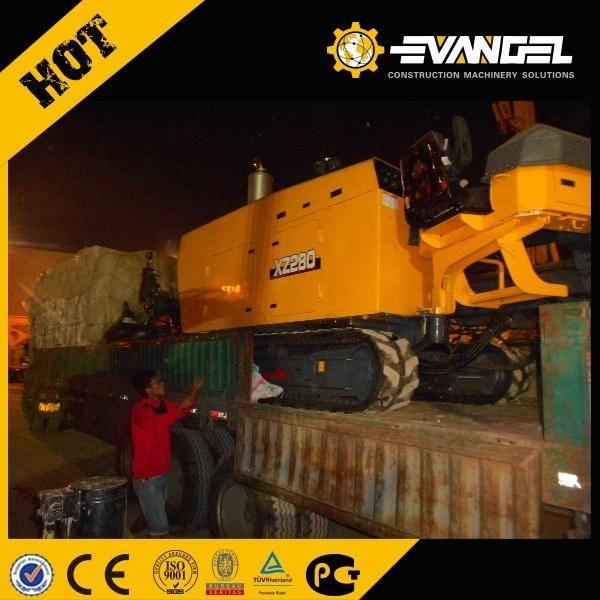

Horizontal Directional Drill XZ280
1. CUMMINS engine
2. Rated Power: 160 kw
3. Pull Force: 280KN
4. Output Torque: 10000N. M
5. Max. Power head speed: 120r/min
6. Operating Weight: 12500kg
7. Dimension(L*W*H): 7100* 2260* 2450mm

Technical Features of XZ280:

@XZ280 adopts many advanced control technologies such as PLC control, electro-hydraulic proportional control, load sensing control, and etc.

@The drilling shaft can be mounted and dismounted automatically, so as to improve the work efficiency and reduce the labour intensity and manual misoperation and thus reduce the work staff and reduce the production cost.

@Automatic anchoring: The hydraulic pressure drives the anchor, which features large anchoring force, simple and convenient operation.

@Dual speed power head: Drilling and dragging at low speed to ensure that it works smoothly; Sliding at quick speed to reduce the auxiliary time and make higher work efficiency during the disassembly of drilling rig with empty load.

@The engine has the feature of turbocharged torque increase, which can increase the power instantaneously when encountering tough terrains to ensure the drilling power.

@The power head features high speed, good boring effect and high efficiency.

@Multiple operation with single handle control, convenient for accurate control, simple and comfortable operation.

@With tethered control, it is safe and efficient for single operator to load and unload the drilling rig.

@The patented float clamp can effectively prolong the service life of the drilling shaft.

@With multiple safety protection functions and the alarming system on the engine and hydraulic parameter, the operator and the machine are safely protected.

Model		XZ280
Engine model		Shangchai
Rated engine power	kW	140
Max. pull/ drill force	kN	280/280
Max. torque of power head	N.m	10000
Revs of power head	r/min	0-120
Max. reaming bore diameter	mm	Φ750
Length of drill shaft (single)	m	3
Diameter of drill shaft	mm	Φ73
Drill angle	°	10-23
Max. slurry flow	L/min	250
Max. slurry pressure	bar	80
Machine weight	kg	12500
Dimension (L×W×H)	mm	7100×2260×2450
